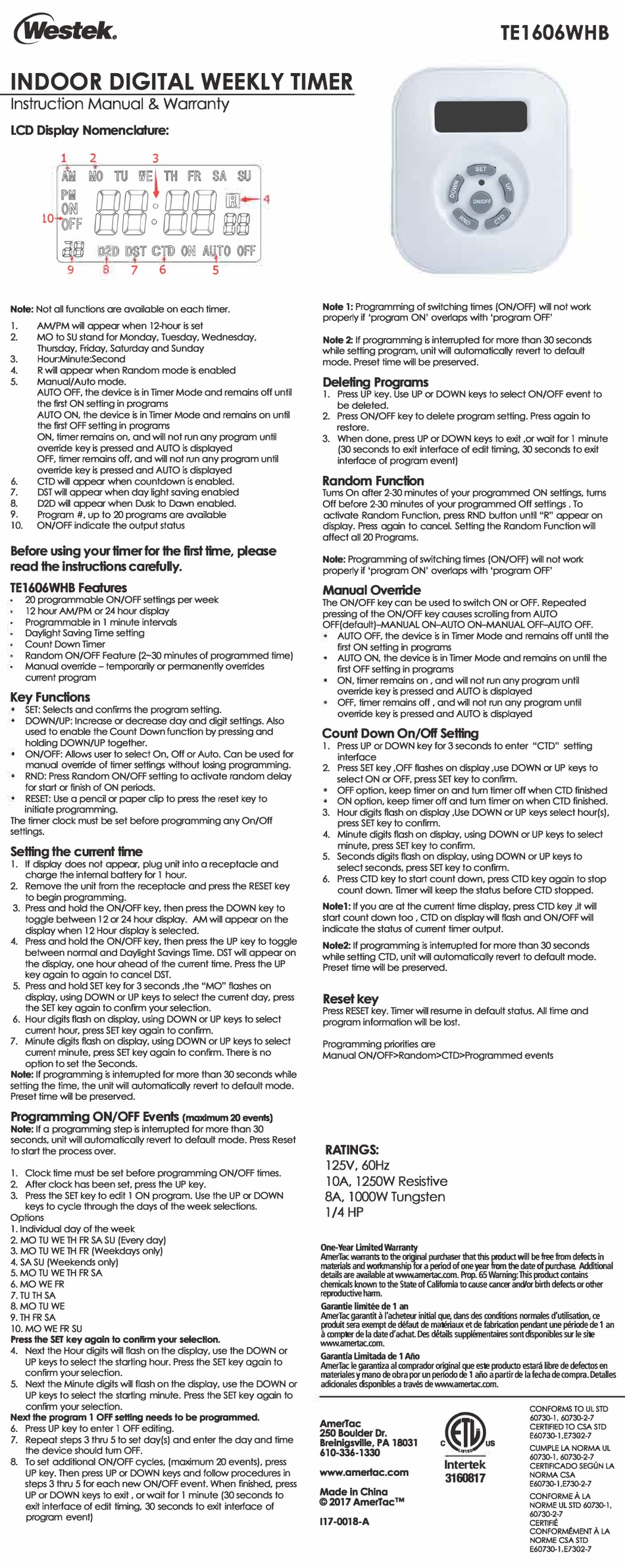

WESTEK TE1606 Instruction Manual

{Westek.
INDOOR DIGITAL WEEKLY TIMER
Instruction Manual
LCD Display Nomenclature:
1 2
Alll ifO TU
dJS:dJS
��f
fB o [[J IQlST tID OIM A JO OFF
Nole: Not all functions are available on each timer.
1. AM/PM will appear when 12-hour is set
2. MO to SU stand for Monday, Tuesday, Wednesday.
Thursday, Friday, Saturday and Sunday
Hour:Minute:Second
3.
R will appear when Random mode is enabled
4.
5. Manual/ Auto mode.
AUTO OFF, the device is in Timer Mode and remains off until
the ON setting in programs
first
AUTO ON. the device is in Timer Mode and remains on unfi
the OFF setting in programs
first
ON, timer remains on, and will not run any program until
override key is pressed and AUTO is displayed
OFF, timer remains
off,
override key is pressed and AUTO is displayed
CTD will appear when countdown is enabled.
6.
7. DSTwil appear when day light saving enabled
8. D2D will appear when Dusk to Dawn enabled.
9. Program#, up to 20 programs are available
l O. ON/OFF indicate the output status
Before using your timer for the first lime, please
read the instructions carefully.
TEl 606WHB Features
20 programmable ON/OFF settings per week
12 hour AM/PM or 24 hour display
Programmable in l minute intervals
Daylight Saving Time setting
Count Down Timer
Random ON/OFF Feature (2-30 minutes of programmed time)
Manual override - temporarily or permanently overrides
current program

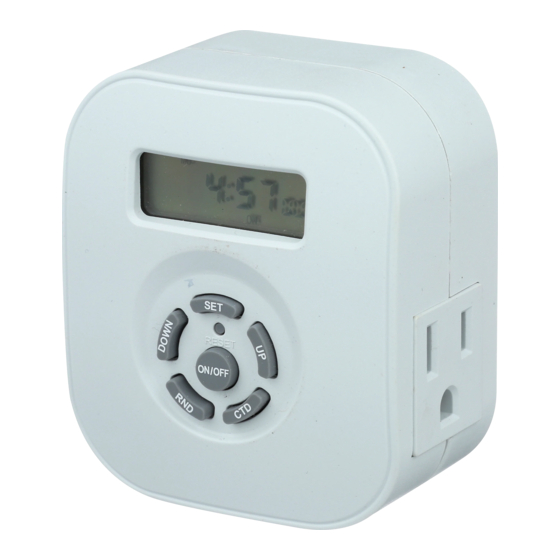

Key Functions
SET: Selects and confirms the program setting.
DOWN/UP: Increase or decrease day and digit settings. Also
used to enable the Count Down function by pressing and
holding DOWN/UP together.
ON/OFF: Anows user to select On, Off or Auto. Can be used for
manual override of timer settings without losing programming.
RND: Press Random ON/OFF setting to activate random delay
for start or finish of ON periods.
RESET: Use a pencil or paper clip to press the reset key to
initiate programming.
The timer clock must be set before programming any On/Off
settings.
Selling the current lime
1. If display does not appear, plug unit into a receptacle and
charge the internal battery for 1 hour.
2. Remove the unit from the receptacle and press the RESET key
to begin programming.
3. Press and hold the ON/OFF key, then press the DOWN key to
toggle between 12 or 24 hour display. AM wiD appear on the
display when 12 Hour display is selected.
4. Press and hold the ON/OFF key, then press the UP key to toggle
between normal and Daylight Savings Time. DST will appear on
the display, one hour ahead of the current time. Press the UP
key again to again to cancel DST.
5. Press and hold SET key for 3 seconds ,the "MO" flashes on
display, using DOWN or UP keys to select the current day, press
the SET key again to confirm your selection.
6. Hour digits flash on display, using DOWN or UP keys to select
current hour, press SET key again to confirm.
7. Minute digits flash on display, using DOWN or UP keys to select
current minute, press SET key again to confirm. There is no
option to set the Seconds.
Note: If programming is interrupted for more than 30 seconds while
setting the tirne, the unit will automatically revert to default mode.
Preset time will be preserved.
Programming ON/OFF Events
Note: If a programming step is interrupted for more than 30
seconds, unit will automatically revert to default mode. Press Reset
to start the process over.
1. Clock time must be set before programming ON/OFF times.
2. After clock has been set, press the UP key.
3. Press the SET key to edit l ON program. Use the UP or DOWN
keys to cycle through the days of the week selections.
Options
l. Individual day of the week
2. MO TU WE TH FR SA SU (Every day)
3. MO TU WE TH FR (Weekdays only)
4. SA SU {Weekends only)
5. MO TU WE TH FR SA
6.MO WE FR
7.TU TH SA
8.MO TU WE
9. TH FR SA
10. MO WE FR SU
Press the SB key again to confirm your selecHon.
4. Next the Hour digits will flash on the display, use the DOWN or
UP keys to select the starting hour. Press the SET key again to
confirm your selection.
5. Next the Minute digits will flash on the display, use the DOWN or
UP keys to select the starting minute. Press the SET key again to
confirm your selection.
Next the program 1 OFF setting needs to be programmed.
6. Press UP key to enter 1 OFF editing.
7. Repeat steps 3 thru 5 to set day(s) and enter the day and time
the device should turn OFF.
8. To set additional ON/OFF cycles, (maximum 20 events), press
UP key. Then press UP or DOWN keys and follow procedures in
steps 3 thru 5 for each new ON/OFF event. When finished, press
UP or DOWN keys to exit , or wait for 1 minute (30 seconds to
exit interface of edit timing, 30 seconds to exit interface of
program event)
Warranty
&
3
r.JE m
TII SA 00
1
��
6
7 5
and wiM not run any program until
(maximum 20 events)
-
Note 1: Programming of switching times (ON/OFF) will not work
properly if 'program ON' overlaps with 'program OFF'
Note 2: If programming is interrupted for more than 30 seconds
whie setting program, unit will automatically revert to default
mode. Preset time will be preserved.
Deleting Programs
1. Press UP key. Use UP or DOWN keys to select ON/OFF event to
be deleted.
2. Press ON/OFF key to delete program setting. Press again to
restore.
3. When done, press UP or DOWN keys to exit ,or wait for 1 minute
(30 seconds to exit interface of edit timing, 30 seconds to exit
interface of program event)
Random Function
Tums On after 2-30 minutes of your programmed ON settings, turns
Off before 2-30 minutes of your programmed Off settings . To
activate Random Function, press RND button until "R" appear on
display. Press again to cancel. Setting the Random Function will
affect all 20 Programs.
Note: Programming of switching times (ON/OFF) will not work
properly if 'program ON' overlaps with 'program OFF'
Manual Override
The ON/OFF key can be used to switch ON or OFF. Repeated
pressing of the ON/OFF key causes scrolling from AUTO
OFF(default)-MANUAL ON-AUTO ON-MANUAL OFF-AUTO OFF.
AUTO OFF, the device is in Timer Mode and remains off until the
first ON setting in programs
AUTO ON, the device is in Timer Mode and remains on until the
first OFF setting in programs
ON, timer remains on , and will not run any program until
override key is pressed and AUTO is displayed
OFF, timer remains off , and will not run any program until
ovenide key is pressed and AUTO is displayed
Count Down On/Off Selling
1. Press UP or DOWN key for 3 seconds to enter "CTD" setting
interface
2. Press SET key ,OFF flashes on display ,use DOWN or UP keys to
select ON or OFF, press SET key to confirm.
OFF option, keep timer on and turn timer off when CTD finished
ON option, keep timer off and tum timer on when CTD finished.
3. Hour digits flash on display ,Use DOWN or UP keys select hour{s),
press SET key to confirm.
4. Minute digits flash on display, using DOWN or UP keys to select
minute, press SET key to confirm.
5. Seconds digits flash on display, using DOWN or UP keys to
select seconds, press SET key to confirm.
6. Press CTD key to start count down, press CTD key again to stop
count down. TI mer will keep the status before CTD stopped.
Notel: If you are at the current time display, press CTD key ,it will
start count down too , CTD on display will flash and ON/OFF will
indicate the status of current timer output.
Note2: If programming is intenupted for more than 30 seconds
whYe setting CTD, unit will automatically revert to default mode.
Preset time will be preserved.
Reset key
Press RESET key. limer wiM resume in default status. All time and
program information will be lost.
Programming priorities are
Manual ON/OFF>Random>CTD>Programmed events
RATINGS:
125V, 60Hz
l 0A, 1250W Resistive
8A, 1000W Tungsten
1/4HP
