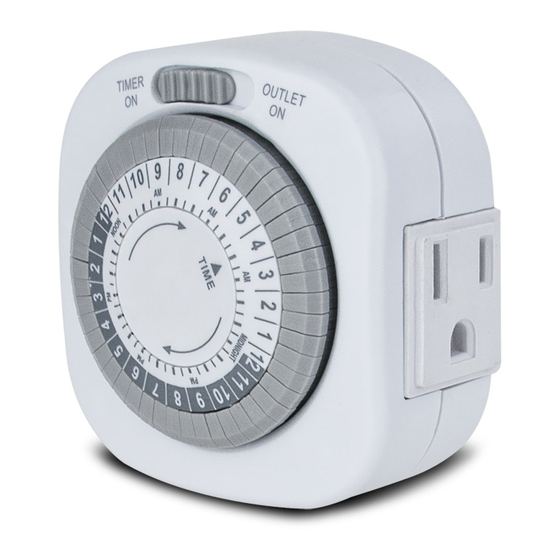

WESTEK TM77DHB Instruction Manual & Warranty

Indoor
Daily Timer
Instruction Manual & Warranty

Setting On/Off Periods

Timer can set up to 48 On/Off commands a day. Using your
finger, pen or screwdriver, pull up all pins that correspond to
desired "Off" time. For desired "On" time, make sure pins
are pushed down.
Each pin represents 30 minutes: 2 pins = 1 hour.

Setting Time

Turn dial clockwise until triangular pointer is pointing at actual
time. Be sure switch on top of unit is set to TIMER ON.

Connection

Once desired On/Off times and actual time are set, plug timer
into wall outlet, and plug appliance(s) into timer. Be sure wall
outlet and appliance are turned on. Timer will start to operate,
turning appliance On/Off according to pre-set commands.

Manual On/Off

Pre-set On/Off commands can be interrupted by using manual
override switch located on top of unit. When switched to
OUTLET ON, connected appliance is switched on permanently.
To reactivate timer's control of applicance, turn applicance switch
on and set timer's override switch to TIMER ON. In case of power
failure, reset timer as explained above.

Specifications:

125V~, 60Hz
15A, 1875W Resistive
10A, 1250W Tungsten
Min. Temperature: 0°
Max. Temperature: 55°

PRECAUTIONS

For indoor use only.
Do not use with any appliance which exceeds capacity
of timer.
Always ensure that appliance plug is fully inserted into timer.
If timer needs cleaning, unplug and wipe with a dry cloth.
Do not immerse in water or any liquid.
FAN HEATERS AND HEATERS WITH EXPOSED ELEMENTS
SHOULD NOT BE CONNECTED TO TIMERS.

Limited One Year Warranty

AmerTac ™ warrants this product to be free from defects in material and
workmanship for a period of one year from the date of purchase. AmerTac's
obligations are limited to repairing or replacing any defective unit and are
effective only if such units are returned within one year of the purchase
date to AmerTac, 250 Boulder Drive, Breinigsville, PA 18031. Warranty void
if damage is due to misuse or improper installation. In no circumstance
will AmerTac be liable for consequential or incidental damages relating in
any way to this product.
Questions?, ¿Preguntas? 201.661.9944
©2010 AmerTac™
250 Boulder Drive
Breinigsville, PA 18031
www.amertac.com
Made in China
Fabriqué en Chine/Hecho en China
TM77DHB
I09-0030-A
