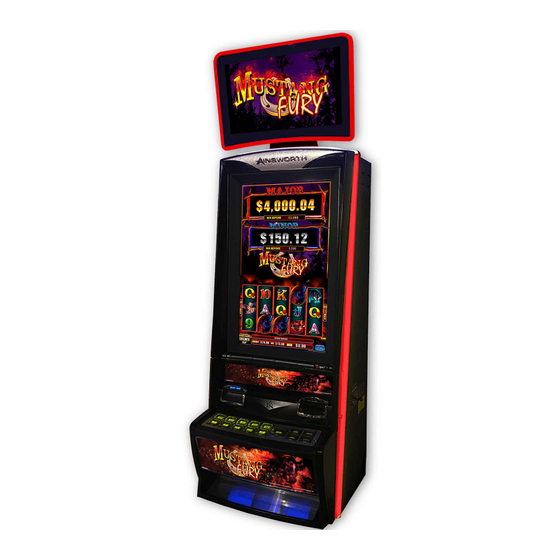

AINSWORTH A560X-S32 Service Manual

Pari-mutuel wagering terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pari-Mutuel
Wagering Terminal
Service Manual
985 103 – 19 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A560X-S32 and is the answer not in the manual?

Questions and answers

Related Manuals for AINSWORTH A560X-S32

Summary of Contents for AINSWORTH A560X-S32

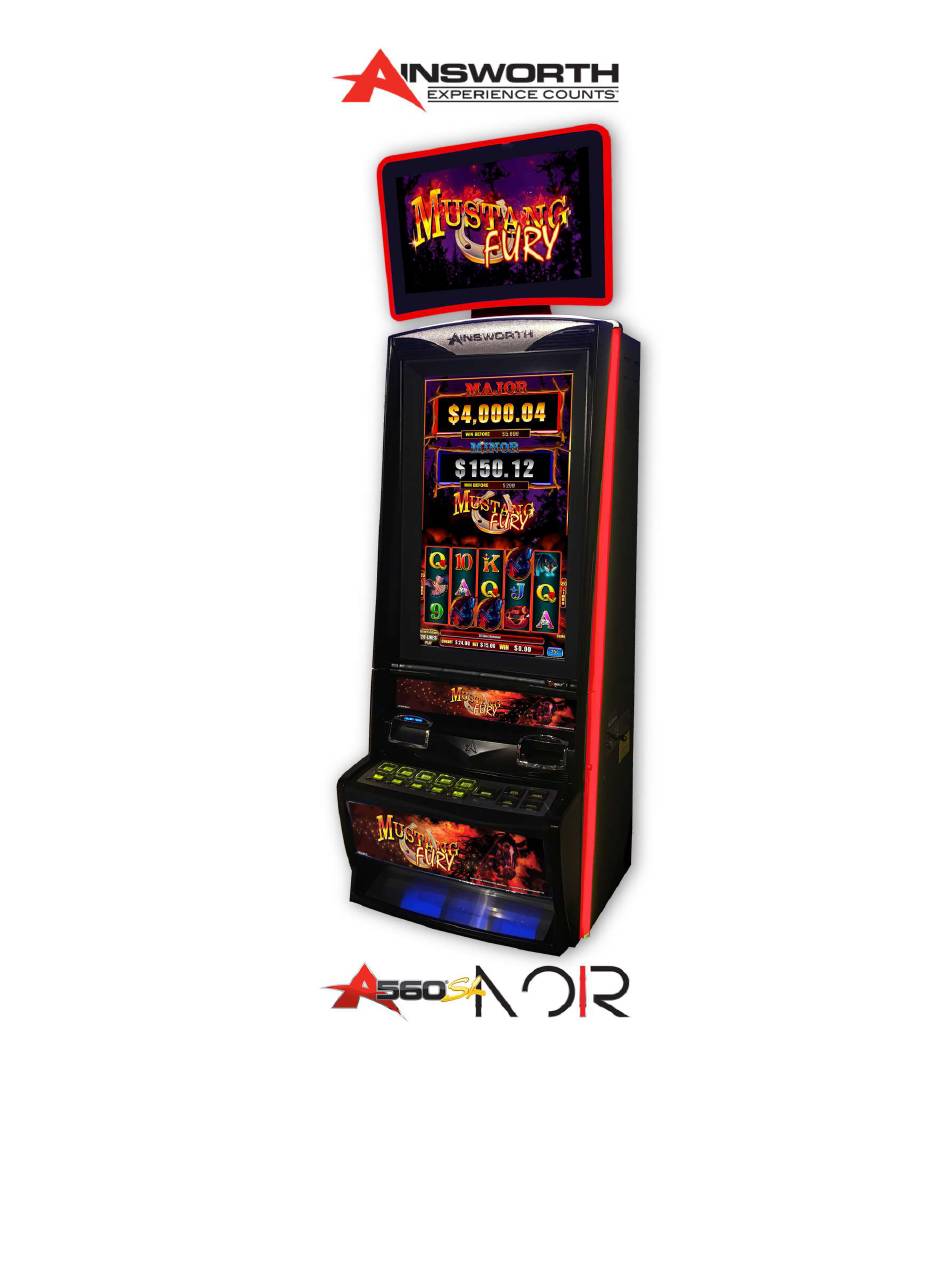

  • Page 1 Pari-Mutuel Wagering Terminal Service Manual 985 103 – 19 Rev A...

  • Page 2: Copyright Information

    985 103 – 19 Rev A COPYRIGHT INFORMATION Ainsworth Game Technology Limited claims copyright on each page of this document. The right to reproduce, distribute, display and make derivative works from this document, or any portion thereof requires approval from Ainsworth Game Technology Limited.

  • Page 3: Table Of Contents

    Chapter 2 Wagering Terminal Installation / Conversions ....................27 Inspection ....................................29 Exterior ....................................29 Interior ....................................29 A560X-S32 Wagering Terminal Mounting Instructions ......................30 Terminal Installation ................................32 Chapter 3 Technician Maintenance and Troubleshooting ....................34 System Maintenance / Audit ..............................35 Bill Acceptor Validator Test ..............................
  • Page 4 Logic Cage and Backplane Board Replacement ........................91 RAM Clear ....................................93 BASE Change ..................................96 Error Messages ..................................98 Troubleshooting ................................... 102 Note Validator Error Display ..............................103 Spare Parts List ................................... 104 A560X-S32 Wagering Terminal Wiring Diagram ......................... 108 Page 4 of 108...

  • Page 5: Introduction

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A INTRODUCTION This Service Manual is intended for use by the appropriate service personnel servicing the approved Historical Horse Racing Pari-Mutuel Wagering Terminal (Wagering Terminal), which is identified on the cover page.

  • Page 6: Chapter 1 Wagering Terminal Physical Components/Basic Operation

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Chapter 1 Wagering Terminal Physical Components/Basic Operation Page 6 of 108...

  • Page 7: Terminal Body Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Terminal Body Assembly The Terminal Body Assembly consists of four major assemblies: The Main Terminal Assembly, the Main Door, the Belly Door Assembly, and the Monitor Door Assembly. There are three lock assemblies mounted on the right side of the terminal.

  • Page 8: Single 32" Monitor Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Single 32” Monitor Assembly The Main Monitor Assembly comprises of a separate Monitor Mask/Door Assembly and the LCD Monitor Assembly. To access the LCD Monitor and the Monitor Control Panel it is required to open the Monitor Door Assembly first.
  • Page 9 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Lift Knob to Unlock Monitor UBA Bill Door. Acceptor. Monitor Door Release Monitor Door Stay. Monitor Door. Single 32” LCD Monitor Assembly. Monitor Door stop. Monitor Door Open Page 9 of 108...
  • Page 10 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Once the Monitor Door Assembly is open the 32” LCD monitor, and Monitor Control Panel can be accessed by swinging the LCD panel open in the same direction as the monitor door assembly as shown below: Monitor Stay on Monitor Door...
  • Page 11 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Monitor Controls Note: The monitor control panel is located at the rear of the LCD assembly on the bottom left hand side and has an LED to show power is applied to the monitor. Monitor Control functions Page 11 of 108...

  • Page 12: Main Door Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Main Door Assembly The Main Door is situated at the front of the Terminal Body and includes the Belly Door Assembly, the Coin Validator and Chute Mechanism, the Chip Tray, the Patron Tracking Module (where fitted) and the speakers.

  • Page 13: Button Panel

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Button Panel The Button Panel consists of illuminated push buttons that the patron uses to interact with the Wagering Terminal. The buttons can be replaced individually, or the buttons may have LED’s or micro switches replaced without the need to replace the entire button.

  • Page 14: Belly Panel Door Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Belly Panel Door Assembly The Belly Panel Door is situated at the front of the Main Door and includes the Button Panel assembly, the Belly Panel Artwork and LED Belly Panel lighting. The Belly Panel assembly is also used to access the BACC Stacker Assembly during cash clearances by venue staff.
  • Page 15 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Belly Panel Door Assembly (Con’t) Button Access to Panel and Stacker Door Backlight through Connector Belly Panel Harness. Door. Belly Door Open Detection Switch. Note Validator Adjustment screw. Button &...

  • Page 16: Internal Components

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Internal Components Monitor Door Speakers. 32” LCD Monitor Assembly. Subwoofer. Monitor Hard Door Meter Assembly. Assembly. Logic Cage Assembly. Power Bill Validator & Switch. Stacker Assembly. Power Supply. Terminal Internal Components Page 16 of 108...

  • Page 17: Note Validator Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Note Validator Assembly Note Validator Diagnostic Note LED’s. Validator. Note Validator locking lever. Note Stacker Note Door Security Housing. Lock. Note Validator Adjustment screw. Note Validator Note Validator The Note Validator receives notes that are entered through the Note Bezel and accepts or rejects notes by testing them.

  • Page 18: Note Stacker

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Note: The Note Validator Head can be separated on a pivot to provide access to clear minor note jam clearances. The Note Validator incorporates an illuminated bezel that indicates to the patron whether the Note Validator can accept notes and a label showing which denominations.

  • Page 19: Printer (Optional)

    985 103 – 19 Rev A Printer (optional) The Printer is an optional device which is fitted to our A560X-S32 Wagering Terminal. The Printer is located beside the Logic Cage and the tickets exit through the top of the main door.

  • Page 20: Patron Tracking Module Provision

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Patron Tracking Module Provision Space is provided above the Note, Printer and Coin in Bezels in the door for a Patron Tracking Module to be fitted. The patron tracking can be mounted on the door or in a tray (preferred). Note: To access this space the Main Door assembly must be open.
  • Page 21 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Mainboard Logic Handle Cage (Pull to Security remove Switch. Mainboard Mainboard Tray. Mainboard Status LEDs. Synergy XLR Logic Cage Security Door Open CFast Card Slots. Synergy XLR Motherboard Front Panel Layout Page 21 of 108...

  • Page 22: Mainboard Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Mainboard Assembly Heat Sink and Fans Assembly. Mainboard Mainboard Tray. Status LEDs Synergy XLR Mainboard Assembly The major circuit boards within the Logic Cage are: Mainboard The Main Board provides the controlling and operating function of the terminal. The CFast Cards and system memory are all fitted to the Main Board and together incorporate the Main Board Assembly.

  • Page 23: Backplane Board

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Backplane Board The Main Board Assembly is connected to the Backplane Board. All peripherals and I/O Devices in turn are also connected to the Backplane Board. In summary the role of the Backplane Board is to link the software to all physical devices.

  • Page 24: Basic Operation

    All game theme displays are for entertainment purposes only. Actual results are determined by the server system and jurisdictional requirements. The A560X-S32 Wagering Terminal has a single 32” LCD Panel and an optional LCD topper display. Page 24 of 108...

  • Page 25: Specifications

    The terminal is 1467 mm high by 589 mm wide by 601 mm deep. It weighs +/- 94 kg. See also Chapter 2: A560X-S32 Wagering Terminal Dimensions. Note: The weight is for the basic configuration only. Where options have been fitted their individual weights must be added.

  • Page 26: Environmental

    This will protect the user, installation technician and the terminal(s) from faulty mains supply. Environmental Standards of Compliance The A560X-S32 Wagering Terminal complies with the mandated standards for the jurisdictions in which it is approved for operation. Page 26 of 108...

  • Page 27: A560X-S32 Wagering Terminal Dimensions

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Chapter 2 Wagering Terminal Installation / Conversions Page 27 of 108...
  • Page 28 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A A560X-S32 Wagering Terminal Dimensions Page 28 of 108...

  • Page 29: Inspection

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Inspection After securing the terminal on its bench, perform a detailed inspection to ensure that the terminal has not sustained any damage during transit. Exterior Carry out a detailed visual inspection of the exterior of the terminal to verify the following: 1.

  • Page 30: A560X-S32 Wagering Terminal Mounting Instructions

    985 103 – 19 Rev A A560X-S32 Wagering Terminal Mounting Instructions The A560X-S32 Wagering Terminal is supplied with an installation kit; some parts in this kit may vary depending on the jurisdiction the terminal is installed in. However, the hardware to bolt the terminal to a base/console will remain the same.
  • Page 31 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A The recommended holes to use for the mounting bolts are as follows: A. The front left mounting hole as you are standing at the front of the terminal. B.

  • Page 32: Terminal Installation

    3. Power on the Wagering Terminal. 4. The Base and TM CF card will now be checked. 5. As the A560X-S32 Wagering Terminal boots up a blue Ainsworth screen will then appear with either of the following messages: NVRAM & E2PROM Cleared – Reset the Dip Switch 1 and 2 to continue.
  • Page 33 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 8. The Wagering Terminal IP Config screen will then be displayed: 9. Connect a keyboard to the USB3.0 port on the A560X-ST Motherboard front panel. Enter the assigned Wagering Terminal Data and Save Settings. Disconnect and remove the keyboard from the USB3.0 port on the A560X-ST Motherboard front panel.

  • Page 34: Chapter 3 Technician Maintenance And Troubleshooting

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Chapter 3 Technician Maintenance and Troubleshooting Page 34 of 108...

  • Page 35: System Maintenance / Audit

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A System Maintenance / Audit This section below describes how the System Maintenance / Audit Mode can be used to further assess various hardware components and peripherals to determine if they are faulty. This is primarily used by technicians to help them isolate any hardware problems with the Wagering Terminal.
  • Page 36 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A At the completion of testing; exit the System Maintenance Menu as follows: 1. Select the INFO TAB at the top of the screen. 2. Select the Exit Maintenance icon to exit the Maintenance mode. This will take you back to the normal Game Display.

  • Page 37: Bill Acceptor Validator Test

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Bill Acceptor Validator Test Use the Bill Acceptor Validator Test to prove the operation of the Bill Acceptor. This test has the advantage that inserted notes are returned when the Reject button is selected and not guided to the stacker.
  • Page 38 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Bill Acceptor / Ticket Test Results Note: Select REJECT to return the Bank Note and not stack it. Select QUIT to exit the Bill Acceptor / Ticket Test Results screen. Page 38 of 108...

  • Page 39: Printer Test

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Printer Test The Printer Test is used to determine if the Printer is acknowledged by the software. It is a basic test that initiates the Printer to print out a test page: Note: Upon entering this page if there is an outstanding fault with the Printer, such as a paper jam for example, it would be reported on screen.
  • Page 40 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Printer Test Results Screen Select OK to exit the Printer Test Results screen. Page 40 of 108...

  • Page 41: Touchscreen Calibration

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Touchscreen Calibration The Touchscreen Calibrate on the Hardware Tab is used to calibrate the Touchscreen. This basic test requires the user to touch squares on the LCD screen and the squares become highlighted indicating where the user has touched.
  • Page 42 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Select EXIT MAINTENANCE, Game will resume: Page 42 of 108...

  • Page 43: Door Switch Test

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Door Switch Test Select the Switches Tab and use the door switch test to check the door interlocks. The display shows the condition of each of the door sensors (the various doors that can be tested are displayed in the screen shot displayed below): Door Switches Status Screen Page 43 of 108...

  • Page 44: Terminal Sha-1 Verification

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Terminal SHA-1 Verification The Terminal SHA-1 Verification allows an operator or a technician to determine the SHA-1 of the installed Game Software, Base Software, and BIOS to compare these against the jurisdictional approval document(s).
  • Page 45 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A SHA-1 Signature Test Results Screen Page 45 of 108...

  • Page 46: General Maintenance

    985 103 – 19 Rev A General Maintenance This section provides information for routine servicing of the A560X-S32 Wagering Terminal. The instructions are limited to those that are deemed appropriate to be carried out on-site with minimum disruption to the terminal operation. More advanced information, and a listing of failure and status messages, can be found at the end of this chapter.

  • Page 47: Note Validator Jam Clearing

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 3. The door opens towards the left, enabling the Note Stacker to be withdrawn as shown: Removing Note Stacker Reverse the procedure to close and lock the Note Stacker Door. Note: If the Note Stacker Door is unlocked and opened while the terminal is on, alarms will sound, and messages will be generated.
  • Page 48 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 2. Open the Note Validator Note Path. This is done by pulling up the lever and lifting the lid of the unit as displayed below. 3. This will open the unit exposing the jammed note. Remove the note to clear the jam. Note Validator Note Path Note Validator Internals 4.

  • Page 49: Note Validator Cleaning

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Note Validator Cleaning The Note Validator may reject notes with increased frequency as deposits on the Validator sensors accumulate. If the Note Validator requires cleaning the following procedures is to be used: Caution: Use a 90% solution of isopropyl alcohol to clean the Coin Validator.
  • Page 50 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Circuit Breaker reset Button A620 Wagering Terminal PSU Side Panel Power Good LED on Backplane Board Page 50 of 108...

  • Page 51: Monitor Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Monitor Assembly The Monitor Controls are mounted on the rear of the 32” LCD Panel. Open the Monitor Door Assembly and swing out the LCD to adjust the Monitor. Monitor Mask Single 32”...

  • Page 52: Monitor Door Opening

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Monitor Door Opening Open the Main Door by rotating the Main Door Lock clockwise and raising the Main Door Release knurled lever. Once the main door is open there is a knurled knob (Monitor Door release) on the R/H side of the bill acceptor head;...
  • Page 53 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Once the Monitor Door Assembly is open the 32” LCD monitor and Monitor Control Panel can be accessed by swinging the LCD panel open in the same direction as the monitor door assembly as shown below: Monitor Stay on Monitor Door...

  • Page 54: Monitor Adjustment

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Monitor Adjustment Illustrated below is the monitors Key Control Board. The Key Control Board is used to fine tune and adjust the monitor. To access the control board the Monitor Door of the unit must be opened. The monitor control panel is located at the rear of the LCD assembly on the bottom left hand side and has an LED to show power is applied to the monitor: The table above explains the function of each button.

  • Page 55: Osd Menu Screens

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A OSD Menu Screens Page 55 of 108...

  • Page 56: Osd Control Functions

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A OSD Control Functions Page 56 of 108...

  • Page 57: Lcd Monitor Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A LCD Monitor Replacement WARNING Check that you have disconnected electrical power from the machine prior to carrying out removal/installation procedures. The 32” LCD monitor operates at very high voltages. Exercise extreme caution when handling the monitor or personal injury may result.
  • Page 58 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A With the harnessing removed; lift the spring clip retaining the top monitor pin to the top monitor hinge ensuring the LCD is fully supported as it will tend to fall away from the terminal as indicated: Monitor Spring Pin.

  • Page 59: Replacing The 32" Lcd Monitor Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Installation 1. Sit the monitor onto the bottom locating pin. 2. Move the top of the LCD assembly towards the terminal and lock the top locating pin into the spring clip on the top monitor hinge.

  • Page 60: Speaker Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Speaker Replacement The main door speakers can be removed and installed by carrying out the following procedure: 1. Unlock and open the Main Door. 2. Power down the Wagering Terminal. 3.

  • Page 61: Speaker Replacement (Con't)

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Speaker Replacement (Con’t) The monitor door speakers can be removed and installed by carrying out the following procedure: 1. Unlock and open the Main Door. 2. Power down the Wagering Terminal. 3.

  • Page 62: Subwoofer Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Subwoofer Replacement The Subwoofer can be removed and installed by carrying out the following procedure: 1. Unlock and open the Main Door. 2. Power down the Wagering Terminal. 3.

  • Page 63: Main Door Sub-Assemblies

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Main Door Sub-Assemblies The following instructions describe removal and installation of Main Door sub-assemblies. Main Door Opening The following procedure details how to open and close the Main Door. Note: If the Main Door is unlocked or opened while the terminal is on, alarms will sound, and messages will be generated.

  • Page 64: Belly Panel Door Assembly

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Belly Panel Door Assembly The Belly Panel Door is situated at the front of the Main Door and includes the Button Panel assembly, the Belly Panel Artwork and LED Belly Panel lighting. The Belly Panel assembly is also used to access the BACC Stacker Assembly during cash clearances by venue staff.
  • Page 65 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Belly Panel Door Assembly (Con’t) Button Access to Panel and Stacker Door Backlight through Connector Belly Panel Harness. Door. Belly Door Open Detection Switch. Note Validator Adjustment screw. LCD Touchscreen with Bash Gas strut on Button or Button Panel...

  • Page 66: Button Panel Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Button Panel Replacement The Button Panel can be removed and installed by carrying out the following procedure. 1. Unlock and open the Main Door and Power down the Wagering Terminal. 2.

  • Page 67: Button Panel Replacement (Con't)

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Button Panel Replacement (Con’t) Button Panel and Backlight Connector Harness Disconnect the Button Panel connector Harness The Button Panel can now be removed Page 67 of 108...

  • Page 68: Button Panel Installation

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Button Panel Installation The Button Panel can be installed by carrying out the following procedure: 1. Open the Belly Door to gain access to the underside of the Button Panel. 2.

  • Page 69: Changing The Artwork In The Belly Panel

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Changing the Artwork in the Belly Panel Changing the Artwork within the Belly Panel is easily done by following these steps: 1. Open the Main Door and power down the Wagering Terminal. 2.

  • Page 70: Led Light Panel Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A LED Light Panel Replacement Changing the LED Light Panel within the Belly Door is easily done by following the steps: 1. Open the Main Door and power down the Wagering Terminal. 2.

  • Page 71: Internal Components Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Internal Components Replacement The following instructions describe replacement of the Coin Hopper, the Note Validator Assembly, the Printer and the Patron Tracking Module. Note Validator Replacement The Note Validator displayed below is a JCM UBA Note Validator. It is a general guide which is common to most Bill Validators.
  • Page 72 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Installation 1. If the Note head was faulty just replace the head and reinsert it back into its housing. 2. Power up the Wagering Terminal. 3. Close the Main door. 4.

  • Page 73: Note Validator Housing Replacement

    985 103 – 19 Rev A Note Validator Housing Replacement The following procedure explains the process for removing the Note Validator Housing including the UBA frame; however, this process is the same for all Note Validators used in the A560X-S32 Wagering Terminal. Removal 1.
  • Page 74 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 7. Next remove the Cashbox Coin Chute by undoing the 8mm bolt fastening it into place; the bolt is accessed via a hole in the bottom of the Note Validator Housing as indicated: Undo the 8mm Bolt fastening the Cashbox Chute through a hole in...
  • Page 75 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 9. Next remove the 1 x screw in the top of the Note Validator Housing fastening the housing to the Terminal Shelf Assembly: The bolt fastening the housing to the PT shelf.
  • Page 76 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 11. The Note Validator Housing can now be removed by lowering it down and sitting it in the base of the terminal so that the JCM UBA harness can be removed before removing it completely from the terminal.

  • Page 77: Note Validator Frame Replacement

    The following procedure explains the process for removing the JCM UBA frame; however, this process is the same for all Note Validators used in the A560X-S32 Wagering Terminal. If the UBA frame is only to be removed the following can be followed: 1.
  • Page 78 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 6. The UBA Frame can now be lifted and forward and then out of the Note Validator Housing while taking care not to damage the Harnessing. 7. Before removing the UBA frame completely the UBA BV harness will need to be removed from the rear of the frame.

  • Page 79: Printer Replacement (If Fitted)

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Printer Replacement (If fitted) A ticket printer is an optional extra. The model of the ticket printer used will also vary according to the market requirements. Illustrated is the Ithaca 950 Ticket printer. Ticket Supply Ticket...
  • Page 80 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Removal The Printer simply rests in its printer housing. It has one plug underneath at the back, which only needs to be detached to remove the complete printer unit (with housing), as indicated: To remove the printer: 1.
  • Page 81 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Removal To remove the printer and housing: 1. Unlock and open the Main Door. 2. Power down the Wagering Terminal. 3. Remove the printer as per the instructions outlined above. 4.

  • Page 82: Patron Tracking Module Fitment

    1. The Patron Tracking Module is a drawer design and it can be assembled on a bench prior to installation into the terminal. 2. Once the components are fastened to the drawer insert the draw into the A560X-S32 Wagering Terminal.
  • Page 83 985 103 – 19 Rev A Power Supply Replacement A560X-S32 Wagering Terminal uses an integrated Universal Power Supply. The power supply is mounted below the Printer and Logic Cage assemblies and is at the rear of the Wagering Terminal as...
  • Page 84 985 103 – 19 Rev A Interface Power Switch Interface Power Circuit Output Breaker Reset Button Mains Power in Connection A560X-S32 Wagering Terminal PSU Side Panel Mains Switch Backplane Connection. Board Power Harness A560X-S32 Wagering Terminal PSU Top Panel Page 84 of 108...
  • Page 85 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Diagnostics To aid in diagnostics the Wagering Terminal Backplane Board has four blue status LED’s, each LED represents a pre-set voltage. The LED’s are (from left to right): +24V, +12V AUX, +12V and 5V. If any of the Status LED’s are dim or not on this may represent a fault on a Power Rail, as indicated: Power Good +24VDC...

  • Page 86: To Install A Power Supply, Follow These Instructions

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Installation To install a power supply, follow these instructions: 1. Disconnect the Wagering Terminal from the Mains Supply. 2. Ensure that the Wagering Terminal Main Power Switch is OFF. 3.

  • Page 87: Fiber Optic Interface, Optional

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Fiber Optic Interface, Optional The Fiber Optic Interface is attached to the left panel of the Wagering Terminal in front of the power supply and below the Ticket Printer shelf location. The Serial Interface Cable connects to the RJ12 connection on the Backplane Board and power is supplied by the Interface Power output Connection on the PSU.

  • Page 88: Mainboard Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Logic Cage Assembly Mainboard Replacement Removal 1. Unlock and open the Main Door to provide access to the Logic Cage. 2. Power down the Wagering Terminal. 3. Break and remove the security tag seal from the Logic Cage and unlock the door. 4.

  • Page 89: Backplane Board Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Backplane Board Replacement Note: This procedure requires extreme care and is a relatively lengthy process. Be sure replacement is required prior to beginning. Removal: 1. Unlock and open the Main Door to provide access to the Logic Cage. 2.
  • Page 90 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A A560X-S32 Wagering Terminal Backplane Board Page 90 of 108...

  • Page 91: Logic Cage And Backplane Board Replacement

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Logic Cage and Backplane Board Replacement This procedure is for when the Backplane Board is still part of the Logic Assembly Note: This procedure requires extreme care and is a relatively lengthy process. Be sure replacement is required prior to beginning.
  • Page 92 Remove this fastener at the rear of the Logic Cage A560X-S32 Wagering Terminal Logic Cage top rear fastener location 4x locating lugs at the top of the logic cage assembly A560X-S32 Wagering Terminal Logic Cage locating lugs 4 x logic...

  • Page 93: Ram Clear

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A RAM Clear The RAM Clear process is only to be performed for a major fault or to change the base/game type. In the event of a major fault turn the Rest/Audit Key to the Audit position to enter the Maintenance Mode: 1.
  • Page 94 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 3. Select the Info Tab. 4. Open the Logic Cage Door. 5. Select the RAM Clear to restart the Wagering Terminal. Page 94 of 108...
  • Page 95 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 6. Select YES to clear Meter 1 & 2 Data, Bill / Ticket Acceptor History, XCredit History History File, and Restart the terminal. 7. Once yes is selected, the machine will reboot, and the logic door may be closed. Page 95 of 108...

  • Page 96: Base Change

    5. Power on the Wagering Terminal. 6. The Base and TM CF card will now be checked. 7. As the A560X-S32 Wagering Terminal boots up a blue Ainsworth screen will then appear with either of the following messages: NVRAM & E2PROM Cleared – Reset the Dip Switch 1 and 2 to continue.
  • Page 97 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 10. The IP Config screen will then be displayed; enter the assigned network data here: 11. Continue with configuring the Wagering Terminal. Page 97 of 108...

  • Page 98: Error Messages

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Error Messages This table is the complete list of error and status messages. The most common causes and remedies are also listed. After clearing faults, use the CREDIT RESET / AUDIT MODE SWITCH to reset the terminal. In the table below, the response “Decision”...
  • Page 99 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A The game object in Clear the NVRAM and reconfigure. If Game Corruption memory is corrupted or is the fault persists, call the not the same as the manufacturer (AGT) configured selection Hard Meter The Hard Meters have...
  • Page 100 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Note Acceptor The Note Stacker has been Check the connectors, or replace Stacker Removed removed or not correctly Stacker or Note Acceptor as required mated in the Note Validator Note Stacker Full The Note Stacker is full, or Check pusher plate, Guides, and...
  • Page 101 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Self-Audit Error Self-Audit Check failed Clear NVRAM Reset the terminal. System Error NVRAM or EPROM is Clear NVRAM corrupted or there is a Game mismatch SYSTEM LOCKUP Program failure Clear NVRAM Ticket Printer The Ticket Printer is not...

  • Page 102: Troubleshooting

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Troubleshooting This table lists problems with operating the terminal. Conditions that may be remedied by actioning on-screen prompts are not included. If the terminal fault remains after carrying out the suggested remedy, consider replacement of the circuit board assemblies within the Logic Cage.

  • Page 103: Note Validator Error Display

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A Note Validator Error Display This table lists the possible causes of errors associated with the Note Validator. Note The rows of LED’s on the illuminated bezel are numbered one through 4. Row one is the row nearest to the front of the terminal, with row four being the furthest.

  • Page 104: Spare Parts List

    985 103 – 19 Rev A Spare Parts List Note: This parts list applies only to the A560X-S32 Wagering Terminal and not all parts listed are available as a spare part. Please check with the Ainsworth Service Store for confirmation.
  • Page 105 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 014189-A DOOR SWICH PLATE 014233-A SPRING, LOWER DOOR LOCK 014251 A560 BELLY DOOR SIDE LOCK ASSY 014257-BCH A560, BELLY DOOR STRIKE PLATE 014262-A A560, OPTIC HOLDER 014440-BCH-A HINGE, BOTTOM DOOR SPLIT CAB. 014549-A 10MM BALL STUD - M6X6 014586-A...
  • Page 106 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 017181-A 32", SUB MOUNTING PLATE 017182-A A560-SL DOOR, TOP CATCH 017184-A A560-SL, HINGE BRACKET 017185-A TOP FASCIA, HINGE PIN 017192-A LOGIC HOUSING MOUNT BUSH 017193-A LOGIC BOX RUBBER STRIP 017248-A LOCKING BAR, SPACER 021059...
  • Page 107 A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A 210893-A 2 PIN LOOP BACK, HARNESS 210964-A A560, OPTIC DETECTOR HARNESS 211244-A A560, OPTIC EMITTER HARNESS 211249-A 32" MODULE, UPPER SPK HARNESS 211256-A A560-SL, LED, TOPPER & LT HAR. 211257-A A560-SL, MONITOR / AUDIO HAR.

  • Page 108: A560X-S32 Wagering Terminal Wiring Diagram

    A560X–S32 Service Manual Pari-Mutuel Wagering Terminal 985 103 – 19 Rev A A560X-S32 Wagering Terminal Wiring Diagram Page 108 of 108...
