AINSWORTH A560X-ST Service Manual

Pari-mutuel wagering terminal
Table of Contents

Advertisement

Pari-Mutuel
Wagering Terminal
Service Manual
985 104 – 19 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A560X-ST and is the answer not in the manual?

Questions and answers

Twan Nguyen
May 21, 2025

What error code 8000.00

1 comments:
Mr. Anderson
May 24, 2025

Error code 8000.00 on the AINSWORTH A560X-ST indicates an "Excessive Meter Increment" error. This occurs when more than $1,000 in coins or $10,000 in notes are inserted into the terminal between two consecutive games. The error must be cleared by an attendant using the Reset key.

This answer is automatically generated

Summary of Contents for AINSWORTH A560X-ST

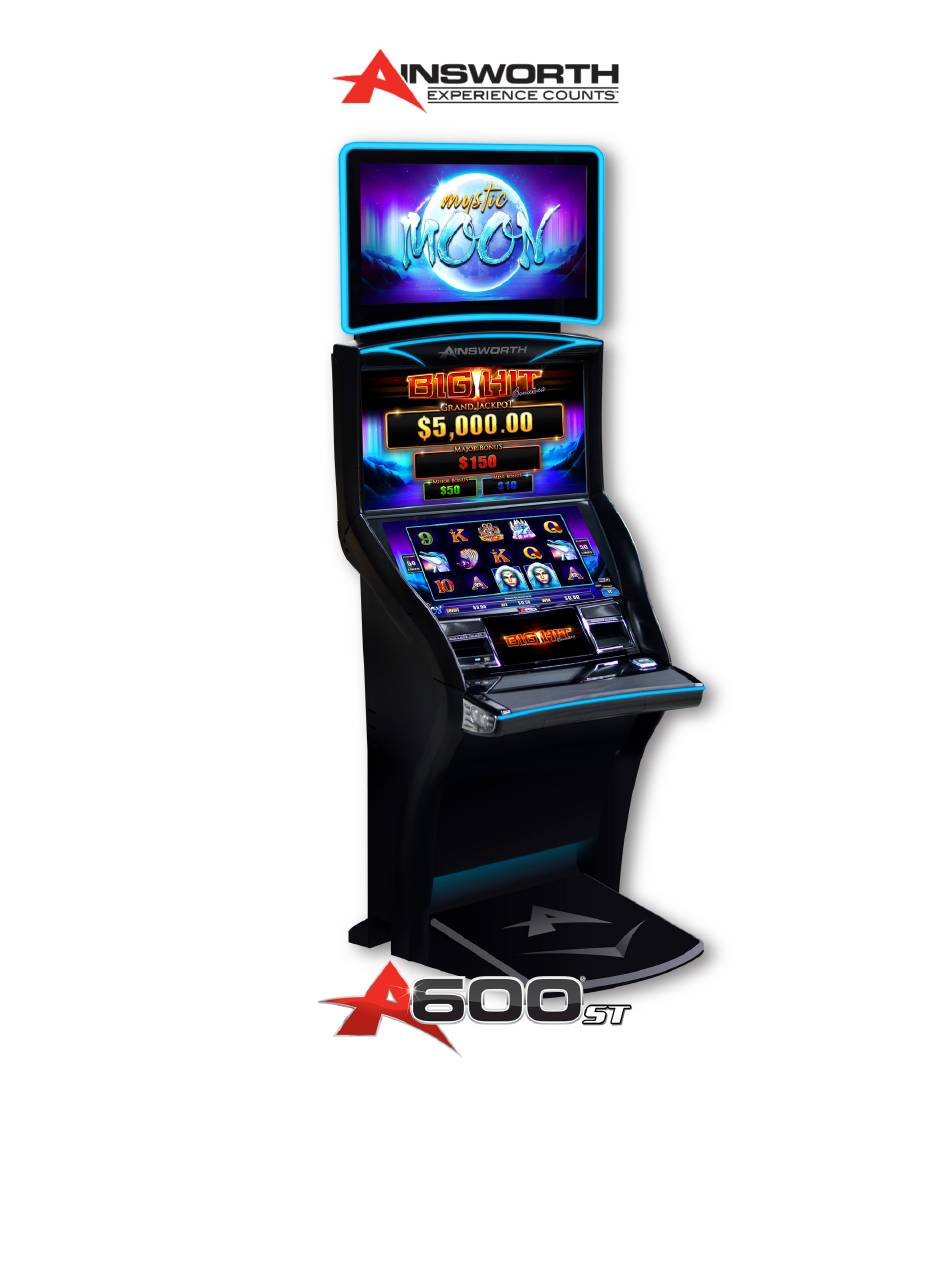

  • Page 1 Pari-Mutuel Wagering Terminal Service Manual 985 104 – 19 Rev A...
  • Page 2: Copyright Information

    985 104 - 19 Rev A COPYRIGHT INFORMATION Ainsworth Game Technology Limited claims copyright on each page of this document. The right to reproduce, distribute, display and make derivative works from this document, or any portion thereof requires approval from Ainsworth Game Technology Limited.
  • Page 3: Table Of Contents

    Chapter 2 Wagering Terminal Installation / Conversions ....................23 Inspection ....................................25 Exterior ....................................25 Interior ....................................25 A560X-ST Wagering Terminal Mounting Instructions ......................26 Terminal Installation ................................28 System Maintenance / Audit ..............................30 Chapter 3 Technician Maintenance and Troubleshooting ....................30 Bill Acceptor Validator Test ..............................
  • Page 4 Note Validator Error Display ..............................107 Spare Parts List ................................... 108 A560X-ST Wagering Terminal Wiring Diagram ........................118 Appendix A A560X-ST Wagering Terminal badged as A600-ST Wagering Terminal ............119 Model Specific changes ............................... 119 New Look Terminal ................................121 Upgraded Features ................................
  • Page 5: Introduction

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A INTRODUCTION This Service Manual is intended for use by the appropriate service personnel servicing the approved Historical Horse Racing Pari-Mutuel Wagering Terminal (Wagering Terminal), which is identified on the cover page.
  • Page 6: Chapter 1 Wagering Terminal Physical Components/Basic Operation

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Chapter 1 Wagering Terminal Physical Components/Basic Operation Page 6 of 123...
  • Page 7: Terminal Body Assembly

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Terminal Body Assembly The Terminal Body Assembly consists of five (5) major assemblies: The Main Terminal Assembly, the Upper Main Door, the Main Door, the Top Monitor Trim Assembly, and the Pedestal Assembly.
  • Page 8: The 24" & 27" Lcd Monitor Assemblies

    The 24” & 27” LCD Monitor Assemblies The A560X-ST Wagering Terminal has two (2) LCD Monitor Assemblies; the top LCD comprises of a Top Monitor Trim Assembly and a frame that includes the 27” LCD Assembly and the monitor control panel.
  • Page 9: Upper Main Door Assembly

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Upper Main Door Assembly The Upper Main Door is situated at the front of the Terminal Body and includes the bottom 24” LCD Monitor Assembly, the Note Validator and Ticket Printer Bezels, the Patron Tracking Module opening (where fitted), a door optic emitter and the speakers.
  • Page 10: Door Optics & Micro Switch

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Speakers Door Optic Emitter Note Validator Ticket Bezel Printer Bezel Player Tracking opening Underside of the Upper Main Door Door Optics & Micro Switch The Door Optics consists of two locations 1. One main door mounted optic and one terminal mounted optic and 2.
  • Page 11: Main Door Assembly

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Main Door Assembly The Main Door is situated below the Upper Main Door and includes the Button Panel, the Main Door Lock and Audit/Reset Key Assembly and a door optic emitter. The Main Door is also used to access the BACC Stacker Assembly during cash clearances by venue staff.
  • Page 12: Internal Components

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Internal Components 27” LCD Monitor Assembly Thermal Ticket Printer 24” LCD Monitor Assembly Power Supply Bill Validator & Stacker Power Assembly Switch Logic Cage Assembly Terminal Internal Components...
  • Page 13: Note Validator Assembly

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Note Validator Assembly Note Validator Diagnostic Note LED’s Validator Note Validator locking lever Note Stacker Note Door Security Housing Lock Note Validator Note Validator The Note Validator receives notes that are entered through the Note Bezel and accepts or rejects notes by testing them.
  • Page 14: Note Stacker

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Note: The Note Validator Head can be separated on a pivot to provide access to clear minor note jam clearances. The Note Validator incorporates an illuminated bezel that indicates to the patron whether the Note Validator can accept notes and a label showing which denominations.
  • Page 15: Printer (Optional)

    985 104 - 19 Rev A Printer (Optional) The Printer is an optional device which is fitted to our A560X-ST Wagering Terminal. The Printer is located beside the Patron Tracking shelf and the tickets exit through the front of the upper main door.
  • Page 16: Patron Tracking Module Provision

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Patron Tracking Module Provision Space is provided between the Note and Printer Bezels on the door for a Patron Tracking Module to be displayed. The Patron Tracking Components are mounted on a tray assembly between the Ticket Printer &...
  • Page 17 985 104 - 19 Rev A Logic Cage Mainboard Security Handle (Pull Switch to remove Mainboard) Compact Mainboard Flash Tray Card Slots Mainboard Status LEDs Logic Cage Security Door Open A560X-ST Wagering Terminal Motherboard Front Panel Layout Page 17 of 123...
  • Page 18: Mainboard Assembly

    Mainboard Tray Status LEDs A560X-ST Wagering Terminal Mainboard Assembly The major circuit boards within the Logic Cage are: Mainboard The main board provides the controlling and operating function of the terminal. The compact flash cards and system memory are all fitted to the main board and together incorporate the main board assembly.
  • Page 19: Backplane Board

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Backplane Board The Main Board Assembly is connected to the Backplane Board. All peripherals and I/O Devices in turn are also connected to the Backplane Board. In summary the role of the Backplane Board is to link the software to all physical devices.
  • Page 20: Basic Operation

    All game displays are for entertainment purposes only. Actual results are determined by the server system and jurisdictional requirements. The A560X-ST Wagering Terminal has a 24” bottom and 27” Top LCD Panel and an optional LCD topper display. Page 20 of 123...
  • Page 21: Specifications

    The terminal is 1550 mm high by 684 mm wide by 722 mm deep. It weighs approximately 110 kg. See also Chapter 2: A560X-ST Wagering Terminal Dimensions. Note: The weight is for the basic configuration only. Where options have been fitted their individual weights must be added.
  • Page 22: Environmental

    This will protect the user, installation technician and the terminal(s) from faulty mains supply. Environmental Standards of Compliance The A560X-ST Wagering Terminal complies with the mandated standards for the jurisdictions in which it is approved for operation. Page 22 of 123...
  • Page 23: Chapter 2 Wagering Terminal Installation / Conversions

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Chapter 2 Wagering Terminal Installation / Conversions Page 23 of 123...
  • Page 24 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A A560X-ST Wagering Terminal Dimensions Page 24 of 123...
  • Page 25: Inspection

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Inspection After securing the terminal on its bench, perform a detailed inspection to ensure that the terminal has not sustained any damage during transit. Exterior Carry out a detailed visual inspection of the exterior of the terminal to verify the following: 1.
  • Page 26: A560X-St Wagering Terminal Mounting Instructions

    This pedestal assembly weighs 10kgs and is an integral part of the A560X-ST Wagering Terminal overall terminal assembly. The pedestal has been designed so that it prevents the A560X-ST Wagering Terminal from rocking, shaking and tipping while also acting as a foot rest assembly for the individual playing the terminal.
  • Page 27 3 x M5 Bolts A560X-ST Wagering Terminal Rear Heel The rear heel is secured with 3 x M5 bolts which fasten it to the rear of the A560X-ST Wagering Terminal pedestal assembly, as shown: Rear heel attached – side view...
  • Page 28: Terminal Installation

    3. Power on the Wagering Terminal. 4. The Base and TM CF card will now be checked. 5. As the A560X-ST Wagering Terminal boots up a blue Ainsworth screen will then appear with either of the following messages: NVRAM & E2PROM Cleared – Reset the Dip Switch 1 and 2 to continue.
  • Page 29 985 104 - 19 Rev A 8. The Wagering Terminal IP Config screen will then be displayed: 9. Connect a keyboard to the USB3.0 port on the A560X-ST Wagering Terminal Motherboard front panel. Enter the assigned Wagering Terminal Data and Save Settings. Disconnect and remove the keyboard from the USB3.0 port on the A560X-ST Wagering Terminal Motherboard front...
  • Page 30: Chapter 3 Technician Maintenance And Troubleshooting

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Chapter 3 Technician Maintenance and Troubleshooting Page 30 of 123...
  • Page 31: System Maintenance / Audit

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A System Maintenance / Audit This section below describes how the System Tests Mode can be used to further assess various hardware components and peripherals to determine if they are faulty. This is primarily used by technicians to help them isolate any hardware problems with the Wagering Terminal.
  • Page 32 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A At the completion of maintenance; exit the Maintenance / Audit Menu as follows: 1. Select the INFO TAB at the top of the screen. 2. Select the Exit Maintenance icon to exit the Maintenance mode. This will take you back to the normal Game Display.
  • Page 33: Bill Acceptor Validator Test

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Bill Acceptor Validator Test Use the Bill Acceptor Validator Test to prove the operation of the Bill Acceptor. This test has the advantage that inserted notes are returned when the Reject button is selected and not guided to the stacker.
  • Page 34 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Bill Acceptor / Ticket Test Results Note: Select REJECT to return the Bank Note and not stack it. Select QUIT to exit the Bill Acceptor / Ticket Test Results screen...
  • Page 35: Printer Test

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Printer Test The Printer Test is used to determine if the Printer is acknowledged by the software. It is a basic test that initiates the Printer to print out a test ticket.
  • Page 36 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Printer Test Results Screen Select OK to exit the Printer Test Results screen Page 36 of 123...
  • Page 37: Touchscreen Test

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Touchscreen Test The Touchscreen Test on the Hardware Tab is used to determine if the LCD Touchscreen is working correctly and if the Touchscreen requires calibrating. It is a basic test that requires the user to touch squares on the LCD screen and the squares become highlighted indicating where the user has touched.
  • Page 38 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Touchscreen Test (continued) Follow on screen instructions for Steps 1, 2 and 3. At the end of Step 3 select the Red X to close the Test Window.
  • Page 39: Door Switch Test

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Door Switch Test Select the Switches Tab and use the door switch test to check the door interlocks. The display shows the condition of each of the door sensors (the various doors that can be tested are displayed in the...
  • Page 40: Terminal Sha-1 Verification

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Terminal SHA-1 Verification The Terminal SHA-1 Verification allows an operator or a technician to determine the SHA-1 of the installed Game Software, Base Software and BIOS and compare these against the jurisdictional approval information.
  • Page 41 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A SHA-1 Signature Test Results Screen Page 41 of 123...
  • Page 42: General Maintenance

    985 104 - 19 Rev A General Maintenance This section provides information for routine servicing of the A560X-ST Wagering Terminal. The instructions are limited to those that are deemed appropriate to be carried out on-site with minimum disruption to the terminal operation. More advanced information, and a listing of failure and status messages can be found at the end of this chapter.
  • Page 43: Note Validator Jam Clearing

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Removing Note Stacker Reverse the procedure to close and lock the Note Stacker Door. Note Validator Jam Clearing To clear jams in the Note Validator use the following procedure. Do not attempt any other maintenance of the Note Validator;...
  • Page 44 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 2. Open the Note Validator Note Path. This is done by pulling up the lever and lifting the lid of the unit as displayed below. 3. This will open the unit exposing the jammed note. Remove the note to clear the jam.
  • Page 45: Note Validator Cleaning

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Note Validator Cleaning The Note Validator may reject notes with increased frequency as deposits on the Validator sensors accumulate. If the Note Validator requires cleaning the following procedures is to be used: Caution: Use a 90% solution of isopropyl alcohol to clean the Coin Validator.
  • Page 46 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Circuit Breaker reset Button A620 Wagering Terminal PSU Side Panel Power Good LED on Backplane Board Page 46 of 123...
  • Page 47: Monitor Assemblies

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Monitor Assemblies The Monitor Controls are mounted on the rear of each LCD Panel. Open each individual monitor assembly to adjust the Monitor. Monitor Trim Assembly 27” LCD...
  • Page 48: Accessing The 24" Lcd Monitor Control Board

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Accessing the 24” LCD Monitor Control Board Open the Main Door by rotating the Main Door Lock clockwise and squeezing the Main Door Release lever located under the button panel assembly on the main door as indicated:...
  • Page 49 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Release the main door assembly Once the main door is open push on the upper main door shroud either side of the LCD to release the upper main door; the upper main door assembly can then be lifted and opened.
  • Page 50 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Upper Main Door 24” LCD Assembly Upper Main Door Open Monitor Control Power LED Panel (Turned Off) 24” LCD Monitor Control Panel Note: The monitor control panel is located on the rear of the LCD assembly on the right-hand side and has an LED to show power is applied to the monitor.
  • Page 51: Accessing The 27" Lcd Monitor Control Board

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Accessing the 27” LCD Monitor Control Board Open the Main Door by rotating the Main Door Lock clockwise and squeezing the Main Door Release lever located under the button panel assembly on the main door as indicated:...
  • Page 52 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Release the main door assembly Once the main door is open; pull on the top monitor trim assembly release lever and at the same time gently pull on the trim assembly pulling it forward towards the front of the terminal.
  • Page 53 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Before completely removing the top monitor trim assembly; disconnect the 2 x harnesses connected to the trim for the LED lighting and the speakers mounted in the shroud, shown below:...
  • Page 54 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A For safety, the top 27” LCD panel assembly rotates on a hinge arrangement and has a gas strut fitted to ensure smooth operation, shown here: Gas Strut DVI and 12volt...
  • Page 55 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A When refitting the top monitor trim assembly; the upper and lower mounting lugs located on the trim must be aligned with the mounting brackets located on either side of the terminal as shown below.
  • Page 56: Monitor Adjustment

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Monitor Adjustment Illustrated below is the monitors Key Control Board. The Key Control Board is used to fine tune and adjust the monitor. To access the control board the Monitor Door of the unit must be opened. The monitor control panel is located at the rear of the LCD assembly on the bottom left hand side and has an LED to show power is applied to the monitor.
  • Page 57: Osd Menu Screens

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A OSD Menu Screens Page 57 of 123...
  • Page 58: Osd Control Functions

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A OSD Control Functions Page 58 of 123...
  • Page 59: Lcd Monitor Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A LCD Monitor Replacement WARNING Check that you have disconnected electrical power from the machine prior to carrying out removal/installation procedures. The 24” & 27” LCD monitors operate at very high voltages. Exercise extreme caution when handling the monitors or personal injury may result.
  • Page 60 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Main Door release lever. Main Door release lever location Release the main door assembly Page 60 of 123...
  • Page 61 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Once the main door is open push on the upper main door shroud either side of the LCD to release the upper main door; the upper main door assembly can then be lifted and opened.
  • Page 62 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A With upper main door open; disconnect the power connector and DVI harness and remove all cable ties fastening the harnesses to the LCD back cover. Power Connector Connector...
  • Page 63 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Disengage the spring clip to release the locking bar L/H side LCD locking bar Disengage the spring clip to release the locking bar R/H side LCD locking bar The LCD will then drop down in the frame assembly and can then be easily slid out and removed.
  • Page 64 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Slide LCD forward for removal 24” LCD Installation Reinstall the 24” LCD monitor in the following steps:  Slide the LCD monitor into the upper main door frame assembly.
  • Page 65 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 27” LCD Removal Open the Main Door by rotating the Main Door Lock clockwise and squeezing the Main Door Release lever located under the button panel assembly, shown below:...
  • Page 66 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Release the main door assembly Once the main door is open; pull on the top monitor trim assembly release lever and at the same time gently pull on the trim assembly pulling it forward towards the front of the terminal.
  • Page 67 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Before completely removing the top monitor trim assembly; disconnect the 2x harnesses connected to the trim for the LED lighting and the speakers mounted in the trim. Top LCD Harness connections Once the harnesses are disconnected the top monitor trim assembly can be lifted off the top of the LCD mounting frame.
  • Page 68 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A For safety, the top 27” LCD panel assembly rotates on a hinge arrangement and has a gas strut fitted to ensure smooth operation. With the LCD in a lowered position disconnect the power connector and DVI harness and remove all cable ties fastening the harnesses to the LCD back cover.
  • Page 69 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Once the power and DVI harnesses are disconnected and the fastening bolts are removed the 27” LCD can be slid out of the frame assembly and removed as shown below.
  • Page 70: Upper Main Door Speaker Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Upper Main Door Speaker Replacement The individual Speakers can be removed and installed by carrying out the following procedure: 1. Unlock and open the Main Door. 2. Power down the Wagering Terminal.
  • Page 71: Subwoofer Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Subwoofer Replacement The Subwoofer can be removed and installed by carrying out the following procedure: 1. Unlock and open the Main Door. 2. Power down the Wagering Terminal.
  • Page 72: Main Door Opening

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Main Door Opening The following procedure details how to open and close the Main Door. Note: If the Main Door is unlocked or opened while the terminal is on, alarms will sound, and messages will be generated.
  • Page 73 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Main Door release lever. Main Door release lever location Release the main door assembly Page 73 of 123...
  • Page 74: Upper Main Door Opening

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Upper Main Door Opening Open the main door is opened as outlined in the section “Main Door Opening”. Push on the upper main door shroud either side of the LCD to release the upper main door; the upper main door assembly can then be lifted and opened.
  • Page 75: Lcd Touchscreen With Bash Button Panel Or Button Panel Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A LCD Touchscreen with Bash Button Panel or Button Panel Replacement The LCD Touchscreen with Bash Button Panel or Button Panel can be removed and installed by carrying out the following procedure: *Please Note* some items are not required to be performed if OLED or LCD Touchscreen panel is installed.
  • Page 76 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Remove the 2x Phillips Head screws on either side of the main door The LCD Touchscreen with Bash Button Panel can now be removed. Page 76 of 123...
  • Page 77: Lcd Touchscreen With Bash Button Panel Or Button Panel Installation

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A LCD Touchscreen with Bash Button Panel or Button Panel Installation The LCD Touchscreen with Bash Button Panel or Button Panel can be installed by carrying out the following procedure: 1.
  • Page 78: Internal Components Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Internal Components Replacement The following instructions describe replacement of the Note Validator Assembly, the Printer and the Patron Tracking Module. Note Validator Replacement The Note Validator displayed below is a JCM UBA Note Validator. It is a general guide which is common to most Bill Validators.
  • Page 79 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Installation 1. If the Note head was faulty just replace the head and reinsert it back into its housing. 2. Power up the Wagering Terminal. 3. Close the Upper Main Door.
  • Page 80: Note Validator Housing Replacement

    985 104 - 19 Rev A Note Validator Housing Replacement The following procedure explains the process for removing the Note Validator Housing including the UBA frame; however, this process is the same for all Note Validators used in the A560X-ST Wagering Terminal. Removal 1.
  • Page 81 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Note Validator Housing Pivot Pins Note Validator Housing Removal 8. The Note Validator harness will need to be removed before the housing can be removed from the terminal.
  • Page 82: Note Validator Frame Replacement

    Note Validator Frame Replacement The following procedure explains the process for removing the JCM UBA frame; however, this process is the same for all Note Validators used in the A560X-ST Wagering Terminal: 1. Unlock and open the Main Door. 2. Push to release and open the Upper Main Door to access the Note Validator.
  • Page 83: Printer Replacement (Optional)

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Printer Replacement (Optional) A ticket printer is an optional component. The model of the ticket printer used will also vary according to the market requirements. Illustrated is the Ithaca 950 Ticket printer:...
  • Page 84 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Removal The Printer simply rests in its printer housing. It has one plug underneath at the back, which only needs to be detached to remove the complete printer unit (with housing).
  • Page 85 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Printer Housing Replacement (Optional) Removal To remove the printer and housing: 1. Unlock and open the Main Door. 2. Push to release and open the Upper Main Door to access the Ticket Printer.
  • Page 86 Remove 4x M5 Bolts to remove A560X-ST Wagering Terminal Patron Tracking Blank Removal Installation 1. The Patron Tracking Module is a drawer design and it can be assembled on a bench prior to installation into the terminal (below): A560X-ST PTM...
  • Page 87 6. Close and lock the 1. Upper Main Door and 2. Main Door. PTM shelf locating grooves PTM panel fastening screw A560X-ST Wagering Terminal PTM drawer in place above the logic cage. A560X-ST Wagering Terminal PTM panel example Page 87 of 123...
  • Page 88: Power Supply Replacement

    985 104 - 19 Rev A Power Supply Replacement A560X-ST Wagering Terminal uses an integrated Universal Power Supply. The power supply is mounted below the Printer and Logic Cage assemblies and is at the rear of the Wagering Terminal. See labelling below:...
  • Page 89 985 104 - 19 Rev A Interface Power Switch Interface Power Circuit Output Breaker Reset Button Mains Power in Connection A560X-ST Wagering Terminal PSU Side Panel Backplane Mains Board Switch Power Connection Harness A560X-ST Wagering Terminal PSU Top Panel Page 89 of 123...
  • Page 90 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Diagnostics To aid in diagnostics the Wagering Terminal Backplane Board has four blue status LED’s, each LED represents a pre-set voltage. The LED’s are (from left to right): +24V, +12V AUX, +12V and 5V.
  • Page 91: Fiber Optic Interface

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Fiber Optic Interface The Fiber Optic Interface is attached to the left panel of the Wagering Terminal in front of the power supply and below the Ticket Printer shelf location.
  • Page 92: Mainboard Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Logic Cage Assembly Mainboard Replacement Removal: 1. Unlock and open the Main Door to provide access to the Logic Cage. 2. Power down the Wagering Terminal. 3. Break and remove the security tag seal from the Logic Cage and unlock the door.
  • Page 93: Backplane Board Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Backplane Board Replacement Note: This procedure requires extreme care and is a relatively lengthy process. Be sure replacement is required prior to beginning. Removal: 1. Unlock and open the Main Door to provide access to the Logic Cage.
  • Page 94 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A A560X-ST Wagering Terminal Backplane Board. Page 94 of 123...
  • Page 95: Logic Cage And Backplane Board Replacement

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Logic Cage and Backplane Board Replacement This procedure is for when the Backplane Board is still part of the Logic Assembly Note: This procedure requires extreme care and is a relatively lengthy process. Be sure replacement is required prior to beginning.
  • Page 96 Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Remove this fastener at the rear of the Logic Cage A560X-ST Wagering Terminal Logic Cage Rear Fastener Location. 4x M5 Nuts to be removed from the roof of the logic cage A560X-ST Wagering Terminal Logic Cage Top Fastener Location.
  • Page 97: Ram Clear

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A RAM Clear The RAM Clear process is only to be performed for a major fault or to change the base/game type. In the event of a major fault turn the Rest/Audit Key to the Audit position to enter the Maintenance Mode: 1.
  • Page 98 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 3. Select the Info Tab. 4. Open the Logic Cage Door. 5. Select the RAM Clear to restart the Wagering Terminal. Page 98 of 123...
  • Page 99 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 6. Select YES to clear Meter 1 & 2 Data, Bill / Ticket Acceptor History, XCredit History History File, and Restart the terminal. 7. Once yes is selected, the machine will reboot, and the logic door may be closed.
  • Page 100: Base Change

    5. Power on the Wagering Terminal. 6. The Base and TM CF card will now be checked. 7. As the A560X-ST Wagering Terminal boots up a blue Ainsworth screen will then appear with either of the following messages: NVRAM & E2PROM Cleared – Reset the Dip Switch 1 and 2 to continue.
  • Page 101 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 10. The IP Config screen will then be displayed; enter the assigned network data indicated below: 11. Continue with configuring the Wagering Terminal. Page 101 of 123...
  • Page 102: Error Messages

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Error Messages This table is the complete list of error and status messages. The most common causes and remedies are also listed. After clearing faults, use the CREDIT RESET / AUDIT MODE SWITCH to reset the terminal.
  • Page 103 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A configured selection manufacturer (AGT) Hard Meter The Hard Meters have Check Security Switch. Adjust or Disconnected been disconnected or are replace loom connection, or swap faulty. the meter PCB...
  • Page 104 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Note Acceptor failure been Repair or replace the Note Validator. Fault detected Note Reset the terminal. Validator. Note Acceptor A Note is jammed in the Clear note path or replace the...
  • Page 105 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Self-Audit Check failed Self-Audit Error Clear NVRAM Reset the terminal. System Error NVRAM EPROM Clear NVRAM corrupted or there is a Game mismatch SYSTEM LOCKUP Program failure Clear NVRAM...
  • Page 106: Troubleshooting

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Troubleshooting This table lists problems with operating the terminal. Conditions that may be remedied by actioning on-screen prompts are not included. If the terminal fault remains after carrying out the suggested remedy, consider replacement of the circuit board assemblies within the Logic Cage.
  • Page 107: Note Validator Error Display

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Note Validator Error Display This table lists the possible causes of errors associated with the Note Validator. Note The rows of LED’s on the illuminated bezel are numbered one through 4.
  • Page 108: Spare Parts List

    985 104 - 19 Rev A Spare Parts List Note: This parts list applies only to the A560X-ST Wagering Terminal and not all parts listed are available as a spare part. Please check with the Ainsworth Service Store for confirmation.
  • Page 109 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 014529 TICKET EXIT - TRIM 014530 TOP MONITOR CHASSIS 014531 PEDESTAL 014533 PEDESTAL DOOR - V2 014534 TOP MONITOR TRIM MONITOR DOOR - OPTO BRACKET WITH 014535 COMPONENTS...
  • Page 110 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 014593 PEDESTAL BASE - ANCHOR COVER 014598 BA - PIVOT MOUNT BRACKET - RH 014599 PRINTER SHELF 014600 TERMINAL BASE BOTTOM 014601 TERMINAL BASE - TOP 014602 TERMINAL BACK AND SIDES...
  • Page 111 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 014621 MONITOR TOP SIDE TRACK-RH 014622 MONITOR TOP SIDE TRACK-LH 014623 MONITOR TOP - SIDE TRACK BRACE 014624 BOTTOM DOOR COVER PLATE 014625 LM LOCKING BAR 014626 BOTTOM DOOR LEVER - COVER PLATE...
  • Page 112 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 014654 BOTTOM DOOR STRUT 014655 BOTTOM MONITOR STRUT 014656 PTM ASSEMBLY RAIL 014657 TRUNKING COVER 014658 TRUNKING COVER - SPRING 014659 BILL ACCEPTOR DOOR SWITCH BRACKET 014660 BILL ACCEPTOR DOOR - LOCK CLIP...
  • Page 113 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 014698 SIDE COVER HINGE - RH 014699 SIDE COVER HINGE - LH 014701 LED RETAINER 014702 BOTTOM SCREEN - CAM LOCK 014704 BOTTOM MONITOR STRUT BRACKET SLANT TOP - TERMINAL - SIDE TRIM -...
  • Page 114 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A SLANT TOP - TERMINAL SIDE TRIM - 014722 OUTER - LH 014723 BOTTOM DOOR - LEVER 014724 BOTTOM DOOR LOCK - LH CAM 014726 BOTTOM DOOR - SECURITY SHIELD...
  • Page 115 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 014767 BOTTOM SCREEN BEZEL BADGE 014768 BOTTOM MONITOR - GLASS PIN 014772 PEDESTAL DOOR SHEETMETAL 014773 PEDESTAL DOOR HINGE - RH 014774 PEDESTAL DOOR HINGE - LH 014775...
  • Page 116 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A GLASS PANEL 021092 TOUCH GLASS - CONTROLLER 025007 SPEAKER 1.2" X 2.8" 030 230-A SX-A560, PROCESSOR ASSY. 170070 POWER SWITCH - MAINS POWER 170118 SMALL BUTTONS 170119 LARGE BUTTONS...
  • Page 117 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A 211232 A560ST Touchscreen harness 211244 OPTO - EMITTER 211300 A560ST Harness, Terminal 211301 A560ST Harness, Lower Door 211302 A560ST PSU Extension Harness 211303 A560ST Monitor Power Harness 211304...
  • Page 118: A560X-St Wagering Terminal Wiring Diagram

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A A560X-ST Wagering Terminal Wiring Diagram Page 118 of 123...
  • Page 119: Appendix A A560X-St Wagering Terminal Badged As A600-St Wagering Terminal

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Appendix A A560X-ST Wagering Terminal badged as A600-ST Wagering Terminal Page 119 of 123...
  • Page 120: Model Specific Changes

    985 104 - 19 Rev A Model Specific changes The A560X-ST Wagering Terminal is being marketed as an A600-ST Wagering Terminal in some jurisdictions; to be able to easily identify the Wagering Terminal as being an A600-ST specific model the following items have been changed: ...
  • Page 121: New Look Terminal

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A New Look Terminal The A600-ST is easily identified by its lack of chrome with all matte black metal work: A600-ST Matte black terminal finish Page 121 of 123...
  • Page 122: Upgraded Features

    A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Upgraded Features The A600-ST now has a USB charging port located on the printer out bezel to allow patrons the added convenience of charging their compatible electronic devices, shown below.
  • Page 123 A560X-ST Service Manual Pari-Mutuel Wagering Terminal 985 104 - 19 Rev A Upgraded Features (Con’t) The A600-ST now also features premium sound with an upgraded subwoofer and amplifier combination: Upgraded subwoofer/ amplifier combination Page 123 of 123...

Table of Contents

Save PDF
