Wiring Diagram - Mitsubishi Electric SLZ Series Technical & Service Manual

Split-system heat pump
Hide thumbs Also See for SLZ Series:
Table of Contents

Advertisement

6

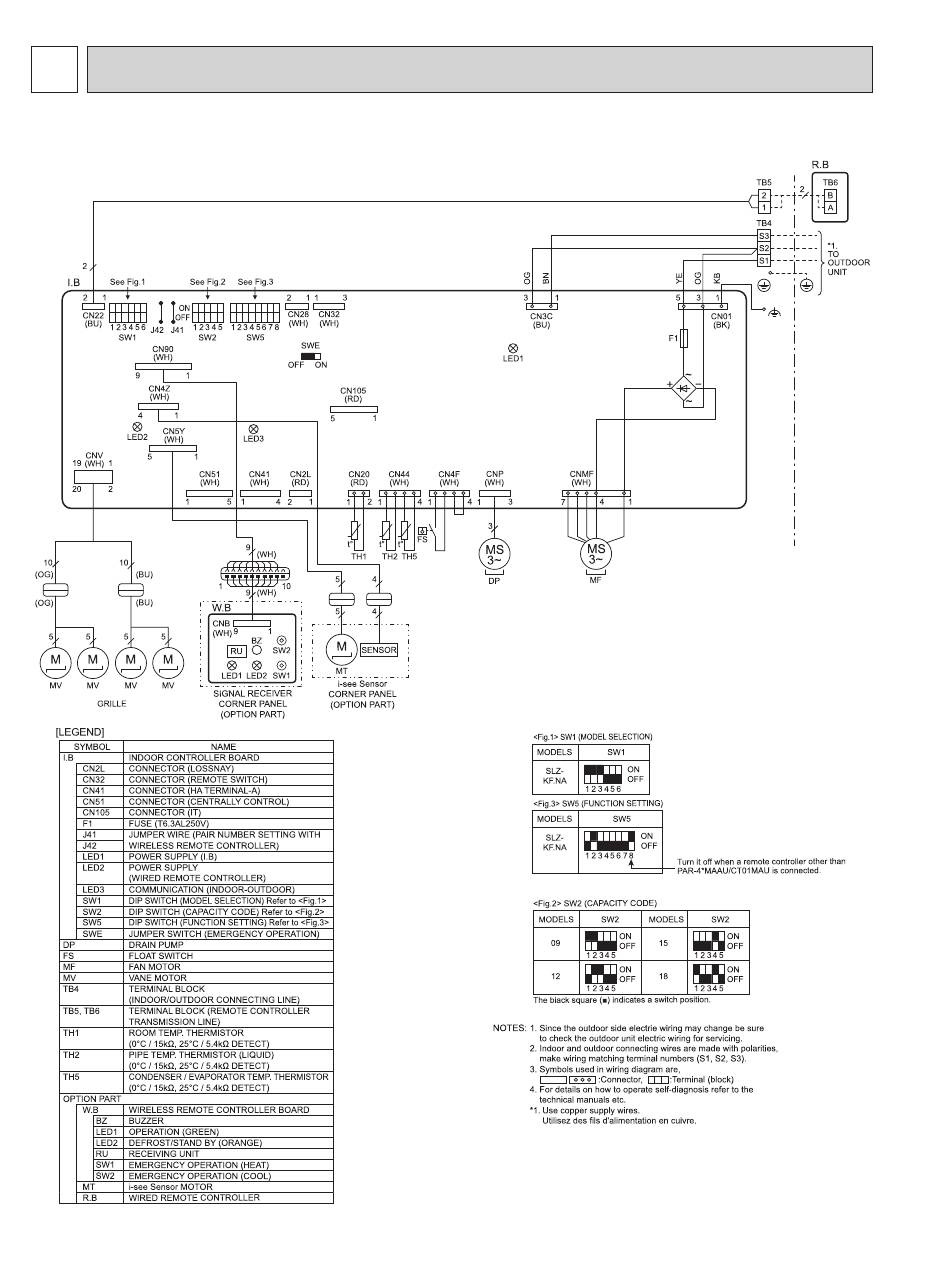

WIRING DIAGRAM

SLZ-KF09NA1　　　　SLZ-KF12NA1　　　　SLZ-KF15NA1　　　　SLZ-KF18NA1
10
TCH118
