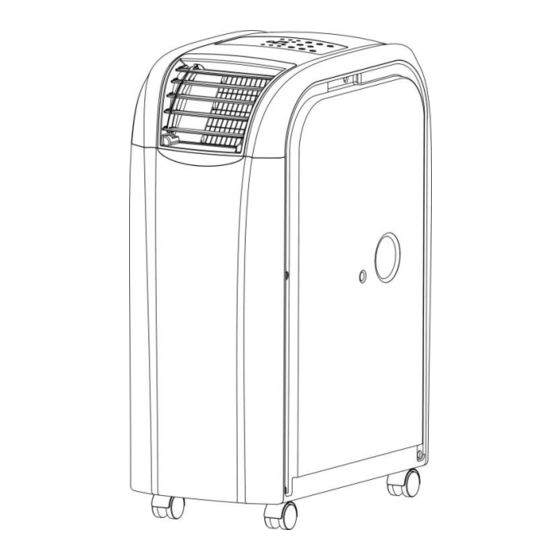

avolta PC26-AMEII User Manual

Hide thumbs

Advertisement

Table of Contents

PC26-AMEII/PC30-AMEII
PC40-AME
USER MANUAL
PORTABLE AIR-CONDITIONER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC26-AMEII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for avolta PC26-AMEII

Summary of Contents for avolta PC26-AMEII

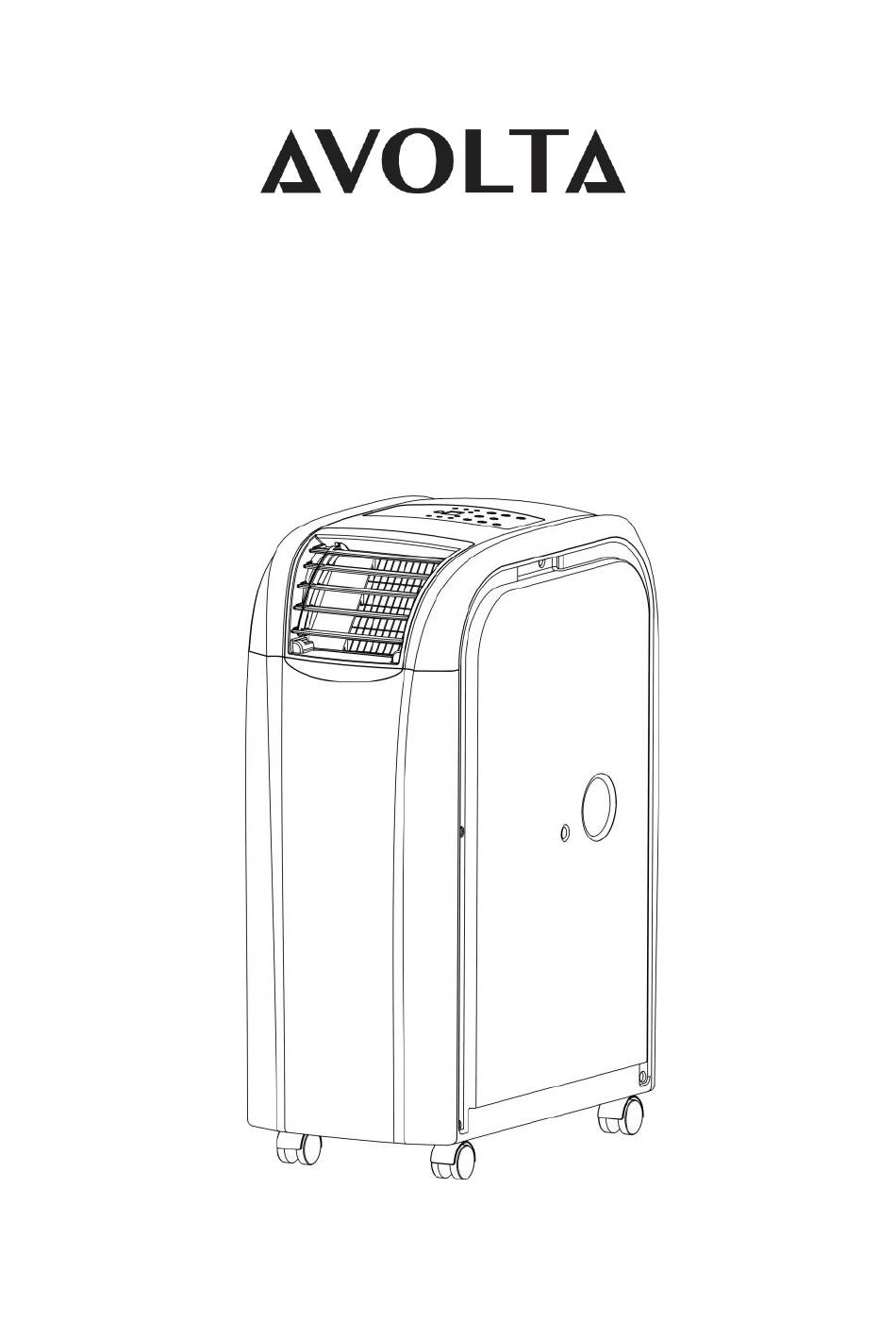

  • Page 1 PC26-AMEII/PC30-AMEII PC40-AME USER MANUAL PORTABLE AIR-CONDITIONER...

  • Page 2: Very Important

    VERY IMPORTANT Please read this instruction guide before install and using your portable air conditioner unit. This instruction manual is the universal-purpose version for the units that you purchase, it might be slightly different from the ones described in the manual, but it does not affect your proper operations and usage.
  • Page 3 9. This unit is for indoor cooling, heating and dehumidifying. 10. When turning on the unit, the fan will operate but the compressor will start up after the cooling alarm flashes for three minutes ● In heating function, the heating alarm will flash for 3.5 minutes before the compressor and fan start up.
  • Page 4 ATTENTION For effective heating and cooling functions, please ensure that the following steps are undertaken: Extend the exhaust hose to a length of not more than 400 mm. The exhaust hose must be kept parallel and must not be bent up or down.

  • Page 5: Unpacking Instructions

    .- Powerful refrigerated air system cools down the ambience instantly whenever you want. - Dehumidified and filtered air cycle improve breathing environments effectively. - Besides the remote control, your one touch electronic pad also provides easy-identifying manual operation. - 24 hour Programmable timer for cooling, heating and dehumidifying functions.

  • Page 6: Name Of The Parts

    NAME OF THE PARTS 1. Control panel 2. Remote control receiver 3. Adjustable air vent 4. Joint tube 5. Exhaust hose 6. Upside drain hole 7. Cool air inlet 8. Cool air filter 9. Hot air inlet 10. Hot air filter 11.

  • Page 7: Control Panel & Description Of Function

    CONTROL PANEL & DESCRIPTION OF FUNCTION POWER KEY Press to turn unit "ON" or "OFF". FUNCTION Press this key to select cooling, heating, or dehumidifying. 3. TEMPERATURE REGULATION KEY (UP) During cooling function：This key raises the preset temperature by 1℃ each time it is pressed and the maximum limit is 30℃.

  • Page 8: Programmable Timer

    4. TEMPERATURE REGULATION KEY (DOWN) During cooling function：This key lowers the preset temperature by 1℃ each time it is pressed and the minimum limit is 17℃. During heating function：This key lowers the preset temperature by 1℃ each time and the minimum limit is 15℃. 5.
  • Page 9 4. You can set the function and fan speed while setting the timer. TIMER-OFF: The timer-off is used to turn off the unit automatically after the setting time is over. 1. Press the "TIMER" key at operating status to set the time you desired. 2.

  • Page 10: Remote Control Function

    REMOTE CONTROL FUNCTION 1. POWER On/Off switch Function “MODE” selector 2. FUNC 3. TIMER Hourly programming 4. AUTO Automatic fan speed 5. HI High fan speed 6. MID Medium fan speed 7. LOW Low fan speed 8. SLEEP Night operation selector 9.

  • Page 11: Maintenance

    NOTICE This unit can evaporate the condensation and distribute through the exhaust hose automatically. 1. When the unit is in the cooling function, it does not need the drain pipe installed. Please make sure that the rubber cap is locked on drain hole, when the unit is running.
  • Page 12 CONDENSER/EVAPORATOR Use a brush attachment with a vacuum cleaner. Casing Wipe with a damp cloth and polish with a soft cloth. To remove the air filter, please follows the arrow direction and pull the filter lightly, and then take out the filter for cleaning.

  • Page 13: Power Supply

    POWER SUPPLY (1) Confirm the correct power. (2) Insert the plug into the outlet firmly In order to prevent any dangerous leakage. (3) Don’t pull power wire by force because it will cause damage to power wire. PLACE FOR USE Because the machine distributes hot air, please don’t place or operate in a narrow place.

  • Page 14: Window Kit Install

    EXHAUST HOSE INSTALL 1. Circumrotate the exhaust hose according to the direction as the arrowhead ① indicates and then the exhaust hose can be took out from the unit. 2. Circumrotate the exhaust hose according to the direction as the arrowhead ② indicates and then make it connect with the unit.

  • Page 15: Troubleshooting

    How to enjoy heating function？ When operating heating function： Disassemble the outlet and the exhaust hose as arrow direction in Fig.01 and then exchange the two subassemblies to install. The finished illustration is as Fig.03. TROUBLE SHOOTING Problem Cause Trouble shooting Electrical short on both Contact an electrician for repair temperature sensor and PCB...

  • Page 16: Specification

    SPECIFICATION Model No. PC26-AMEII PC30-AMEII PC40-AME Power Source 220-240V~50Hz Rated Power (EN60335) Cooling 1100W 1280W 1700W Heating 950W 1100W 1500W Cooling Capacity 2600W 3000W 4000W Heating Capacity 2600W 3000W 4000W Moisture Removed 50liters/day 50liters/day 70liters/day Refrigerant R410A R410A R410A Dimensions (mm)

This manual is also suitable for:

Pc30-ameiiPc40-ame
