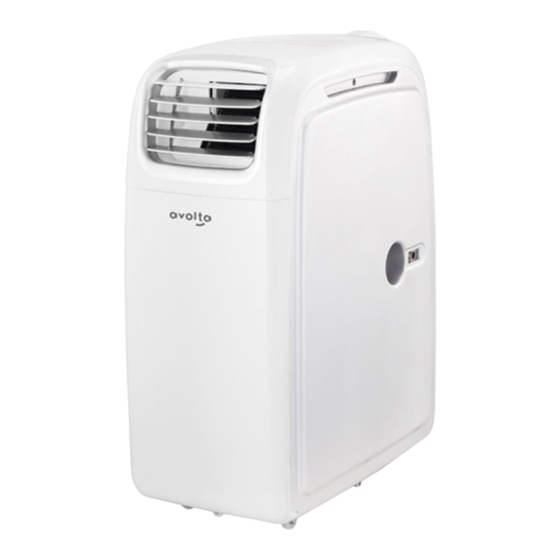

Portable Air-conditioner User's Manual(R290)

Please read this user's manual carefully to ensure proper use, maintenance and

installation

For Model :

A015A-12C

A015A-14C

A015A-16C

Table of Contents

Need help?

Do you have a question about the A015A-12C and is the answer not in the manual?

Questions and answers

Summary of Contents for avolta A015A-12C

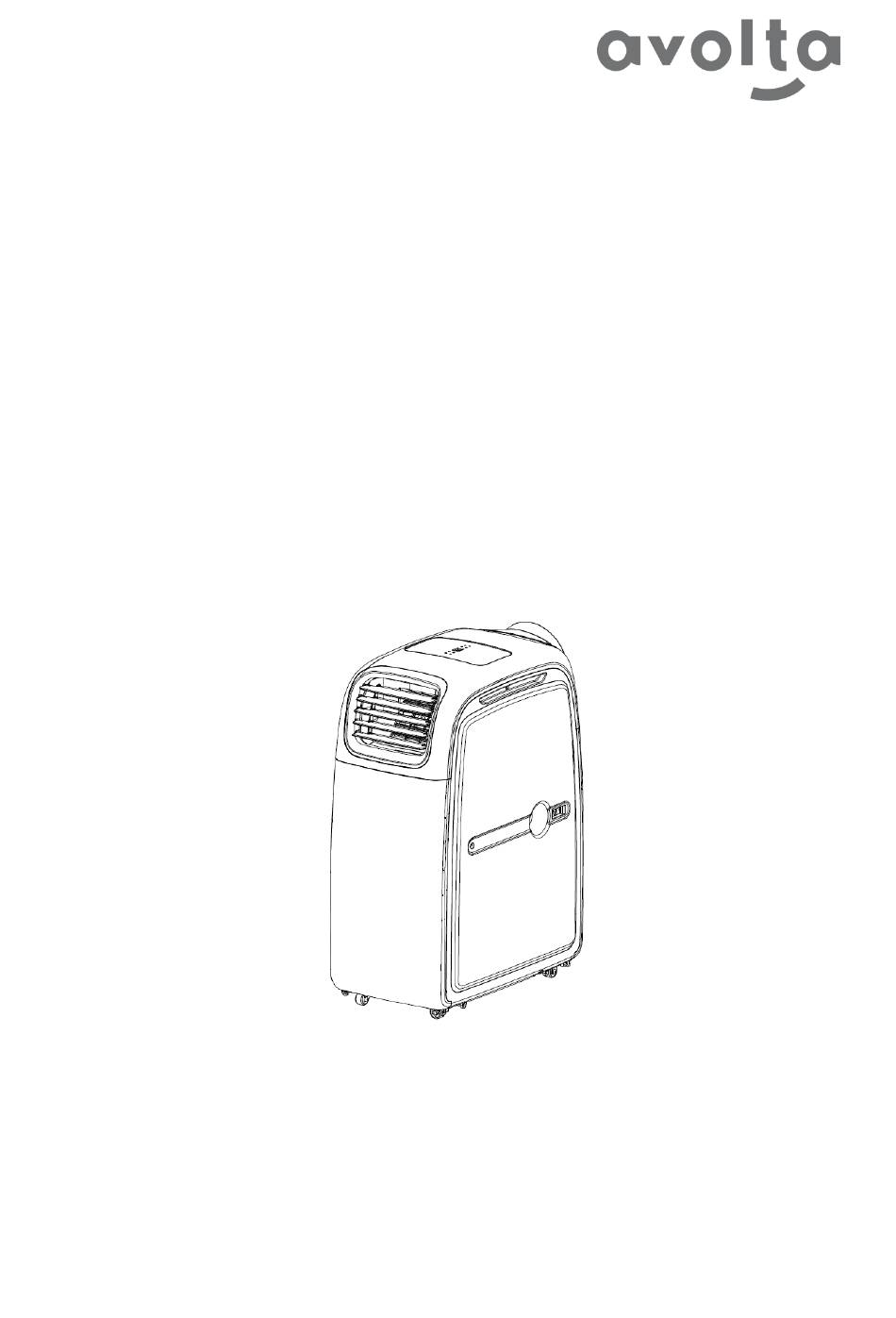

Page 1 Portable Air-conditioner User’s Manual(R290) For Model : A015A-12C A015A-14C A015A-16C Please read this user’s manual carefully to ensure proper use, maintenance and installation...
Page 2: Table Of Contents
Contents 1. Safety Awareness ....................1 2. Name of Parts ....................... 13 3. Accessories ......................13 4. Control Panel & Description of Function ..............14 5. Appearance and Function of Remote Control............17 6. Installation Explanations ..................18 7. Maintenance Explanations ..................19 8.
Page 3: Safety Awareness
1. Safety Awareness 1. Safety Awareness VERY IMPORTANT! Please do not install or use your portable air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference. Warning Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
Page 4  The appliance must be placed in an area without any continuously sources of ignition (for example: open flames , gas or electrical appliances in operation).  Do not puncture and do not burn.  This appliance contains Y g (see rating label back of unit ) of R290 refrigerant gas. ...
Page 5 7. When moving the air-conditioner, always turn off and disconnect the power supply, and move it slowly. 8. To avoid the possibility of fire disaster, the air-conditioner shall not be covered. 9. All the air-conditioner sockets must comply with the local electric safety requirements. If necessary, please check it for the requirements.
Page 6 19. Keep ventilation openings clear of obstruction. 20. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
Page 7 INSTRUCTIONS FOR REPAIRING APPLIANCES CONTAINING R290 1 GENERAL INSTRUCTIONS 1.1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to con-ducting work on the system.
Page 8 accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;...
Page 9 detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. 6 LEAK DETECTION METHODS The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration.
Page 10 recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation.
Page 11 an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process.When oil is drained from a system,it shall be carried out safely.
Page 12 • Check safety equipment before putting into service. c) Repair • Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants. • Ensure sufficient ventilation at the repair place. • Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
Page 13 • Evacuate again. • Cut out the compressor and drain the oil. Transportation, marking and storage for units that employ flammable refrigerants Transport of equipment containing flammable refrigerants Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas.
Page 14 the contract, we reserve the right to make technical changes and we will not notify you before the amendment. Notice before use 1. " PLEASE MAKE SURE THE PRODUCT VENTILATES ALL THE TIME "! Please make sure the inlet and outlet ventilation is not blocked at all times. 2.
Page 15: Name Of Parts
4、Grip the carry handles located on either sides of the unit and carefully lift until it slides out of the foam base. 5、Install the exhaust hose on the unit before operating the unit. 2. Name of Parts 2. Name of Parts 1.
Page 16: Control Panel & Description Of Function
After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual. 4. Control Panel & Description of Function 4. Control Panel & Description of Function 1. POWER 2. TEMP- 3. MODE 4.
Page 17 the machine moves in the lowest refrigeration mode; If "High" is selected, the machine works at the maximum refrigeration capacity, regardless of the setting temperature, Medium or Low. Note: In the dehumidify mode, wind speed is not adjustable, wind speed will be locked in the low wind operation 4.
Page 18 exhaust hose should be placed outside the window so that the hot air can be discharged indoors. 2. Press TEMP(+) or TEMP（-）to adjust the setting temperature, 17-30 ℃. 3. You can choose one of the high,middle or low wind speeds by pressing the wind speed key. CAUTION: To improve the refrigeration capacity of the machine, please note the following: a）If the room is direct sunlight, please draw the curtains.
Page 19: Appearance And Function Of Remote Control
In the dehumidification or heat-making mode, the plug "A" in the drain hole should be removed. Drainage The drain plug "a" in the drainage hole should be removed and an appropriate drainage pipe is installed for continuous drainage. ※Water Full Alarm When the tank is full, the water full indicator is illuminated.
Page 20: Installation Explanations
Notes: - Do not drop the remote control. - Do not place the remote control in a location exposed to direct sunlight. 6. Installation Explanations 6. Installation Explanations About Power (1) Confirm correct use of power: 220-240V/50hz. (2) Separate use of power supply, prohibit the sharing of a socket with other electrical appliances, The power socket specifications should be no less than 10A, and the sockets must be firm and secure.
Page 21: Maintenance Explanations
7. Maintenance Explanations 7. Maintenance Explanations After Sales for Repaired Machines Maintenance Method Unplug the plug before cleaning. Make sure the machine is not energized and avoid accidents before maintenance. Do not use benzene, alcohol and other chemical solvents to clean the surface of the machine.If this is done, the surface of the machine will be scratched, damaged or deformed.
Page 22: Troubleshooting
8. Troubleshooting 8. Troubleshooting Before repairs and after-sale, please look at the following description: Fault Check Measures The machine Does the power supply have Make sure the power supply is doesn't boot. electricity? normal Did you plug it in? Plug in Has the fuse been burnt or shorted? Change the fuse.
