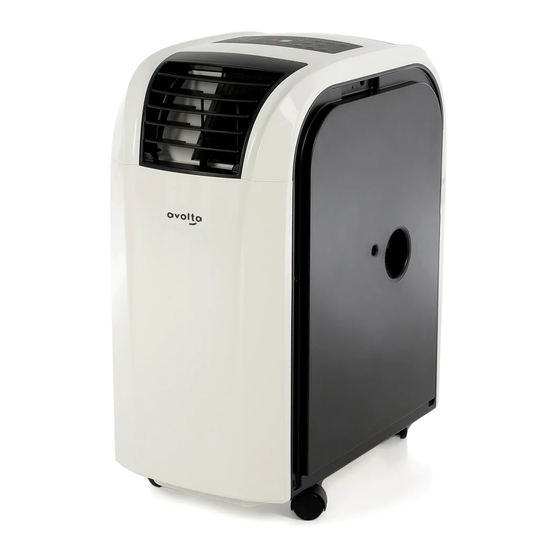

PC20-AMFII / PC30-AMF
PC35-AMF / PC40-AMF
USER MANUAL
PORTABLE AIR-CONDITIONER
VERY IMPORTANT
Please read this instruction guide before install and using
your portable air conditioner unit.
This instruction manual is the universal-purpose version
for the units that you purchase, it might be slightly
different from the ones described in the manual, but it does
not affect your proper operations and usage.
CAUTION
1. " PLEASE MAKE SURE THE PRODUCT
VENTILATES ALL THE TIME "! Please make sure
the inlet and outlet ventilation is not blocked at all
times.
2. Operate this unit on a horizontal surface to avoid
water leakage.
3. Do not operate this unit in an explosive or
corrosive atmosphere.
4. Operate this unit in an ambient of 35 degree
centigrade or less.
5. The heating function of the unit should be operated in
an indoor ambient temperature between 7℃and 23℃
6. Clean air filter periodically to enjoy the most
efficient cooling.
7. When the unit is shut off, please wait at least 3.5
minutes before restarting this is to prevent the
compressor from being damaged.
8. This unit needs at least 7 Amps of electricity to
have its compressor operational. To avoid the
household electricity block out, please do not use
any extension cord for this unit.
1
Advertisement
Table of Contents
Related Manuals for avolta PC20-AMFII
Summary of Contents for avolta PC20-AMFII
- Page 1 This instruction manual is the universal-purpose version for the units that you purchase, it might be slightly PC20-AMFII / PC30-AMF different from the ones described in the manual, but it does not affect your proper operations and usage.
- Page 2 ATTENTION 9. This unit is for indoor cooling, heating and dehumidifying. For effective heating and cooling functions, please ensure that the following steps are undertaken: 10. When turning on the unit, the fan will operate but the compressor will start up after the cooling Extend the exhaust hose to a length of not alarm flashes for three minutes more than 400mm.
- Page 3 NAME OF THE PARTS - Dehumidified and filtered air cycle improve breathing environments effectively. - Besides the remote control, your one touch electronic pad 1. Control panel also provides easy-identifying manual operation. 2. Remote control receiver - 24 hour programmable timer that can be used with either the 3.
- Page 4 CONTROL PANEL & DESCRIPTION OF FUNCTION This key raises the preset temperature by 1℃ each time it is During heating function： pressed and the maximum limit is 25℃. 4. TEMPERATURE REGULATION KEY (DOWN) During cooling function：This key lowers the preset temperature by 1℃ each time it is pressed and the minimum limit is 17℃.
- Page 5 REMOTE CONTROL FUNCTION 2. Once the set hour has come to an end, the unit will turn on automatically. 3. Press the "POWER" key before time out, the setting time will be canceled and the unit will turn on. 4. You can set the function and fan speed while setting the timer. TIMER-OFF: The timer-off is used to turn off the unit automatically after the setting time is over.
- Page 6 CONDENSER/EVAPORATOR NOTICE Use a brush attachment with a vacuum cleaner. This unit can evaporate the condensation and distribute through the exhaust hose automatically. Casing 1. When the unit is in the cooling function, it does not need the drain pipe installed. Wipe with a damp cloth and polish with a soft cloth.
- Page 7 POWER SUPPLY EXHAUST HOSE INSTALL (1) Confirm the correct power. 1. Circumrotate the exhaust hose according to the direction as the arrowhead ① (2) Insert the plug into the outlet firmly In order to prevent any indicates and then the exhaust hose can be took out from the unit. dangerous leakage.
- Page 8 PCB wiring Indicates water tank full User needs to pull out the rubber stopper which is located at the bottom of the unit. SPECIFICATION Model No. PC20-AMFII PC30-AMF PC35-AMF PC40-AMF Power Source 220-240V~50Hz Rated Power (EN60335)
