Home Decorators Collection AVONDALE WICKER FHWS80124 Use And Care Manual

Rectangular lp fire pit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 0000 000 000
Model # FHWS80124
USE AND CARE GUIDE

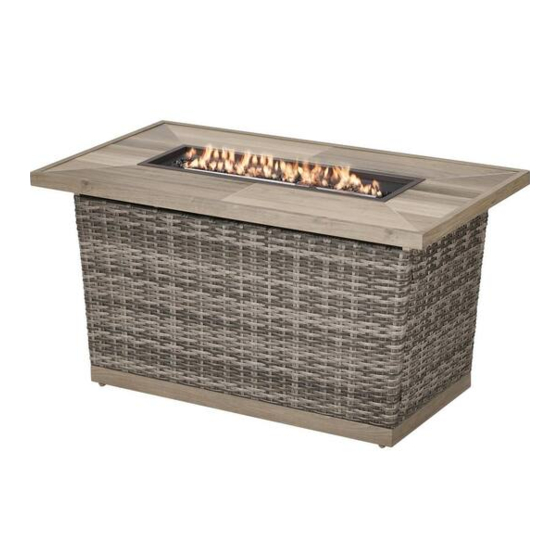

AVONDALE WICKER RECTANGULAR LP FIRE PIT
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire table. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVONDALE WICKER FHWS80124 and is the answer not in the manual?

Questions and answers

Related Manuals for Home Decorators Collection AVONDALE WICKER FHWS80124

Summary of Contents for Home Decorators Collection AVONDALE WICKER FHWS80124

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire table. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 Planning Assembly .
  • Page 3 Safety Information (continued) WARNING: Fire table is for outdoor use only. Installation and repair should be done by a quali ed service person. The appliance should be inspected before use and at least annually by a quali ed service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners and circulating air passageways of the appliance are kept clean.
  • Page 4 Safety Information (continued) The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or safely operate this outdoor fire table. DO NOT use in an explosive atmosphere. Keep gas fire table area clear and free from combustible materials, such as gasoline. This outdoor fire table is not to be installed or used in or on recreational vehicles and/or boats.

  • Page 5: Propane (Lp) Dangers And Warnings

    Safety Information (continued) ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the operations manual will void manufacturer warranty. PROPANE (LP) DANGERS AND WARNINGS LP GAS LP gas is flammable and hazardous if handled improperly. Familiarize yourself with its hazards before using any LP gas product. PROPANE HAZARDS Flammable, explosive under pressure, heavier than air and settles in pools in low areas.

  • Page 6: Hose & Regulator Assembly And Replacement

    Safety Information (continued) HOSE AND REGULATOR ASSEMBLY AND REPLACEMENT This fire table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No. 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and regulator specified by manufacturer can be used for replacement.

  • Page 7: Warranty

    Warranty 1 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, re, freezing and abusive use.

  • Page 8: Hardware Included

    Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 14+1 M6x40 Combination Bolt M6x12 Countersunk Bolt M4x30 Bolt Plastic Washer 1 Plastic Washer 2 Hex Wrench...

  • Page 9: Package Contents

    Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity WARNING: Failure to position the parts in Burner Lid accordance with these diagrams or failure to use only parts speci cally approved with this Table Top appliance may result in property damage or Left Side Panel personal injury.

  • Page 10: Assembly

    Assembly Attaching the Left Side Panel and Right Side Panel to the Table Top NOTE: Pay attention to the direction of control knob and the legs. They must be placed as the step shows. Place the table top (B) upside down on a soft surface. Attach the left side panel (C) and right side panel (D) to the table top (B) using M6x15 combination bolts (AA), as shown below.
  • Page 11 Assembly (continued) Attaching the Limit Tube to the Left Side Panel and Right Side Panel Attach the limit tube (H) to the left side panel (C) and right side panel (D) using M6x15 combination bolts (AA), as shown below. Do not tighten the bolts at this step. NOTE: Loosely tighten all the bolts using hex wrench (GG).
  • Page 12 Assembly (continued) Connecting the Door Turn the re table right side up. Connect the door (E) to the left side panel (C) using M6x12 countersunk bolt (CC) and plastic washers 1 (EE), as shown below. Connect the door (E) to the tank support (G) using plastic washers 2 (FF), as shown below. Tighten the bolts at this step.
  • Page 13 Assembly (continued) Placing the Glass Beads CAUTION: To ensure proper function, the screen on the pilot housing should be free of glass beads. Place the glass beads (I) into the rectangular burner bowl (K). Pilot Housing Burner Tube do not block opening CORRECT INCORRECT...

  • Page 14: Operation

    Operation Installing the LP Gas Tank The LP gas tank must be properly disconnected and removed prior to moving this outdoor re table. CAUTION: Make sure LP gas tank valve is closed. To operate, you will need one precision- lled standard grill LP gas tank with external valve threads. Loosen LP gas tank retainer bolt by turning counterclockwise.
  • Page 15 Operation (continued) Disconnecting the LP Gas Tank NOTE: The LP gas tank must be properly disconnected and removed prior to moving this re table. Before disconnecting make sure the LP gas tank valve is “CLOSED”. Disconnect regulator/hose assembly from LP gas by turning knob conterclockwise until it is loose. Place the protective cap cover on the LP gas tank and store it outdoors in a well-ventilated area out of direct sunlight.
  • Page 16 Operation (continued) Tank/Gas Line Connection Leak Test Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water. Make sure the control knob is in the “OFF” position. Connect LP gas tank per “CONNECTING LP GAS TANK” section. Turn LP gas tank valve to “OPEN”.
  • Page 17 Operation (continued) Closing the Door Close the door (E). Now the re table is complete and ready to use. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 18 Operation (continued) Failure to follow these instructions CAUTION: could cause a fire or an explosion which can cause death, serious bodily injury or damage to property. WARNING: Never light burner with the cover on the outdoor re table. Keep outdoor gas appliance area clear and free from combustible materials, gasoline and other CAUTION: ammable vapors and liquids.
  • Page 19 Operation (continued) LIGHTING (CONTINUED) If igniter does not light burner: a. Wearing heat-resistant gloves, position a long, lit match or long, lit butane lighter near the pilot housing. b. Push and turn control knob to “ON”. c. Remove match/lighter once burner is lit. After lighting, observe the burner flame and make sure all burner ports are lit and flame height matches illustration on page 18.

  • Page 20: Care And Maintenance

    Care and Maintenance Cleaning Surfaces Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing brush. Rinse clean with water. Allow to air dry. Before Storing Turn LP gas tank valve to “CLOSED”.

  • Page 21: Troubleshooting

    Troubleshooting Make sure that the regulator is securely attached to the LP The LP gas tank valve is closed. gas tank per the "Installing the LP Gas Tank" section. Then turn the LP gas tank valve to "OPEN." The LP gas tank is low or empty. Exchange, refill or replace the LP gas tank.
  • Page 22 Troubleshooting Exchange, refill or replace the LP gas tank. The tank is out of gas. Turn control knob to “OFF”. Wait 30 seconds and light the outdoor re table per the “Lighting” section. If flames are still too low, reset the overfilling prevention device: Turn the control knob to “OFF”.
  • Page 23 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
