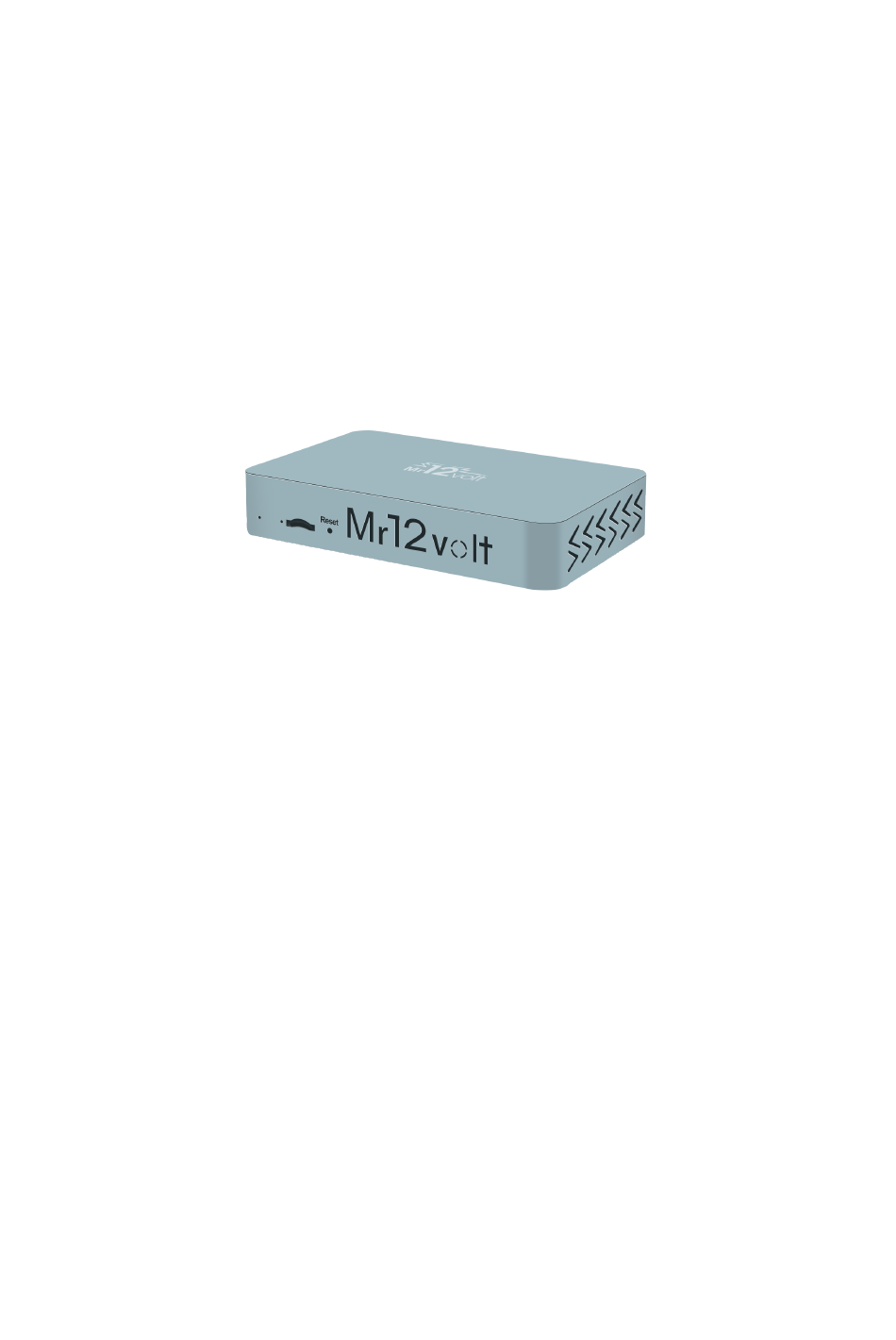

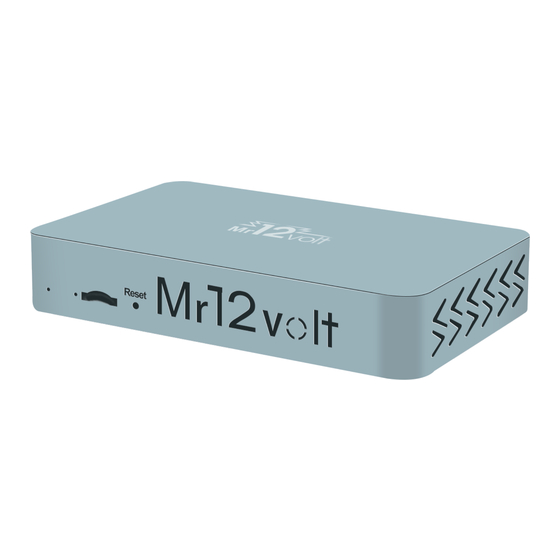

- Page 1 Mr12Volt CarPlay interface for NTG3.5 Quick User Guide Model No : P2000-NTG35MM Ｗ２２１ Ｓ－ｃｌａｓｓ ２００９ － ２０１２ （ｆａｃｅｌｉｆｔ） 1 - All you need to know before Installation 2 - Product Features 3 - Main Feature Operations 4 - Car Settings 5 - Sound Settings 6 - USB Supported Formats & Other Specs...
- Page 2 1 - All you need to know before Installation Mr12volt is selected through TV features of Mercedes NTG3.5 No coding Tools or Factory TV module is needed, once Mr12volt CarPlay module is installed successfully (pressing both "DISC/RADIO" and "RETURN"...
- Page 3 2 - Product Features Music & Video Playback ( Through USB Flash ) CarPlay Android Auto Mirroring Bluetooth HF & Music Streaming Reverse Camera Input ( Support up to AHD720P ) Front Camera Input ...
- Page 4 3 - Main Feature Operations CarPlay/Android Auto Support both wired and wireless CarPlay To connect to CarPlay wirelessly, both Bluetooth and Wi-Fi connection are required For wired CarPlay & Android Auto : Use a genuine cable to connect through the USB/Lightening connector.
-
Page 5: Android Phone
2. Enter Mirroring menu on car display and choose “Android” 3. Network name & Password on phone must be set same as shown on Mr12volt “Mirroring” menu 4. Open M-LInk app-->turn on Bluetooth and Hotspot 5. When both Bluetooth and Hotspot are successfully connected, Phone display will appear on Car Display ... - Page 6 Mercedes-Benz luetooth HF and Mr12volt Bluetooth can be connected at the same time. ( see below picture) When both are connected and a call is received Merced es-Benz HF will take over Mr12volt HF and it can be answered through phone button on steering wheel.
-
Page 7: Car Setting
4 - Car Settings Car Setting “Reverse Camera” settings OE Camera (Default) - Select this when car is fitted with factory camera AfterMarket 360 - Select this when car is installed with a aftermarket camera ( support up to AHD720 only) “Reverse condition”... - Page 8 When do i select “Reverse State” ? Mr12volt detects Car CAN bus with most of the car models in the market, however in some cases particularly in older generation cars, when CAN bus can’t be detected, it is necessary to manually detect camera through car reverse light signal.
-
Page 9: Sound Settings
5 - Sound Settings Sound Settings DSP Built-In Bass / Mid / Treble level adjustment with 15 bars customization Factory default at Flat... -
Page 10: Other Data
6 - USB Supported Formats & Other Specs Music and Video Playback File Format USB file format FAT32 Support USB2.0 , Hard disk memory Supported music format : MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, Supported video format : mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob ...
