Mr12Volt MOST CarPlay interface for BMW CIC
Quick User Guide
Model No : P2000-CICMD
1 - All you need to know before Installation
2 - Product Features
3 - Main Feature Operations
4 - Car Settings
5 - Sound Settings
6 - USB Supported Formats & Other Specs
7 - FAQ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2000-CICMD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mr12volt P2000-CICMD

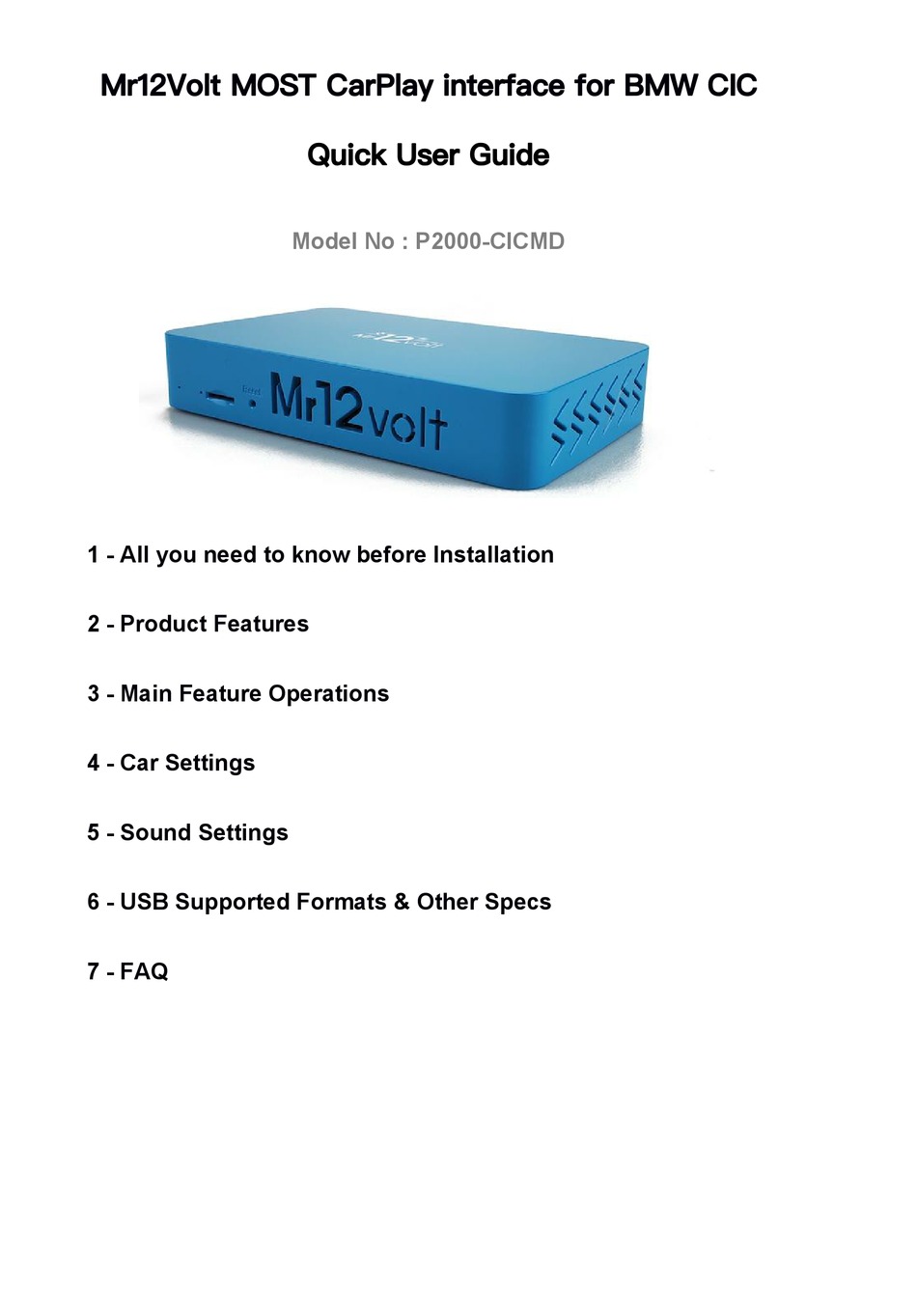

  • Page 1 Mr12Volt MOST CarPlay interface for BMW CIC Quick User Guide Model No : P2000-CICMD 1 - All you need to know before Installation 2 - Product Features 3 - Main Feature Operations 4 - Car Settings 5 - Sound Settings 6 - USB Supported Formats &...
  • Page 2 1 - All you need to know before Installation  Mr12volt interface emulates CD changer function of a BMW radio and is connected through MOST bus of its function. Once successfully installed, CD1 will appear and operate within. (Picture illustrated above) ...
  • Page 3: Product Features

    2 - Product Features  CarPlay  Android Auto  Mirroring  Music & Video Playback ( Through USB Flash )  Bluetooth HF & Music Streaming  Reverse Camera Input ( Support up to AHD720P )  Front Camera Input ...
  • Page 4 3 - Main Feature Operations CarPlay/Android Auto  Support both wired and wireless CarPlay connection  To connect to wireless CarPlay, both Bluetooth and Wi-Fi connection are required  For wired CarPlay & Android Auto : Use a genuine cable to connect through the USB / Lightening connector.
  • Page 5: Android Phone

    2. Enter Mirroring menu on car display and choose “Android” 3. Network name & Password on phone must be set same as shown on Mr12volt “Mirroring” menu 4. Open MLInk app-->turn on Bluetooth and Hotspot 5. When both Bluetooth and Hotspot are successfully connected, phone display will appear on the car Display ...
  • Page 6  Mr12volt does not support the integration of OEM microphone even with the installation of a Y-cable. if you need to use Mr12volt HF or Voice Command such as Siri, the 3.5mm jack microphone supplied in the package must be installed.
  • Page 7: Car Setting

    4 - Car Settings Car Setting “Reverse Camera” settings  OE Camera (Default) - Select this when car is fitted with factory camera  AfterMarket 360 - Select this when car is installed with a aftermarket camera ( support up to AHD720 only) “Reverse condition”...
  • Page 8 When do i select “Reverse State” ? Mr12volt detects car CAN bus with most of the car models in the market, however in some cases particularly in older generation cars, when a CAN bus can’t be detected, it is necessary to manually detect camera through car reverse light signal.
  • Page 9: Sound Settings

    5 - Sound Settings Sound Settings  DSP Built-In  Bass/Mild/Treble level adjustment with 15 bars customization  Factory default at Flat...
  • Page 10: Other Data

    6 - USB Supported Formats & Other Specs Music and Video Playback File Format  USB file format FAT32  Support USB2.0 , Hard disk memory  Supported music format : MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE,  Supported video format : mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob ...
  • Page 11 Mr12volt instead of the microphone in the package. ? A: NO, Mr12volt does not support the integration of OEM microphone even with the installation of a Y-cable. if you need to use Mr12volt HF or Voice Command such as Siri, the 3.5mm jack microphone supplied in the...
