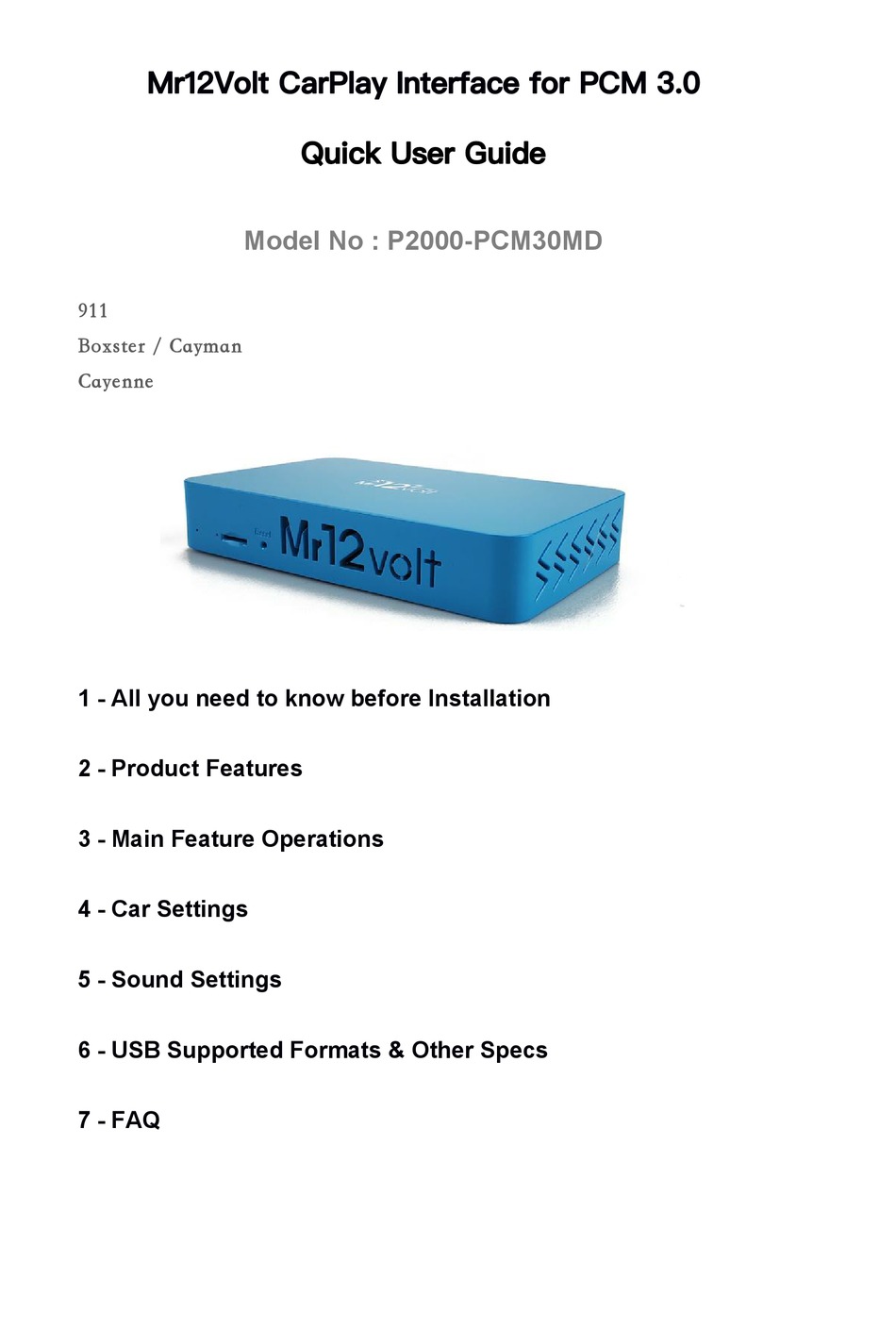

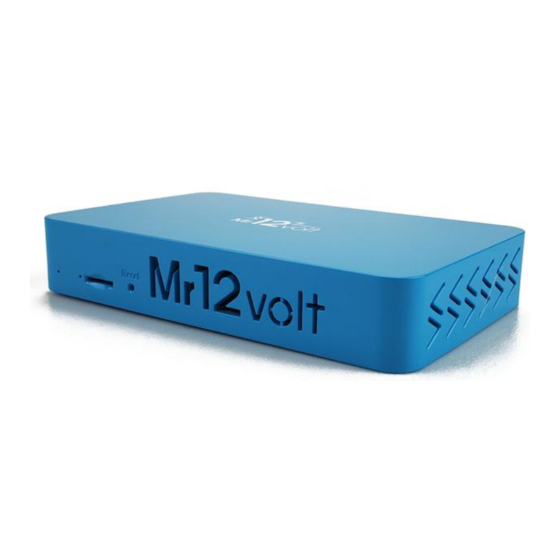

- Page 1 Mr12Volt CarPlay Interface for PCM 3.0 Quick User Guide Model No : P2000-PCM30MD Boxster / Cayman Cayenne 1 - All you need to know before Installation 2 - Product Features 3 - Main Feature Operations 4 - Car Settings 5 - Sound Settings 6 - USB Supported Formats &...
- Page 2 Mr12volt interface emulates factory TV function of a Porsche PCM radio and is connected through MOST bus of its function. No coding of factory TV module is needed, once Mr12volt module is successfully installed and connected to the PCM radio, the “TV” option will be available in the “Tuner”...
-
Page 3: Product Features
2 - Product Features CarPlay Android Auto Mirroring Music & Video Playback ( Through USB Flash ) Bluetooth HF & Music Streaming Reverse Camera Input ( Support up to AHD720P ) Front Camera Input ... - Page 4 3 - Main Feature Operations CarPlay/Android Auto Support both wired and wireless CarPlay connection To connect to CarPlay Wirelessly, both Bluetooth and Wi-Fi connection are required For wired CarPlay & Android Auto : Use a genuine cable to connect through the USB connector.
-
Page 5: Android Phone
2. Enter Mirroring menu on car display and choose “Android” 3. Network name & Password on phone must be set same as shown on Mr12volt “Mirroring” menu 4. Open MLInk app-->turn on Bluetooth and Hotspot 5. When both Bluetooth and Hotspot are successfully connected, phone display will appear on car display ... - Page 6 Mr12volt Does not support the integration of OEM microphone even with the installation of a Y-cable. if you need to use Mr12volt HF or Voice Command such as Siri, the 3.5mm jack microphone supplied in the package must be installed.
-
Page 7: Car Settings
4 - Car Settings Car Setting “Reverse Camera” settings OE Camera (Default) - Select this when car is fitted with factory camera AfterMarket 360 - Select this when car is installed with a aftermarket camera ( support up to AHD720 only) “Reverse condition”... - Page 8 When do i select “Reverse State” ? Mr12volt detects Car CAN bus with most of the car models in the market, however in some cases particularly in older generation cars, when the CAN bus can’t be detected, it is necessary to manually detect camera through car reverse light signal.
-
Page 9: Sound Settings
5 - Sound Settings Sound Settings DSP Built-In Bass/Mid/Treble level adjustment with 15 bars customization Factory default at Flat... -
Page 10: Other Data
6 - USB Supported Formats & Other Specs Music and Video Playback File Format USB file format FAT32 Support USB2.0 , Hard disk memory Supported music format : MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, Supported video format : mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob ... - Page 11 Mr12volt instead of the microphone in the package. ? A: NO, Mr12volt Does Not support the integration of OEM microphone even with the installation of a Y-cable. if you need to use Mr12volt HF or Voice Command such as Siri, the 3.5mm jack microphone supplied in the...
