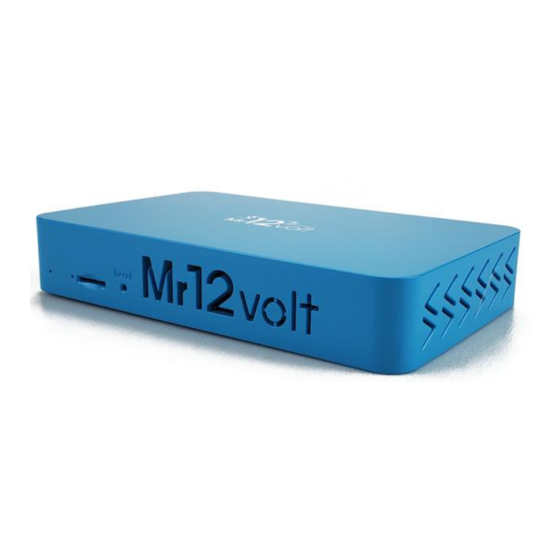

Mr12Volt MOST CarPlay interface for MMI 3G
Quick User Guide
Model No : P2000-3G8MD
A8 D4
1 - All you need to know before Installation
2 - Product Features
3 - Main Feature Operations
4 - Car Settings
5 - Sound Settings
6 - USB Supported Formats & Other Specs
7 - FAQ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2000-3G8MD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mr12volt P2000-3G8MD

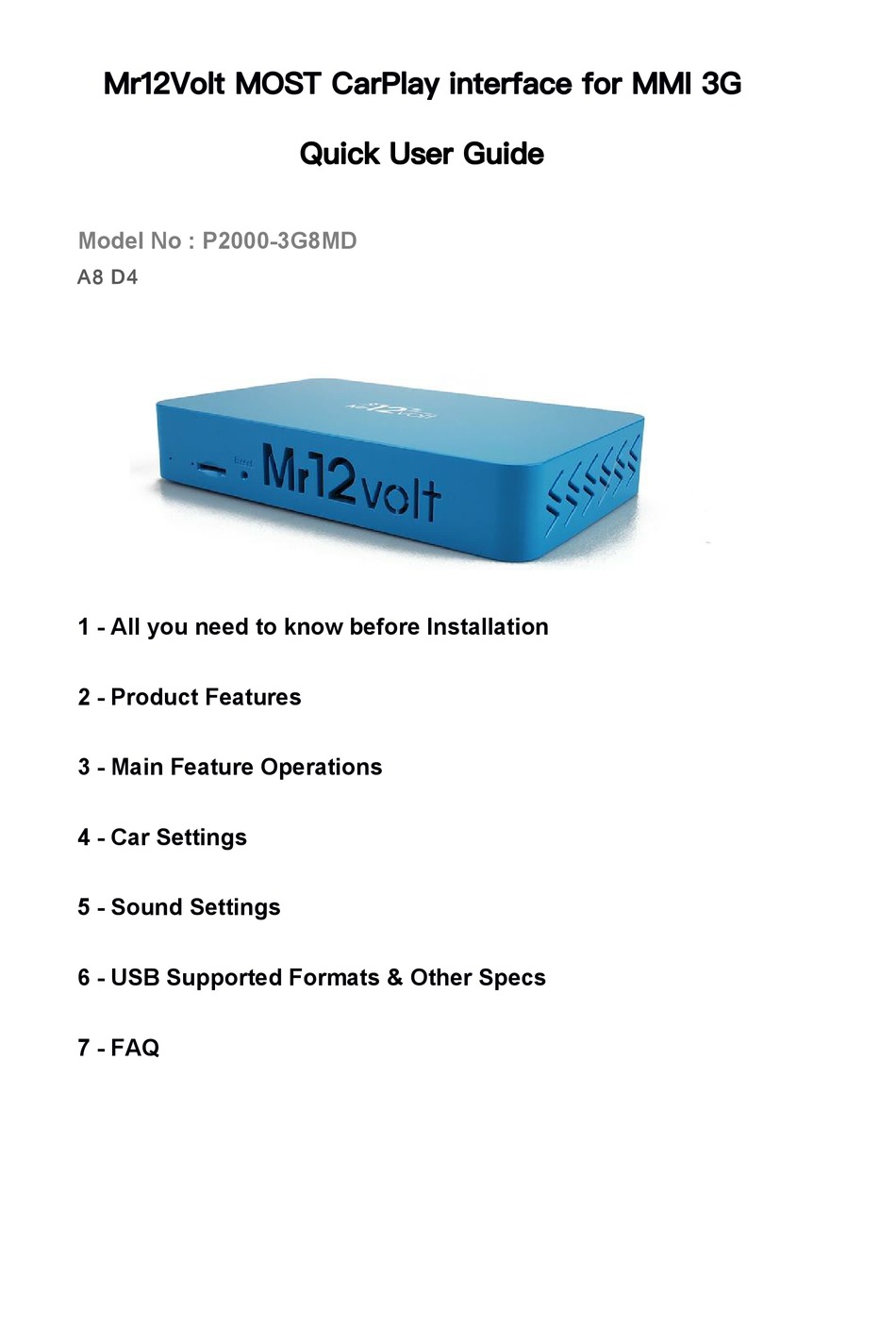

  • Page 1 Mr12Volt MOST CarPlay interface for MMI 3G Quick User Guide Model No : P2000-3G8MD A8 D4 1 - All you need to know before Installation 2 - Product Features 3 - Main Feature Operations 4 - Car Settings 5 - Sound Settings 6 - USB Supported Formats &...
  • Page 2 1 - All you need to know before Installation  Mr12volt interface emulates CD changer function of a Audi MMI radio and is connected through MOST bus of its function. Once successfully installed, Mr12volt will appear in Media menu as a CD changer. ( Picture illustrated above) ...
  • Page 3: Product Features

    2 - Product Features  CarPlay  Android Auto  Mirroring  Music & Video Playback ( Through USB Flash )  Bluetooth HF & Music Streaming  Reverse Camera Input ( Support up to AHD720P )  Front Camera Input ...
  • Page 4 3 - Main Feature Operations CarPlay/Android Auto  Support both wired and wireless CarPlay connection  To connect to wireless CarPlay, both Bluetooth and Wi-Fi connection are required  For wired CarPlay & Android Auto : Use a genuine cable to connect through the USB connector.
  • Page 5: Android Phone

    2. Enter Mirroring menu on car display and choose “Android” 3. Network name & Password on phone must be set same as shown on Mr12volt “Mirroring” menu 4. Open MLInk app-->turn on Bluetooth and Hotspot 5. When both Bluetooth and Hotspot are successfully connected, phone display will appear on Car Display ...
  • Page 6  Mr12volt Does not support the integration of OEM microphone even with the installation of a Y-cable. if you need to use Mr12volt HF or Voice Command such as Siri, the 3.5mm jack microphone supplied in the...
  • Page 7: Car Setting

    4 - Car Settings Car Setting “Reverse Camera” settings  OE Camera (Default) - Select this when car is fitted with factory camera  AfterMarket 360 - Select this when car is installed with a aftermarket camera ( support up to AHD720 only) “Reverse condition”...
  • Page 8 When do i select “Reverse State” ? Mr12volt detects car CAN bus with most of the car models in the market, however in some cases particularly in older generation cars, when CAN bus can’t be detected, it is necessary to manually detect camera through car reverse light signal.
  • Page 9: Sound Settings

    5 - Sound Settings Sound Settings  DSP Built-In  Bass/Mid/Treble level adjustment with 15 bars customization  Factory default at Flat...
  • Page 10: Other Data

    6 - USB Supported Formats & Other Specs Music and Video Playback File Format  USB file format FAT32  Support USB2.0 , Hard disk memory  Supported music format : MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE,  Supported video format : mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob ...
  • Page 11 Mr12volt instead of the microphone in the package. ? A: NO, Mr12volt Does Not support the integration of OEM microphone even with the installation of a Y-cable. if you need to use Mr12volt HF or Voice Command such as Siri, the 3.5mm jack microphone supplied in the...
