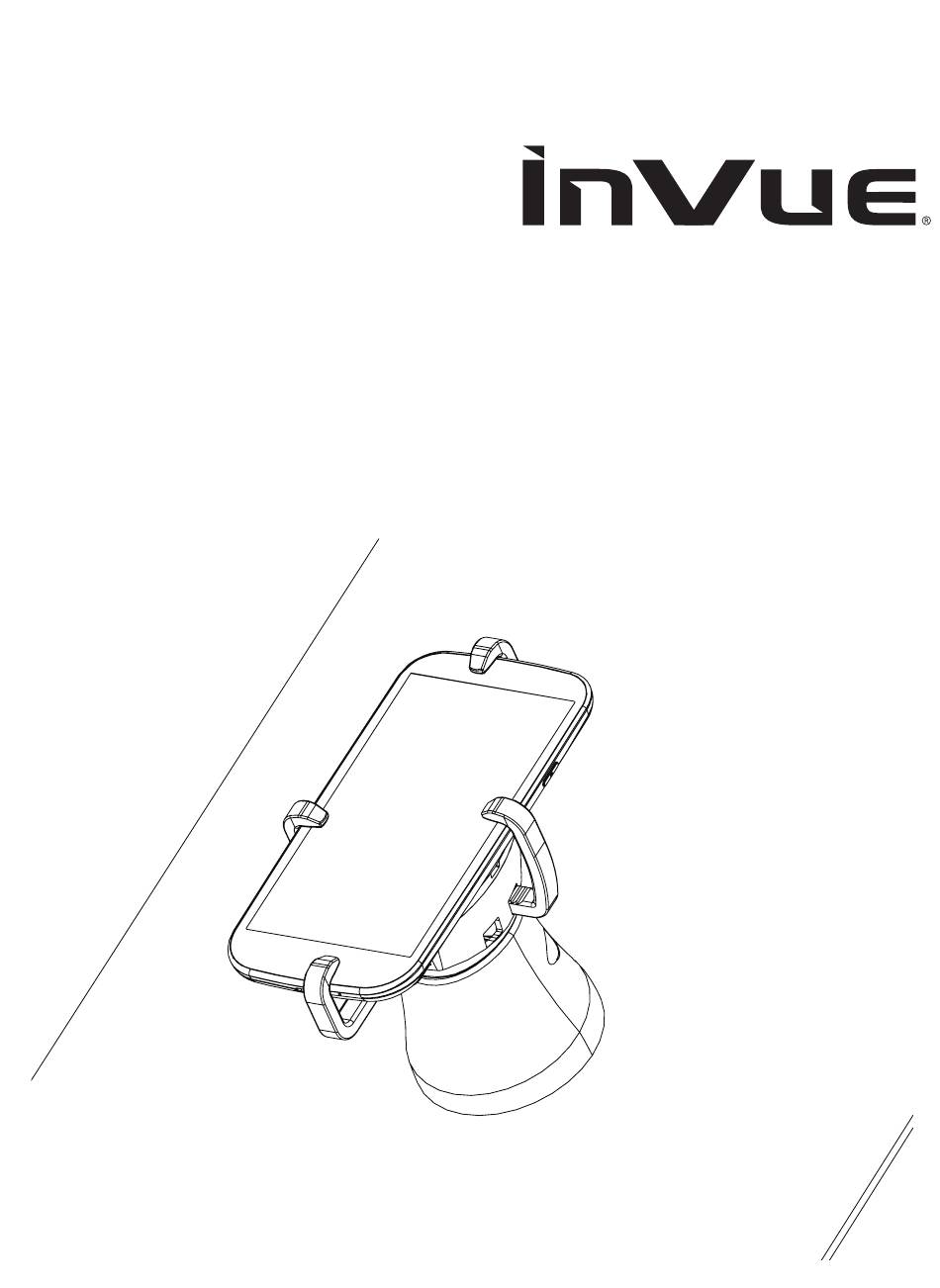

- Page 1 All manuals and user guides at all-guides.com High Security 300 Mechanical Handheld Security Installation MP601...
- Page 2 All manuals and user guides at all-guides.com Read entire instruction guide before starting installation. System Components 1. HS300 Power-Up Recoiler (MP601) 2. Handheld Sensor (MP607) 3. Puck (MP217, MP218) Handheld Sensor 4. 5V Power Supply MP607 System Components Puck MP217 High Security 300 is designed for the toughest security MP218 for smartphones in the most high risk environment.
- Page 3 All manuals and user guides at all-guides.com RECOILER & PUCK INSTALLATION Drill a 45 mm (1.75”) diameter hole in display counter. Puck Spacer (For display counters between 3.175 mm, 0.125” and 12.7 mm, 0.5” thick.) Recoiler...
- Page 4 All manuals and user guides at all-guides.com Slide recoiler up through hole in display counter. Use Rotate recoiler until cut out in recoiler is towards back spacer if needed. Loosely hand tighten cap above of display counter. Fully tighten cap. counter onto recoiler.
- Page 5 All manuals and user guides at all-guides.com Pull recoiler up and slide both parts of puck together Fully tighten screws on puck with T-20 bit. on cap. Confirm lock is at back of display counter. Front of Back of display display counter counter...
- Page 6 All manuals and user guides at all-guides.com ATTACHING MERCHANDISE Plug power supply into recoiler cable and outlet. Spacer (For phones thinner than 11.75 mm, 0.46”) Power Connector Arms Sensor...
- Page 7 All manuals and user guides at all-guides.com Wipe back of phone with alcohol wipe provided. Let it Route power connector cable through if phone charg- dry completely. Plug power connector into phone. ing port is at the bottom or side of the phone.
- Page 8 All manuals and user guides at all-guides.com Confirm phone is placed on sensor correctly so orien- If phone is thinner than 11.75 mm (0.46”): Use tation of phone is correct on recoiler. Make sure cut out spacer. Remove film from spacer and place around rim in sensor is towards top of phone.
- Page 9 All manuals and user guides at all-guides.com If phone is thicker than 11.75 mm (0.46”): DO NOT Choose correct arms for phone. use spacer. Remove clear film off adhesives. Center phone on sensor. Press firmly for at least 10 seconds. MP053 –...
- Page 10 All manuals and user guides at all-guides.com Slide all 4 arms into slots on sensor. Place arms Pull recoiler out of puck and attach sensor to recoiler. opposite of each other. Squeeze all arms and tighten screw with T-20 bit to lock arms in sensor. Recoiler...
- Page 11 All manuals and user guides at all-guides.com Fully tighten both screws with H.S. Bit (AF6315). Optional: Lock screw with T-27 bit to prevent from lifting recoiler.
- Page 12 All manuals and user guides at all-guides.com...
- Page 13 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +65.6766.4844 Latin America // +52.55.9000.3957 © 2013 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
