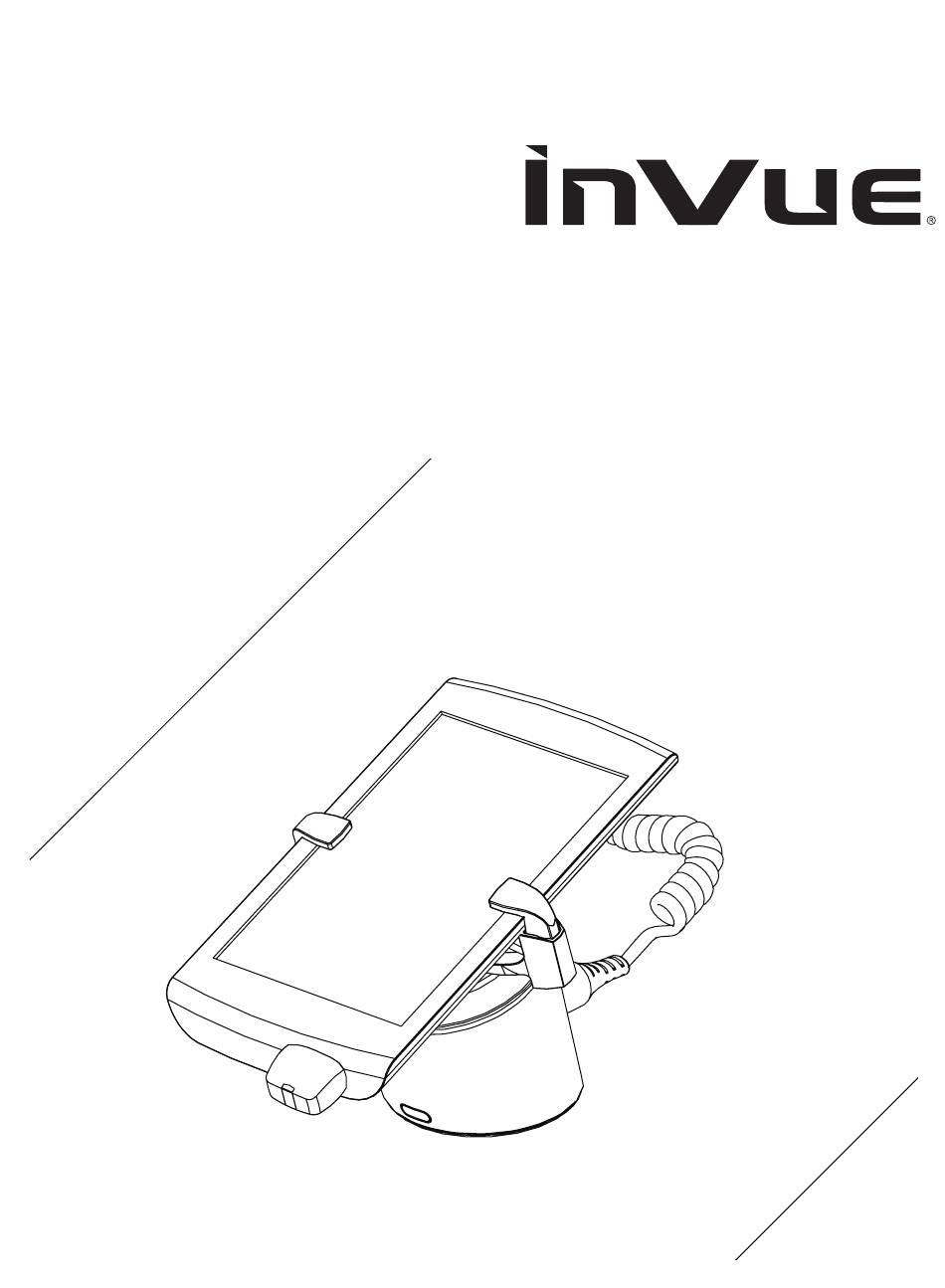

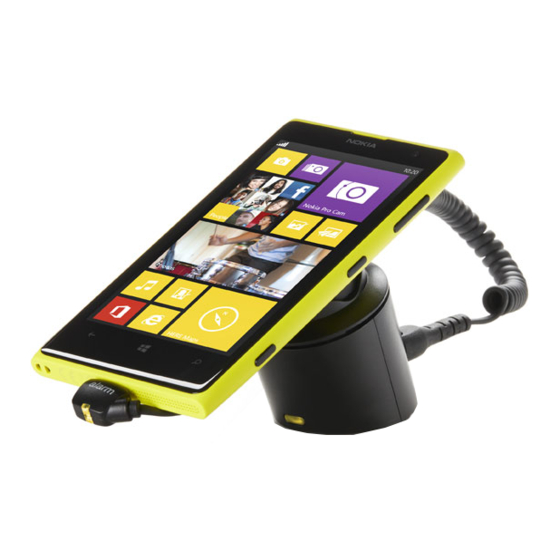

- Page 1 Series 950 Handheld Installation...
- Page 2 Read entire instruction guide before starting installation. System Components System Components EC95000 EC95002 IR Puck 1. IR Puck 2. Handheld Sensor EC95001 3. Handheld Sensor Bracket (optional) 4. Puck Screw Mount Kit (optional) EC95200 EC95206 Sensor 5. 5V Power Supply 6.
- Page 3 PUCK INSTALLATION PUCK INSTALLATION – ADHESIVE MOUNT Adhesive Mount (See page 5) Screw Mount (See page 10)
- Page 4 Optional: Drill a 19 mm (0.75”) diameter hole in Remove tab to activate battery. Remove clear film from display counter. Required: Wipe display counter adhesive. with alcohol wipe provided. Let it dry completely. (Optional)
- Page 5 Slide power cord through display counter. Press firmly Plug InVue power supply into power cord and outlet. for at least 10 seconds.
- Page 6 PUCK INSTALLATION – SCREW MOUNT Drill a 19 mm (0.75”) diameter hole in display counter. Wipe display counter with alcohol wipe provided. Let it dry completely.
- Page 7 Remove tab to activate battery. Remove adhesive to Remove screw and turn door to left with flat head access battery door screw. screwdriver to remove existing battery door.
- Page 8 Place new battery door on bottom of puck and turn Place new adhesive onto bottom of puck. Insert and door to right with flat head screwdriver. Place screw in tighten threaded metal rod onto new battery door. battery door and tighten.
- Page 9 Remove clear film from adhesive. Slide power cord through display counter. Press firmly for at least 10 seconds. Slide washer through threaded metal rod and cord and tighten wingnut below counter.
- Page 10 ATTACHING MERCHANDISE Plug InVue power supply into power cord and outlet.
- Page 11 Wipe back of phone with alcohol wipe provided. Let it Plug power connector into phone. dry completely.
- Page 12 Remove clear film off adhesive on sensor. Confirm (Optional: If using arms): Loosen sensor with T-20 bit sensor cord is towards top of phone. Center and to attach arms. Attach both arms to sensor. attach merchandise to sensor. Press firmly for at least 10 seconds.
- Page 13 Confirm arms are fitted to width of merchandise. (Optional: If using arms): Adjust arms to thickness of Squeeze both arms against merchandise and tighten merchandise and tighten screw with T-20 bit. Do not overtighten. screw with T-20 bit to lock arms in sensor. Confirm arms are placed onto sensor correctly.
- Page 14 Arm/Disarm Alarm Plug sensor cord into puck and place sensor onto puck. Place key on lens of puck. Press button on key once to arm and disarm alarm.
- Page 15 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +852.3127.6811 Latin America // +52.55.9000.3957 © 2013 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
