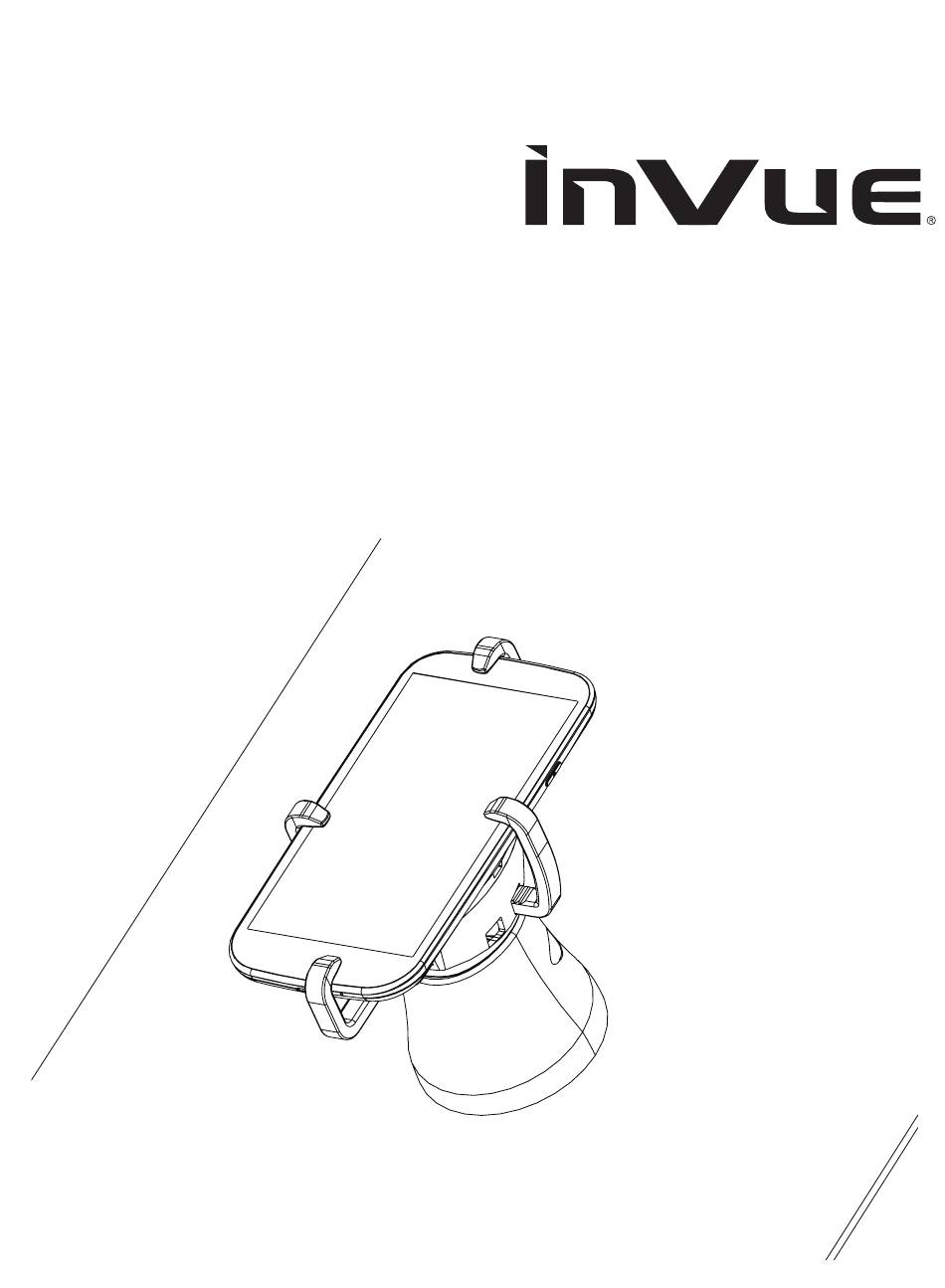

- Page 1 High Security 300 Alarming Handheld Security Installation MP600...
- Page 2 IR Dot MP217 MP207 6. 5V Power Supply MP218 7. IR Key (not included) System Components High Security 300 is designed for the toughest secu- HS300 Alarm Unit Alarming rity for smartphones in the most high risk environment. MP100 Recoiler...
- Page 3 RECOILER & PUCK INSTALLATION Drill a 45 mm (1.75”) diameter hole in display counter. Puck Spacer (For display counters between 3.175 mm, 0.125” and 12.7 mm, 0.5” thick.) Recoiler...
- Page 4 Slide recoiler up through hole in display counter. Use Rotate recoiler until cut out in recoiler is towards back spacer if needed. Loosely hand tighten cap above of display counter. Fully tighten cap. counter onto recoiler. Cut out in recoiler Front of Back of Recoiler...
- Page 5 Pull recoiler up and slide both parts of puck together Fully tighten screws on puck with T-20 bit. on cap. Confirm lock is at back of display counter. Front of Back of display display counter counter...
- Page 6 ALARM & IR DOT INSTALLATION Drill a 20.5 mm (0.8125”) diameter hole in display counter at preferred location for IR Dot. IR Dot Alarm Unit...
- Page 7 Slide IR dot down through display counter and Plug cord from recoiler and IR dot into alarm unit. tighten nut below counter.
- Page 8 Remove clear film from Alarm Unit. Attach Alarm Unit Plug cord from alarm unit into power supply. Plug below counter near puck. Press firmly for at least 10 power supply into outlet. seconds.
- Page 9 ATTACHING MERCHANDISE Wipe back of phone with alcohol wipe provided. Let it dry completely. Plug power connector into phone. Spacer (For phones thinner than 11.75 mm, 0.46”) Power Connector Arms Sensor...
- Page 10 Confirm phone is placed on sensor correctly so orien- Route power connector cable through if phone charg- tation of phone is correct on recoiler. Make sure cut out ing port is at the bottom or side of the phone. in sensor is towards top of phone. Top of Phone Cut out in sensor...
- Page 11 If phone is thinner than 11.75 mm (0.46”): Use If phone is thicker than 11.75 mm (0.46”): DO NOT spacer. Remove film from spacer and place around rim use spacer. Remove clear film off adhesives. Cen- of sensor. Remove film from spacer. Center phone on ter phone on sensor and press firmly for at least 10 sensor and press firmly for at least 10 seconds.
- Page 12 Choose correct arms for phone. Slide all 4 arms into slots on sensor. Place arms opposite of each other. Squeeze all arms and tighten screw with T-20 bit to lock arms in sensor. MP053 – Standard Arms MP054 – Large Arms (For phones with wider power port)
- Page 13 Pull recoiler out of puck and attach sensor to recoiler. Fully tighten both screws with H.S. Bit (AF6315). Recoiler...
- Page 14 Arm/Disarm Alarm Optional: Lock screw with T-27 bit to prevent from lifting recoiler. Place key on lens of IR Dot. Press grey button once to arm and disarm alarm.
- Page 15 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +65.6766.4844 Latin America // +52.55.9000.3957 © 2013 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
