WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.

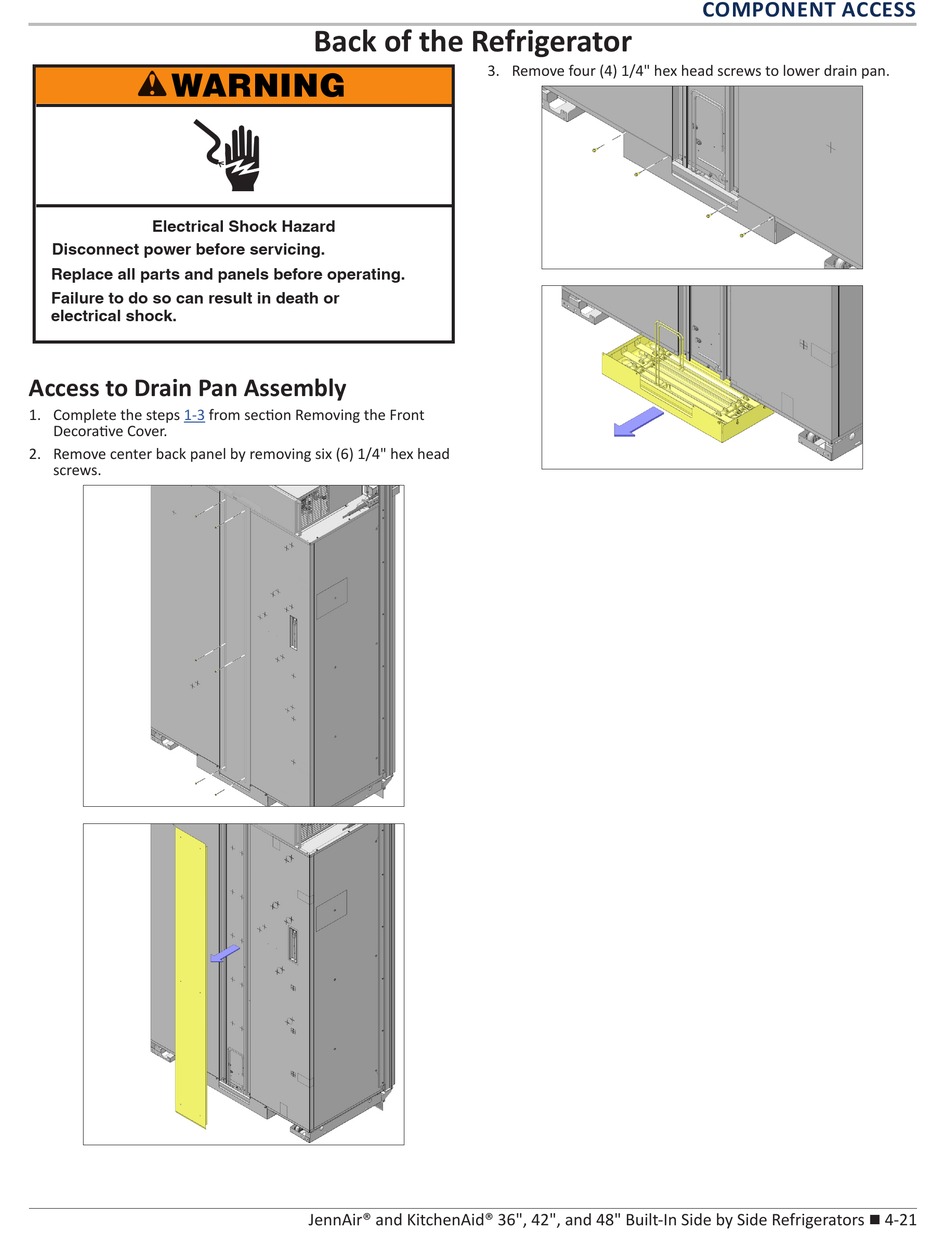

Access to Drain Pan Assembly
1. Complete the steps
1-3
Decorative Cover.
2. Remove center back panel by removing six (6) 1/4" hex head
screws.
Back of the Refrigerator
from section Removing the Front
JennAir® and KitchenAid® 36", 42", and 48" Built-In Side by Side Refrigerators
3. Remove four (4) 1/4" hex head screws to lower drain pan.
COMPONENT ACCESS
n
4-21
