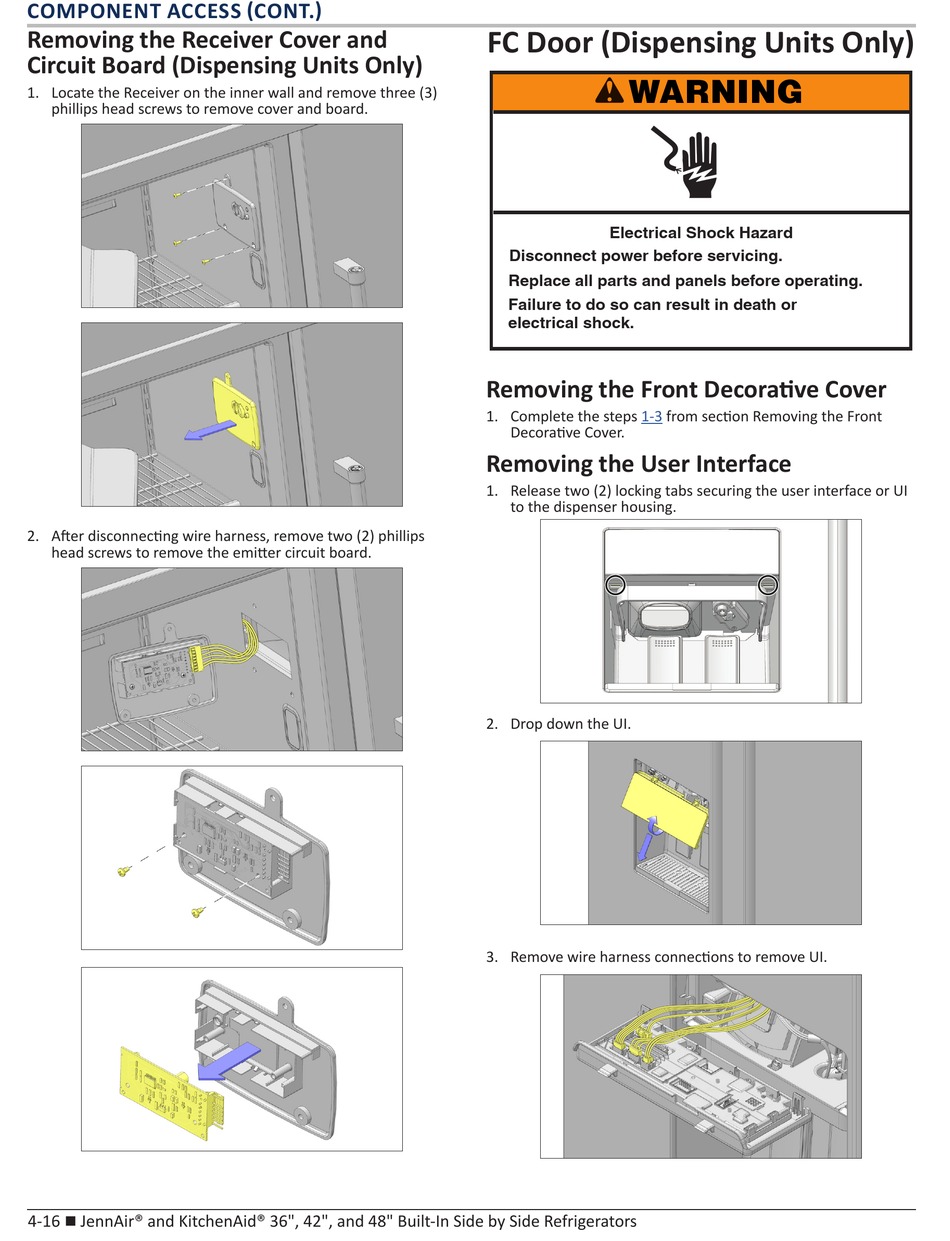

COMPONENT ACCESS (CONT.)
Removing the Receiver Cover and
Circuit Board (Dispensing Units Only)
1. Locate the Receiver on the inner wall and remove three (3)
phillips head screws to remove cover and board.
2. After disconnecting wire harness, remove two (2) phillips
head screws to remove the emitter circuit board.
4-16 JennAir® and KitchenAid® 36", 42", and 48" Built-In Side by Side Refrigerators
n

FC Door (Dispensing Units Only)

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.
Removing the Front Decorative Cover
1. Complete the steps 1-3
Decorative Cover.
Removing the User Interface
1. Release two (2) locking tabs securing the user interface or UI
to the dispenser housing.
2. Drop down the UI.
3. Remove wire harness connections to remove UI.
from section Removing the Front
