Summary of Contents for Woodley Clinispin Micro III

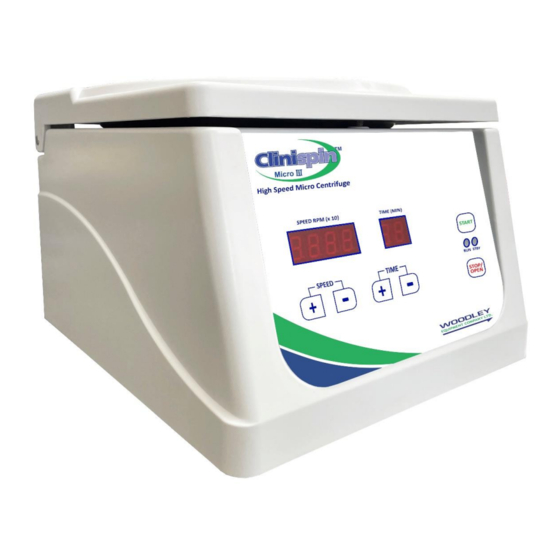

- Page 1 High Speed Micro Centrifuge User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction & Safety ......................3 1.1 Notes on Operation ........................3 Features ..........................4 Specifications ........................5 Unpacking the Centrifuge ..................... 6 Operating Instructions ......................6 5.1 Control Panel and Display Interface....................6 Troubleshooting ........................8 Fuse Replacement ......................10 Maintenance ........................ -
Page 3: Introduction & Safety
Speed and time can be easily changed before each run. The Clinispin Micro III has a welded steel outer and inner casing to protect the motor and rotor. An automatic lid lock ensures that the lid cannot be opened during running or braking. -
Page 4: Features
2. Features • Maximum volume of 12 x 1.5/2.2ml tubes. • The tube holders in the rotor are on an angle making it easier to load/unload and helps to protect the integrity of the separated sample. • Time is adjustable in increments of 1 minute up to a maximum of 99 minutes. •... -
Page 5: Specifications
3. Specifications Motor Type Brushless DC Motor Maximum Speed 16,500 RPM Maximum RCF 18,260 xg Maximum Volume 12 x 1.5/2.2ml tubes Run Time 1 – 99 minutes Power AC 220-230V, 50/60Hz Net Weight Dimensions (Centrifuge) 300 (L) x 250 (W) x 200 (H) mm Gross Weight Dimensions (Packaging) 340 (L) x 330 (W) x 250 (H) mm... -
Page 6: Unpacking The Centrifuge
Allen Key to Allow Removal of Rotor for Cleaning Put the Clinispin Micro III on a flat, level surface with at least 30cm of space surrounding it. Plug the power supply firmly into the back of the centrifuge and connect to main power. - Page 7 Switch on the power at the mains and then turn on the power at the back of the Clinispin Micro III. The front panel should light up with the red “STBY” light on. Press the “STOP/OPEN” button to open the lid and wait one second for the lock to open and the lid to lift slightly.
-
Page 8: Troubleshooting
2. Check whether the switch is ok. 3. If the issue still isn’t resolved, please contact Woodley Equipment Company. Stops working suddenly. 1. The speed exceeds the maximum rated speed of the rotor. - Page 9 4. Open the lid manually using the manual release cord (see image). 5. If the issue still isn’t resolved, please contact Woodley Equipment Company. If the manual release cord does not work, follow the process below: • Use the supplied spanner to loosen the...
-
Page 10: Fuse Replacement
Apply cleaning solutions with a damp cloth. Do not submerge the centrifuge in water or other cleaning solutions as this will cause damage and void the warranty. Contact Woodley Equipment Company for additional information. Fragile... -
Page 11: Warranty
It does not cover damage resulting from abuse or misuse, repairs or alterations performed by anyone other than Woodley authorised personnel, or damage occurring in transit. If you have any problems with your Clinispin Micro III, please contact Woodley Equipment Company. - Page 12 Old Station Park Buildings St. John Street Horwich Bolton BL6 7NY, UK Tel: +44 (0) 1204 669033 Email: sales@woodleyequipment.com Web: www.woodleyequipment.com...
