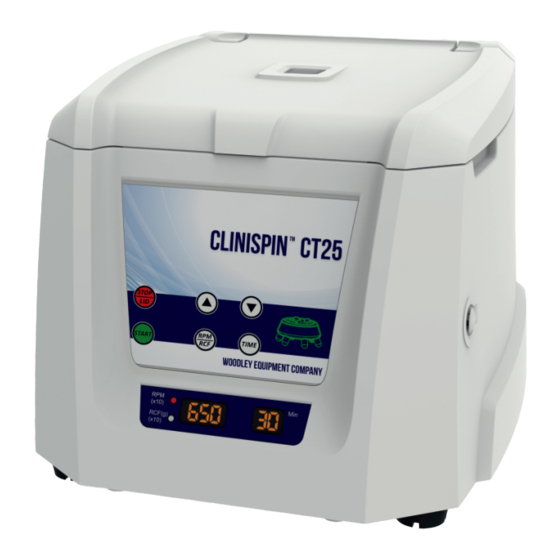

Woodley Clinispin CT25 User Manual

Hide thumbs

Advertisement

Table of Contents

Clinispin™CT25
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Clinispin CT25 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodley Clinispin CT25

Summary of Contents for Woodley Clinispin CT25

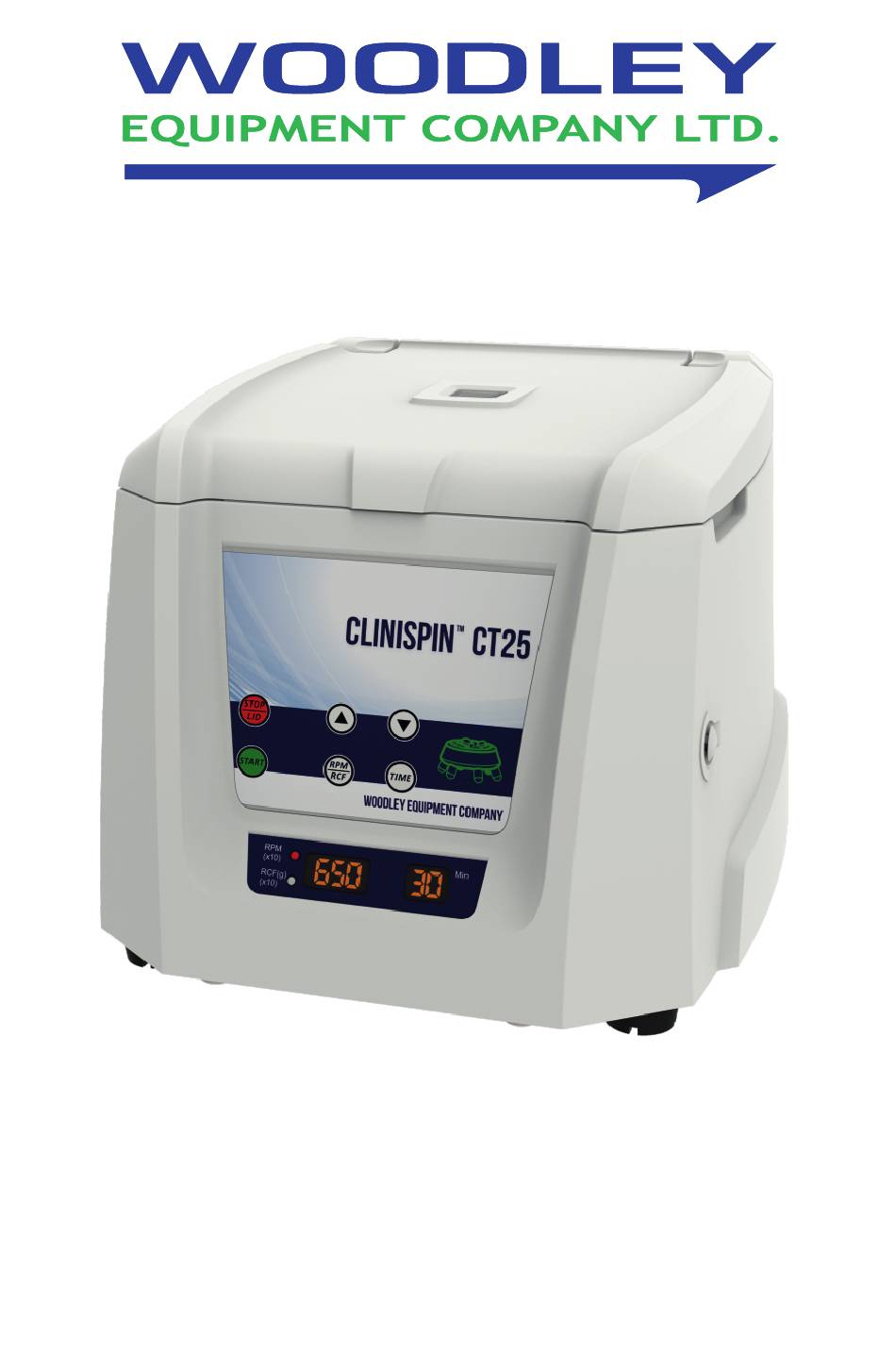

  • Page 1 Clinispin™CT25 User Manual...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduc on Intended Use Features Technical Specifica on Standard Accessories Installa on Standard Parts Lis ng Tube Holder & Adaptors Rotor Installa on 10. Balancing the Rotor 11. Opera on 12. Safety Precau on 13. Troubleshoo ng 14.

  • Page 4: Introduc On

    1. INTRODUCTION This manual provides important safety informa on for this centrifuge. It should be kept near the centrifuge for quick & easy reference. This centrifuge is equipped with maintenance free brushless DC motor drive and a safety feature of imbalance detec on.

  • Page 5: Standard Accessories

    Maximum RCF 3684 x g 3873 x g Fix Angle 25°C Accelera on Time 43 ± 2 seconds Decelera on Time 40 ± 2 seconds Size (L x W x H) 260 x 244 x 203 mm Weight 4 Kg (with rotor) 24 V 24 V Input Voltage...

  • Page 6: Standard Parts Lis Ng

    6.1 Connec ng Power Adaptor Connect one side of power adaptor to rear side of centrifuge and other to supply as shown in the figure below. Rotate clockwise the adaptor nut to ghten the adaptor with the centrifuge. Ensure the power switch is OFF while connec ng the power adaptor. The s cker on the body &...

  • Page 7: Tube Holder & Adaptors

    8. TUBE HOLDER & ADAPTORS This centrifuge features centrifuga on for wide range of volumes from 1ml to 15ml with the combina on of its adaptors. The accessories included are: Rubber Cap Adaptor “RA-1” Adaptor “RA-2” Tube Holder “Tube Holders” are always to be used with the rotor. All of the 6 / 8 “Tube Holders” are mandatory to be placed in the rotor whether 2,3,4 or 6 / 8 tubes are used in balanced condi on.
  • Page 8 COMBINATION B: Rubber Cap Reverse of Adaptor “RA-2” Adaptor “RA-1” Reverse of Adaptor “RA-1” Rubber Cap Combination B Adaptor “RA-2” COMBINATION C: Adaptor “RA-1” Adaptor “RA-2” Combination C Adaptor “RA-1” Adaptor “RA-2” ADAPTOR COMBINATION & TUBE SIZES 1) NO ADAPTOR COMBINATION The maximum diameter and proposed length for such combina on are: Maximum Tube Diameter : 18 mm...

  • Page 9: Rotor Installa On

    9. ROTOR INSTALLATION T - Allen Key To Tighten To Loosen Rotor Nut Rotor Motor Shaft The rotor of the centrifuge is pre-installed. In case of any spillage, remove the rotor as shown in the above figure to clean the rotor and its chamber thoroughly. 9.1 REMOVING ROTOR To remove rotor, first remove the Tube Holders.

  • Page 10: Opera On

    condi on of the 6"Tube Holders are mandatory to place inside the rotor whether 2, 3, 4 or 6 / 8 tubes are being used. If the tubes are not loaded symmetrically then the imbalance detector will cut off the running centrifuge for safety reasons. This will stop the centrifuge and Err 55 will be seen indica ng the tubes are not loaded symmetrically.
  • Page 11 The speed can be changed during the opera on of the centrifuge, upon changing the speed, the centrifuge will start running on the updated speed for the remaining me le on the centrifuge cycle. Note: Centrifuge will not run with the lid open. To set me press the TIME bu on first, then use INCREMENT and DECREMENT bu ons, me can be set as desired me.

  • Page 12: Safety Precau On

    and fit the emergency release cap back in the hole. 11.5 IMBALANCE DETECTION This centrifuge is equipped with an imbalance detec on safety feature. When the rotor is not loaded symmetrically, imbalance detector gets ac vated. This will cut off the centrifuga on & error “Err55” will be shown on the display. To correct the imbalance, open the centrifuge lid and correct the imbalance load using methods described in the balancing the rotor sec on (page no.10) of this manual.

  • Page 13: Warranty Statement

    Rotor not loaded Load the rotor symmetrically Err 55 symmetrically. & restart the centrifuge. Rotor is still spinning. Wait for the rotor to come to a stop. Centrifuge lid cannot be Press emergency lid release after Power failure opened rotor stops Rotor is not loaded Load rotor symmetrically &...

  • Page 14: Product Disposal

    damages. This warranty gives you specific legal rights. This warranty is given expressly in lieu of all other warran es, expressed or implied. The purchaser agrees that there is no warranty of merchantability or of fitness for any intended purpose and that there are no other remedies or warran es, expressed or implied, which extend beyond the descrip on on the face of the agreement.
  • Page 16 Woodley Equipment Company Limited UK Office: Locomo ve House Locomo ve Industrial Estate Horwich Lancashire BL6 5UE United Kingdom Tel: +44 (0) 8456 777001 Fax: +44 (0) 8456 777002 enquiries@woodleyequipment.com Woodley Equipment Company Inc USA Office: 37-18 Northern Boulevard, STE 512...
