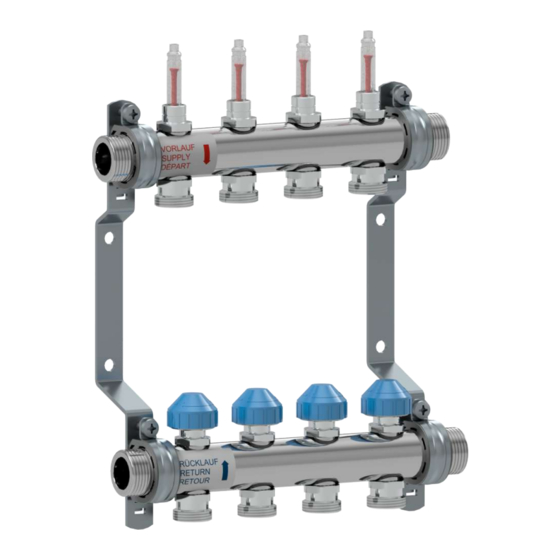

- Page 1 Series HKV2013AF 1" Stainless steel heating circuit manifold with flow meters Installation and operating manual WattsWater.eu...
-
Page 2: Table Of Contents
This manual is protected by copyright and may not be altered without the manufacturer’s per- mission. 1.2 Product conformity The HKV2013AF Series heating manifold conforms to DIN EN 1264-4 "Water based surface embedded heating and cooling sys- tems". 1.3 Product features •... -
Page 3: Technical Specification
3 Technical specification Hydraulic data Max. operating pressure 10 bar (see Pressure-temperature diagram) Medium temperature from -10 to 80 °C (see Pressure-temperature diagram) Media Water or water with glycol as per VDI 2035 Connections Primary circuit and end set G 1 male thread Heating circuit G ¾... -
Page 4: Pressure-Temperature Diagram
4 Pressure-temperature diagram Pressure-temperature diagram Temperature [°C] A: 100% water B: 70% water, 30% propylene glycol C: 70%, 30% ethylene glycol HKV2013AF-IM-DE-W-UK-03-2023-Rev.2 | Part no. 10086671... -
Page 5: Pressure Loss Diagram
5 Pressure loss diagram Manifold pressure loss diagram 1.000 Outlets 1.000 10.000 Flow rate [L/h] HKV2013AF-IM-DE-W-UK-03-2023-Rev.2 | Part no. 10086671... - Page 6 Control valve pressure loss diagram 1.000 Number of rotations 0.25: Kv 0.33 0.50: Kv 0.56 1.00: Kv 0.85 1.50: Kv 1.02 2.00: Kv 1.14 0.25 2.50: Kv 1.20 1.000 Flow rate [L/h] The adjustment diagram already allows for the specific pressure losses in the flow meter, flow control valve and 2 compression fittings. HKV2013AF-IM-DE-W-UK-03-2023-Rev.2 | Part no.
-
Page 7: Dimensions
6 Dimensions M10x1 G ¾″ G ¾″ 55 50 G ¾″ Outlets L1 = HKV L2 = HKV + KFE90 (C) L3 = HKV + Q1 (B) L4 = KH (A) + HKV + KFE90 (C) L5 = KH (A) + HKV + Q1 (B) HKV2013AF-IM-DE-W-UK-03-2023-Rev.2 | Part no. -
Page 8: Components Overview
7 Components overview Components Optional accessories Manifold supply Ball valve set KH Flow meter with shut-off function End set Q1: Flushing, filling, draining, venting Wall brackets End set KFE90: Flushing, filling, draining, venting Manifold return Heating circuit connection Control valve with protective cap HKV2013AF-IM-DE-W-UK-03-2023-Rev.2 | Part no. -
Page 9: Installation And Commissioning
2. Push the grab ring onto the pipe and insert the hose nozzle. 8 Installation and commissioning 3. Push the conical end of the pipe all the way into the connec- tion on the manifold. WARNING 4. Tighten the clamping ring nut by hand. Push the plastic, cop- Hot water! per or multilayer pipe up to the stop. -
Page 10: Flushing And Filling The Circuits
8.3 Flushing and filling the circuits 3. Attach the flushing and filling hose to the fill and drain valve 3 on the supply side; the discharge outlet on fill and drain valve CAUTION 4 must be open. 4. Completely open the valve on the circuit to be flushed using Material damage! the protective cap. -
Page 11: Adjusting The Flow Rate
8.4 Adjusting the flow rate 2. Adjust the flow rate by turning the regulating spindle anticlock- wise on the return valve. The actual value can be read from CAUTION the flow meter. Do not use the flow meter to adjust the flow. Once all the circuits have been set, check the flow values and Material damage! readjust if necessary. -
Page 12: Disposal
Warranty: all sales and contracts for sale are expressly conditioned on the buyer’s assent to Watts terms and conditions found on its website www.wattswater.eu/gtc/. Watts hereby objects to any term, different from or additional to Watts terms, contained in any buyer communication in any form, unless agreed to in a writing signed by an officer of Watts.
