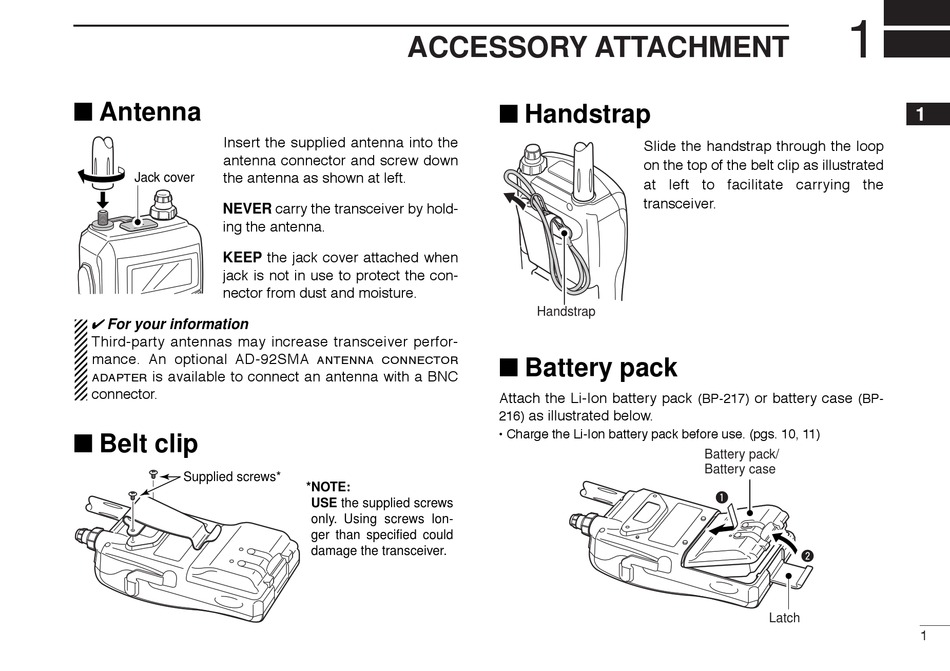

Icom IC-91AD Instruction Manual page 7

■ Antenna
Insert the supplied antenna into the
antenna connector and screw down
the antenna as shown at left.
Jack cover
NEVER carry the transceiver by hold-
ing the antenna.
KEEP the jack cover attached when
jack is not in use to protect the con-
nector from dust and moisture.
✔ For your information
Third-party antennas may increase transceiver perfor-
mance. An optional AD-92SMA
is available to connect an antenna with a BNC
ADAPTER
connector.
■ Belt clip
Supplied screws*
ACCESSORY ATTACHMENT
ANTENNA CONNECTOR
*NOTE:
USE the supplied screws
only. Using screws lon-
ger than specified could
damage the transceiver.
■ Handstrap
Slide the handstrap through the loop
on the top of the belt clip as illustrated
at left to facilitate carrying the
transceiver.
Handstrap
■ Battery pack
Attach the Li-Ion battery pack
as illustrated below.
216)
• Charge the Li-Ion battery pack before use. (pgs. 10, 11)
1
or battery case
(BP-217) (BP-
Battery pack/
Battery case
q
w
Latch
1
1
