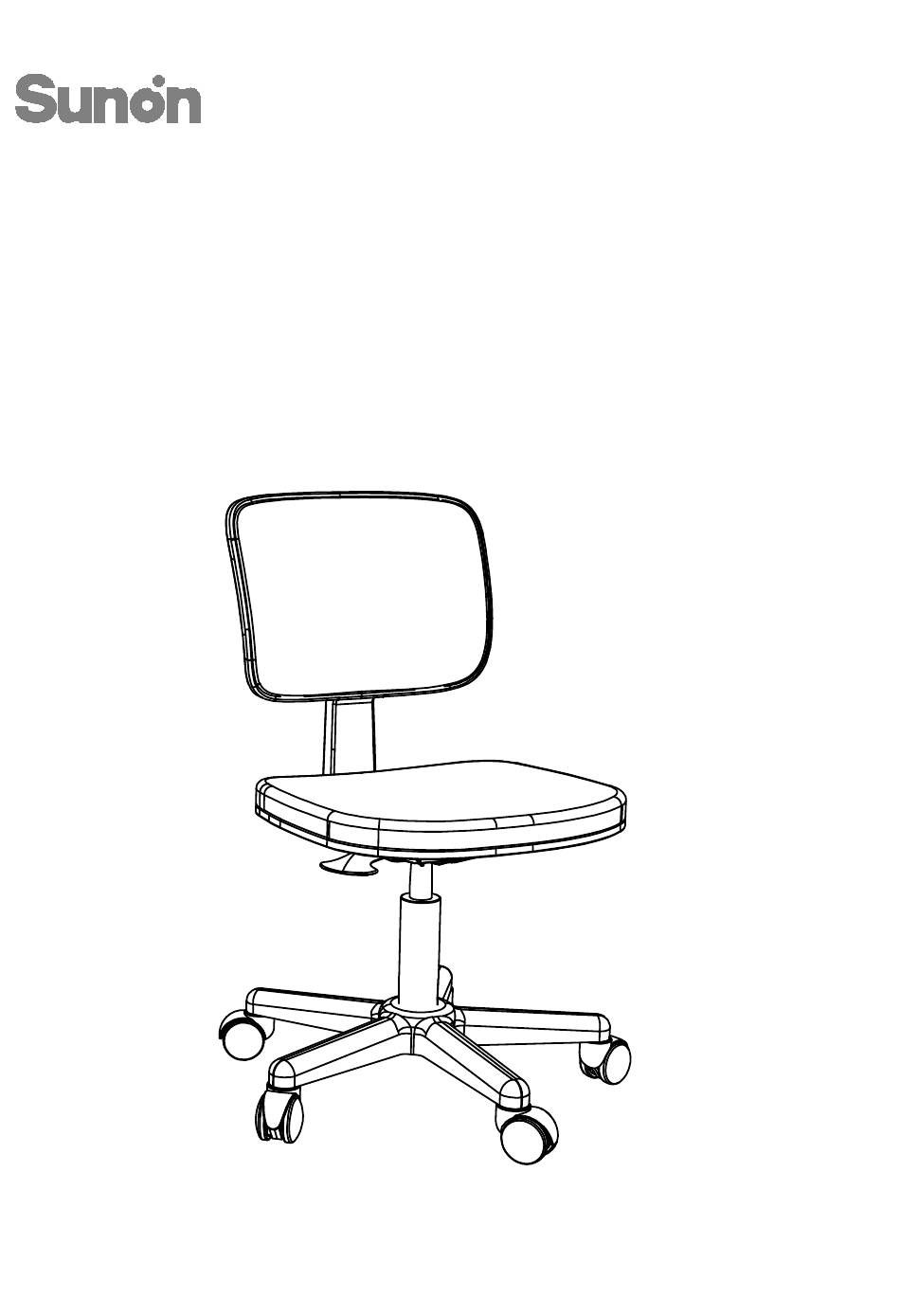

- Page 1 03 E-commerce Chair Series Installation Manual This manual is used for the installation of CAM0360BW&CAM0361BW&CAM0362BW&CAM0363BW Please read this manual carefully before use and keep it properly.
-
Page 2: Assembly Note
Assembly note: Use a protective mat and handle the product with care. Note: At least two people are required. Contact Sunon if you have any confusions. -
Page 3: Exploded Diagram
This picture shows all the accessories required, among which some are key accessories. If you have missed any, please contact Sunon at 949-337-8838 Exploded diagram:... -
Page 4: Accessory List
Accessory list: Screw with M8*55 Allen wrench gasket... - Page 5 1. First fit casters into the five-star base. Then insert the bottom end of the gas lift into the central hole of the base.
- Page 6 2. Remove the two pre-assembled screws with gaskets from the seat before installation. M8*55 (x2) (x1)
- Page 7 3. Fix the backrest to the seat and tighten the screws. M8*55 (x2) (x1)
- Page 8 4. Align the mechanism's hole of pre-assembled seat body with gas lift, then put the seat down. Done...
- Page 9 Function: 1. Adjust Seat Height Upward: get your body off the seat and pull the lever to lift the seat to the appropriate height. Downward: press down and pull the lever to lower the seat to the appropriate height.
- Page 10 Function: 2. Seat cover can be removed for cleaning Remove the cover from the end of seat.
- Page 11 Acceptance note: Clean the surface. Acceptance note: Tidy up. Check and deliver.
