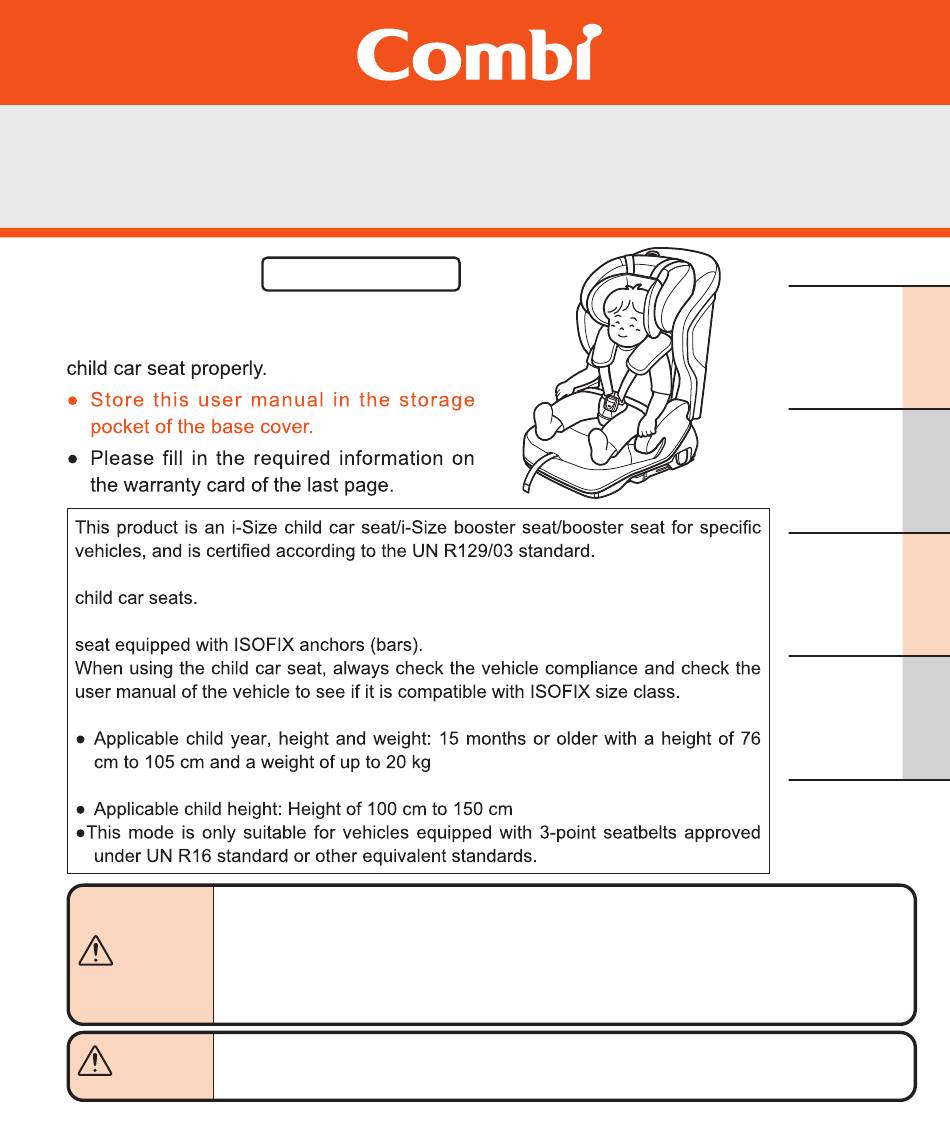

Joytrip Advance ISOFIX Series
User Manual
For the safety of the child, please read this
user manual carefully before use and use the
This product can be installed to vehicle seats approved for installation of ISOFIX
However, this does not mean that this child car seat can be installed to any vehicle
【Child seat mode】
【Junior seat mode】
Do not use the child car seat if the child does not meet the following conditions:
[Child seat mode]
Applicable child year, height and weight: 15 months or older with a height
DANGER
of 76 cm to 105 cm and a weight of up to 20 kg
[Junior seat mode]
Applicable child height: Height of 100 cm to 150 cm
To avoid causing stress to the child, avoid continuous long-time usage and
CAUTION
give the child a break from the child car seat about once every hour.
Combi Child Car Seat
with Warranty Card
Before
Use
Using
Child Seat
Mode
Using
Junior
Seat
Mode
Maintenance
and Other
