Cooper Lighting Shaper 615 Specification Sheet

D E S C R I P T I O N

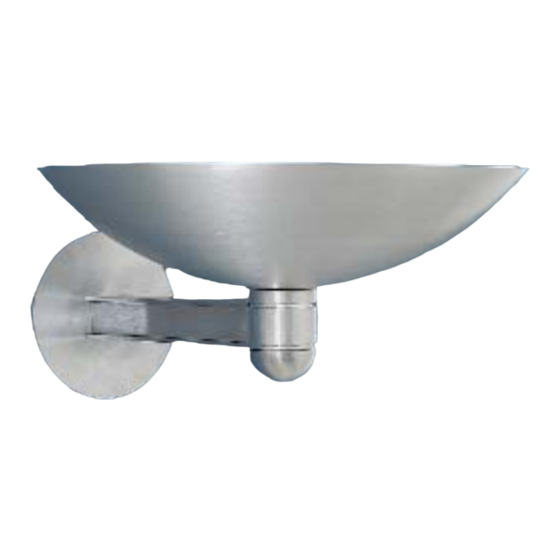

615 Indirect Solid Bowl with an arm mount bracket.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Aluminum arm and wall canopy.
Aluminum or cold rolled steel
bowl.
F i n i s h
Standard: Natural Aluminum
(NA). [Sustainable Design]
Premium: Matte White (MW),
Lacquered Satin Aluminum
(SAL), Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Polished Brass (PB),
Satin Copper (SCP), Polished
Copper (PCP), Lacquered Satin
Chrome (SCL), Lacquered Satin
Nickel (SNL), Satin Nickel (SN),
Polished Nickel (PN) or Custom
Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
O R D E R I N G I N F O R M AT I O N
Sample Number: 615-INC/1/100-120V-PCP
Series Lamp
615 Solid Bowl w/ = CFL/2/26
Arm Mount Bracket
INC/1/100
Notes:
1
Available with CFL only.
2
Consult the factory for available options.
3
Supplied by others.
L a m p / S o cke t
Two (2) 26W (G24q-3) 4-pin quad
CFL lamps or one (1) 100W A-19
lamp. CFL socket injection
molded plastic. INC socket fired
ceramic rated for 660W-250V.
Lamps furnished by others.
I n s t a l l a t i o n
Supplied with a mounting plate
with an integral tenon for a
standard 4" J-box or plaster ring.
O p t i o n s
Dimming Ballast - Contact
factory for ballast options (DM),
Top Louver - Contact Factory,
Remote Emergency Battery -
Supplied by others (REM), Damp
Location (DL): All Painted
finishes, Lacquered Satin
Chrome (SCL) and Lacquered
Satin Nickel (SNL) finishes only.
Energy Star Rating - Consult
factory. MRI Applications (INC
only) - Contact Factory.
Voltage Finish
120V 120V =
Standard
1
NA Natural Aluminum =
277V 277V =
1
Premium
347V 347V =
CC Custom Color =
MW Matte White =
PB Polished Brass =
PC Polished Chrome =
PCP Polished Copper =
PN Polished Nickel =
SAL Lacquered Satin Aluminum =
SB Satin Brass =
SC Satin Chrome =
SCL Lacquered Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
DL Damp Location =
2
DM CFL Dimming Ballast =
REM Remote =
3
Emergency Battery
shaperlighting.com
Type
Date
615 SERIES
I n t e r i o r W a l l L u m i n a i r e
S o l i d B o w l
w i t h A r m M o u n t B r a c k e t
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
SUSTAINABLE
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
Refer to the Icon Legend
Link on shaperlighting.com.
