AV Link 128.822UK User Manual

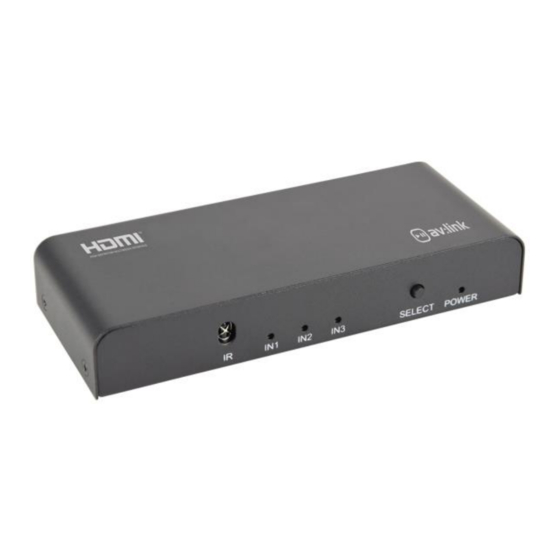

This HDMI switch allows a single display to be connected to up to 3 HDMI sources and selected using the IR
remote control or selection button on the unit. Front LED's keep you informed as to which of the inputs is live
at any one time.

Technical Specifications and Features

HDMI Version
Video Format
Audio Format
Operating Temperature Range
Power Adaptor
Max. Bandwidth
Max. Baud Rate
Max. Working Current
Dimensions
Weight

Connection Instructions

1.4a
Up to 1080p @ 60Hz, 3D, 24/30/36-bit deep colour
DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
-15 to +55°C
Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
225 MHz
2.25Gbps
500mA
128 x 53 x 20(mm)
140g
HDMI Switch 3x1 with Remote Control
Item ref: 128.822UK
User Manual
128.822UK User Manual
