AV Link 128.835UK User Manual

A 4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs. Use with HDMI cables of
a combined 20m per output for HD resolution, or a combined 10m per output for 4K resolution, without signal
loss. SPDIF and 3.5mm jack outputs allow the audio signal of the selected source device to simultaneously be
channeled through a separate sound system; ideal for hospitality and entertainment venues. Supplied with IR
remote to switch between sources.
• Simple connection and installation
• Gold plated HDMI connectors for optimum signal transfer
•
Supports HDMI v2.0a resolutions up to 3840 x 2160 @ 60Hz
• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
• Digital SPDIF and analogue 3.5mm jack audio outputs
•
Ideal for entertainment, hospitality and other commercial venues requiring multiple display feeds from a
single HDMI source
• IR Remote and UK power adaptor supplied

Technical Specifications and Features

HDMI Version
Video Resolution
Display Colours
Audio Format
Max. Bandwidth
Max. Baud Rate
Transmission Distance
Max. Working Current
Dimensions
Weight

Back/Front View

2.0a
Up to 3840 x 2160 @ 60Hz
8/10/12bit deep colour
DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
600 MHz
6Gbps
20m max HD or 10m max 4K (20m input/output @ 1080p and 10m input/output
@ 4K)
500mA
200 x 70 x 25mm
305g

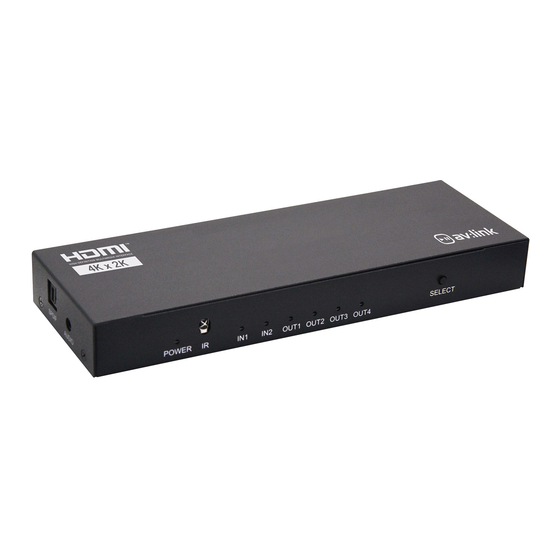

4K HDMI Switch / Splitter 2x4
Item ref: 128.835UK
