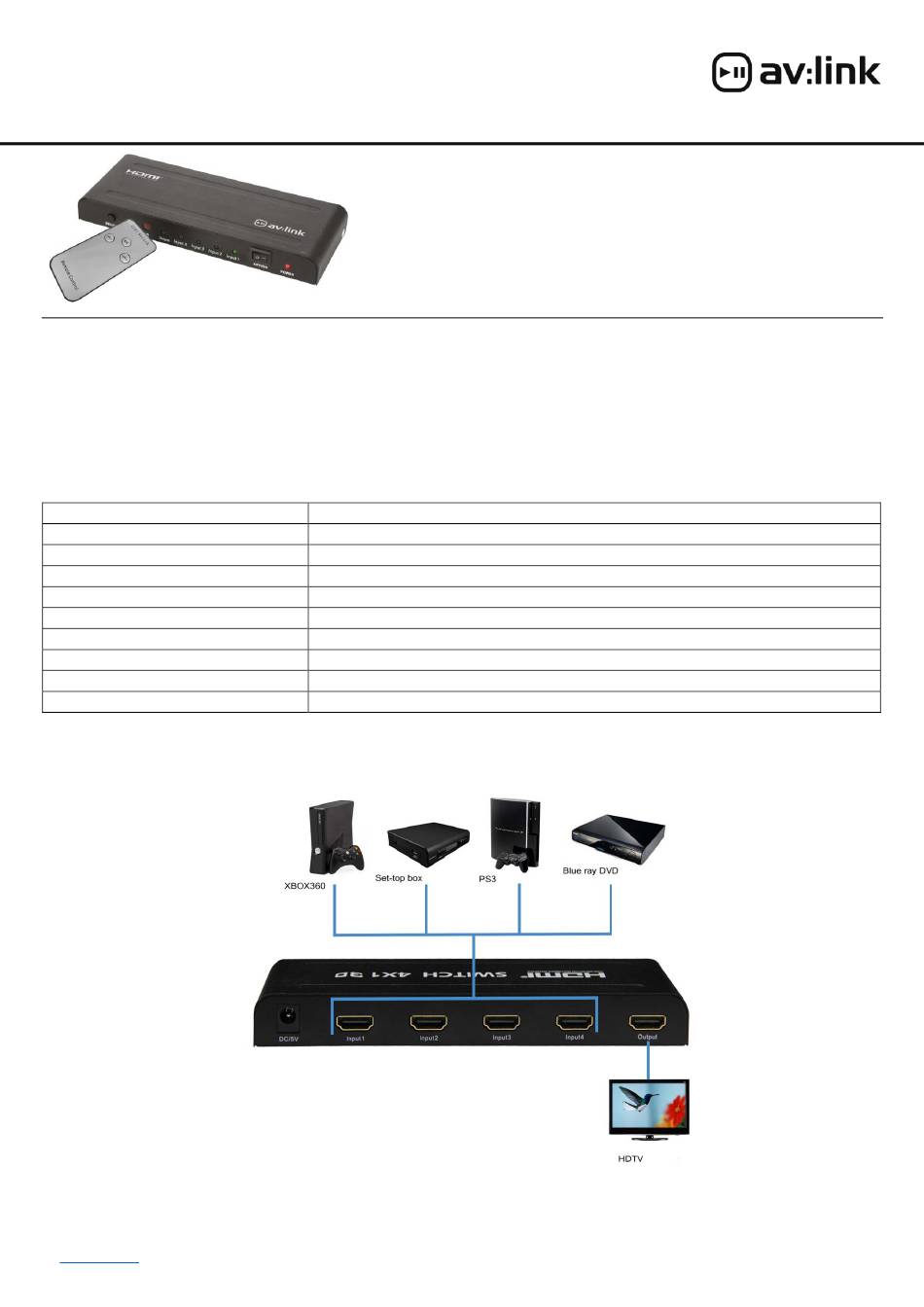

AV Link 128.823UK User Manual

This slimline HDMI switch allows a single display to be connected to up to 4 HDMI input sources and selected
using the IR remote control or buttons on the unit. Gold plated connections ensure optimum signal transfer
and the LED's on the front of the unit keep you informed as to which of the inputs are live at any one time.
This updated version supports a Picture-in-Picture (PiP) function showing previews of all connected devices
and allowing input selection on the main display screen.

Technical Specifications and Features

HDMI Version
Video Format
Audio Format
Operating Temperature Range
Power Adaptor
Max. Bandwidth
Max. Baud Rate
Max. Working Current
Dimensions
Weight

Connection Instructions

• Using an HDMI cable of the required length, connect one end to the output port of the device and the
other up to your display device (max 25m long).
• Then using up to 4 additional HDMI cables connect your source devices to the input ports (max 15m long).
www.avsl.com
4K HDMI 4-Way Switch with Remote Control
1.4b
Up to 4Kx2K @ 30Hz, 24/30/36 bit deep colour
DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
-15 to +55°C
Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
325 MHz
3.2Gbps
300mA
178 x 58 x 20(mm)
220g
Item ref: 128.823UK
User Manual
128.823UK User Manual
