Installation Overview
Before installing the CPE, verify that you have all the items listed in the
"Unpacking" on page 2-1. If any of the items are missing or damaged,
contact your local distributor. Also, be sure you have all the necessary tools
and cabling before installing the CPE.
Cable Connections
Depending on the wiring configuration used in your house, separate wall
jacks may be used for telephone and VDSL services. Otherwise, you will
need to connect telephones and your computer directly to the CPE.
VDSL Line Wall Jack
Standard Telephone Cable
Telephone, Fax, or Modem
RJ-11 Ports
RJ-45 Port

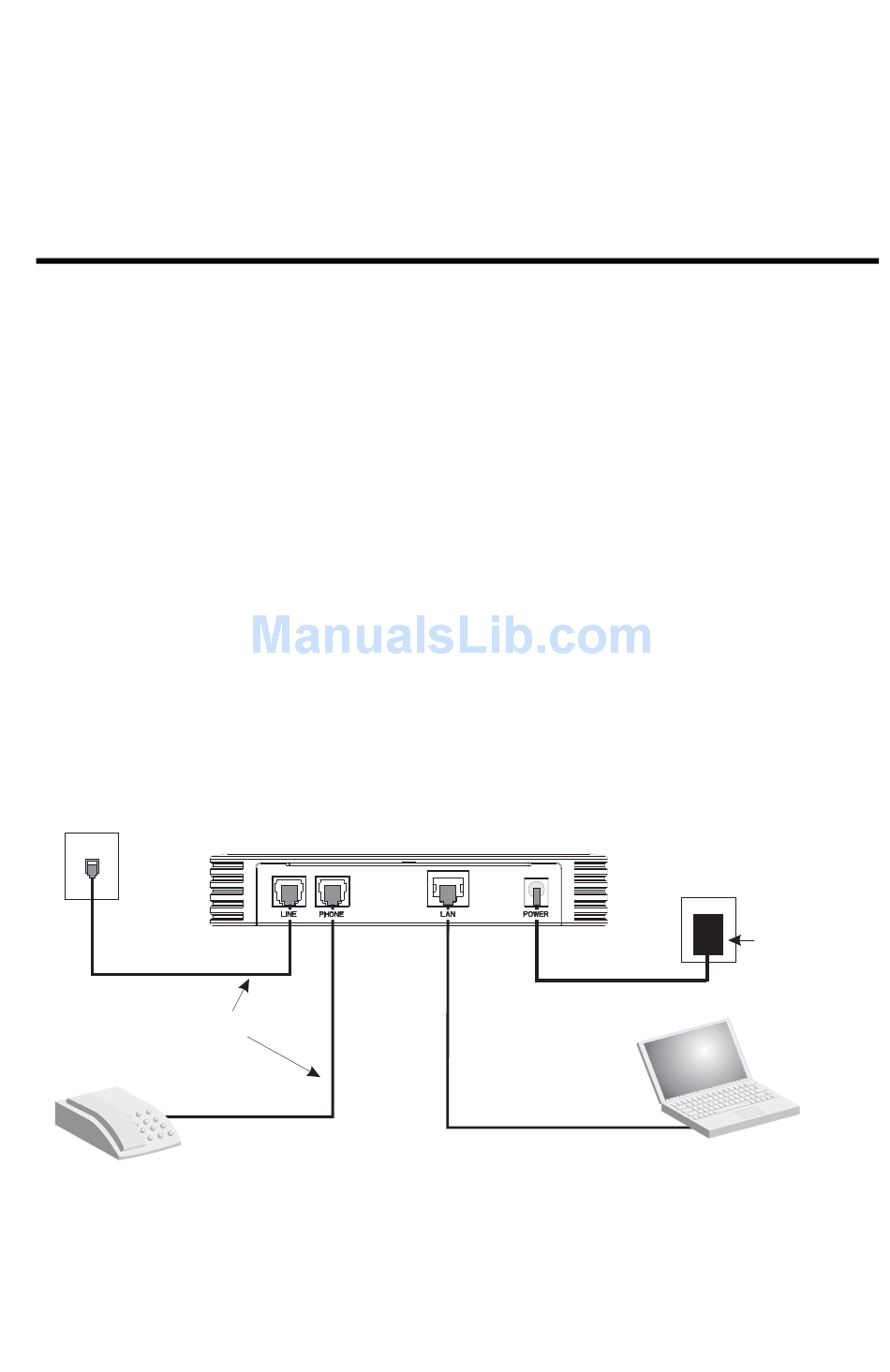

Figure 3-1 Connecting the CPE
C
HAPTER
I
NSTALLATION
Computer
AC Power Outlet
AC Power Adapte
Category 5 UTP cable to
Ethernet port on computer
3
3-1
