H D
ARDWARE ESCRIPTION

Front and Rear Panel

This device is an external VDSL2 CPE for high-speed Internet access
applications. The front panel of the CPE provides an array of system and
port status indicators. The rear panel includes ports for the VDSL line, a
10/100 Mbps Ethernet connection to a computer, and an RJ-11 phone
jack for connection to a telephone. The rear panel also includes a DC
power input jack.

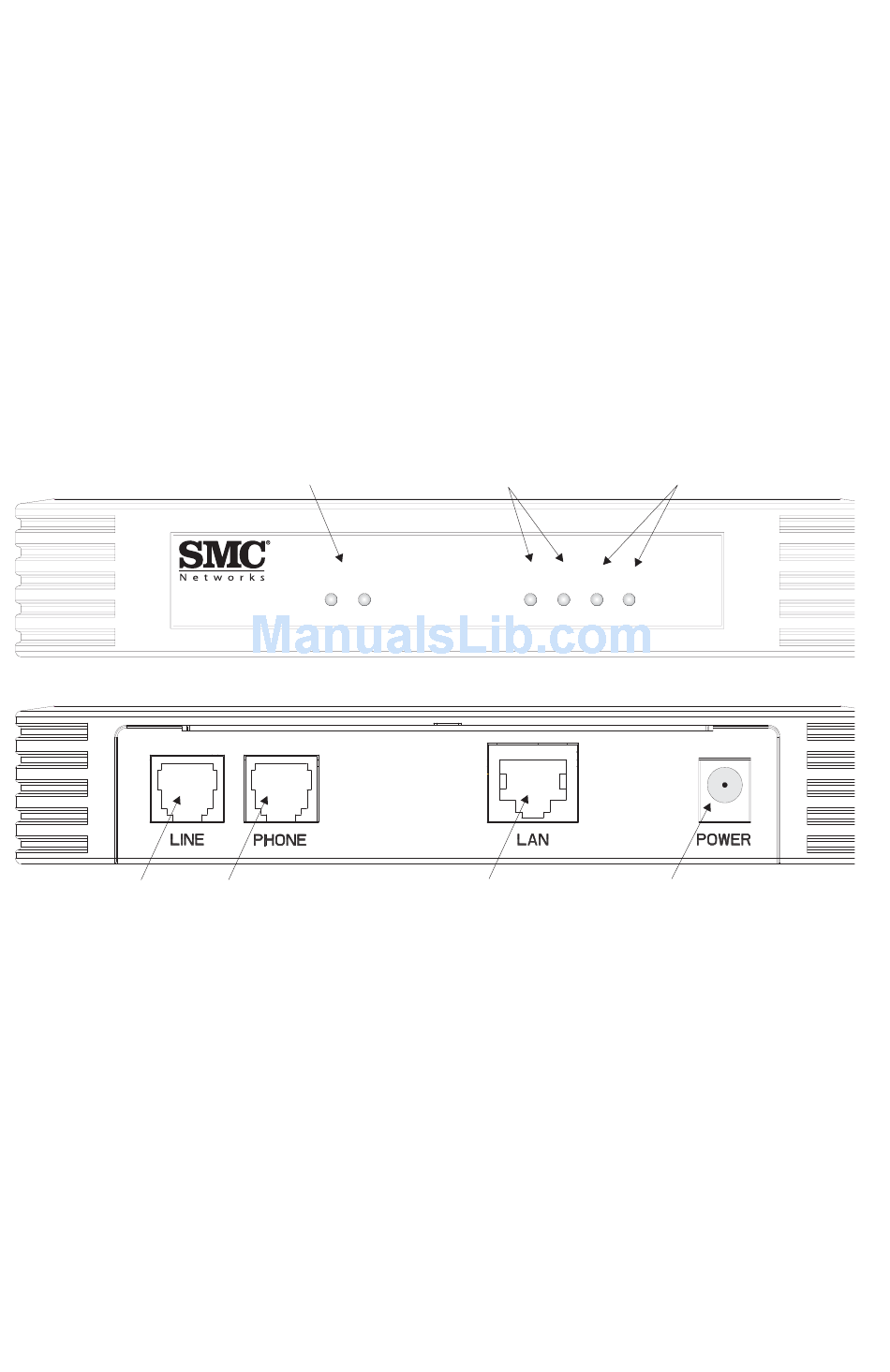

The following figure shows the external components of the CPE:
VDSL Port Phone Port
2-2
System Indicators
-
TigerAccess EE CPE
/
SMC7800A VCP
DIAG POWER
DIP Switches
Figure 2-1 Front and Rear Panels
Ethernet Status
SPEED DUPLEX VDSL
Ethernet Port
Port Link/Activity
LAN
DC Power Jack
