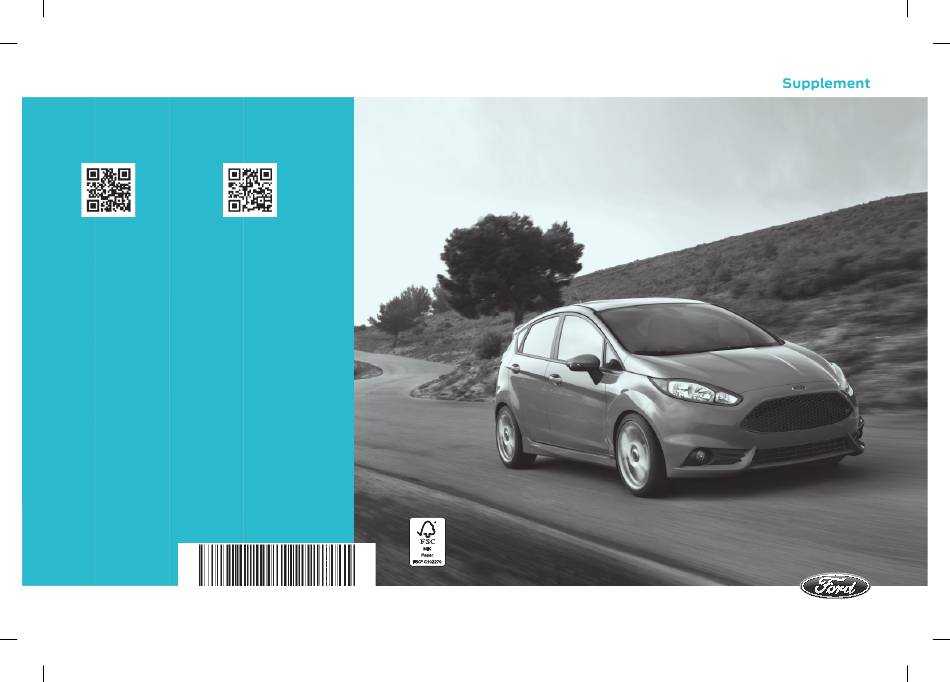

2015 FIESTA ST
fordowner.com
ford.ca
October 2014
Second Printing
Supplement
Fiesta ST
Litho in U.S.A.
FE8J 19A285 AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIESTA ST 2015 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ford FIESTA ST 2015

  • Page 1 2015 FIESTA ST fordowner.com ford.ca October 2014 Second Printing Supplement Fiesta ST Litho in U.S.A. FE8J 19A285 AB...
  • Page 2 This information replaces text found under the Technical Specifications section in the Wheels and Tires chapter. Full Size Spare Spare tire Continental ContiProContact Size 215/50R17 Speed rating Load rating Usage All Season Wheel 17 in. x 7.5 in, 52.5mm offset steel wheel See the Wheels and Tires chapter of your owner's manual for instructions on changing a road wheel.
  • Page 3 No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted. © Ford Motor Company 2014 All rights reserved. Part Number: 20141009193827...
  • Page 5: Table Of Contents

    Table of Contents Using Winter Tires...........21 Introduction Tire Pressure Monitoring System....22 About This Supplement.........3 Changing a Road Wheel......23 Product History..........4 Technical Specifications......25 At a Glance Capacities and Specific- At a Glance............5 ations Motorcraft Parts..........26 Instrument Cluster Technical Specifications......26 Warning Lamps and Indicators - 1.6L EcoBoost .............9 Warranty Terms and...
  • Page 6 Fiesta (CCT) Canada/United States of America, enUSA...
  • Page 7: Introduction

    Introduction you are back. If this is your first Ford ABOUT THIS SUPPLEMENT performance vehicle, welcome to the family! We are confident that our Congratulations on your decision to dedication to performance, quality, purchase or lease the latest from the Ford craftsmanship and customer service will Global Performance Vehicle team –...
  • Page 8: Product History

    The Ford Special Vehicle Team (SVT) was TeamRS subsequently created the 2004 established in 1991 to polish the Ford Oval Fiesta ST, 2005 Focus ST and 2009 Focus by creating low-volume, factory-produced vehicles designed for those select few...
  • Page 9: At A Glance

    • ST-tuned 55 millimeters (2.17 inches) Sport and Disabled exhaust system with dual tips • 17 inch x 7.0 inch wheels with 47.5 • Ford B6 6-speed manual transaxle millimeter offset • Sound symposer • P205/40-R17 Bridgestone RE050A • ST-tuned electric power assisted...
  • Page 10 At a Glance Vehicle Specifications E163960 Item Description Transmission Ford B6 6-speed manual with 228 millimeter clutch and dual mass flywheel Gear ratios Gear Ratio Final drive 3.727 3.82 2.098 3.82 1.357 3.82 1.030 3.82 0.821 3.82 0.690 3.82 Reverse 3.818...
  • Page 11 At a Glance Engine Specifications Item Description Configuration Transversely mounted I4, cast aluminum cylinder block and cylinder heads Bore x stroke 79.0 mm bore x 81.4 mm stroke (3.11 in. x 3.20 in.) Displacement 1597 cubic centimeters (97 cubic inches) Compression ratio 10.0:1 Horsepower...
  • Page 12 At a Glance Item Description Rear spring rate 25 N/mm (143 lb/in) Front stabilizer bar 19 mm (0.75 in) diameter Rear stabilizer bar Not applicable Fiesta (CCT) Canada/United States of America, enUSA...
  • Page 13: Instrument Cluster

    Instrument Cluster WARNING LAMPS AND INDICATORS - 1.6L ECOBOOST Gauges E162329 Tachometer Information display Speedometer Fuel gauge Fiesta (CCT) Canada/United States of America, enUSA...
  • Page 14: Fuel And Refueling

    Fuel and Refueling FUEL QUALITY Use only unleaded gasoline or unleaded gasoline blended with a maximum of 15 percent ethanol in your gasoline vehicle. Do not use: • Fuels containing more than 15 percent ethanol or E-85 fuel. • Fuels containing methanol. •...
  • Page 15: Transmission

    Transmission 2. Fully depress the clutch pedal then MANUAL TRANSMISSION - start the engine. 1.6L ECOBOOST (132KW/ 3. Press the brake pedal and shift the 180PS) - SIGMA, 1.6L gearshift lever to first or reverse gear. ECOBOOST 4. Release the parking brake and slowly release the clutch pedal while slowly Using the Clutch pressing on the accelerator.
  • Page 16 Transmission Note: This is a lockout feature which protects the transmission from accidentally engaging reverse gear when intending to select first gear. E99067 If reverse gear is not fully engaged, press the clutch pedal down and shift the gearshift lever to the neutral position. Release the clutch pedal for a moment, then raise the collar and shift the gearshift lever to reverse again.
  • Page 17: Stability Control

    Stability Control (If Equipped) USING STABILITY CONTROL - 1.6L ECOBOOST The AdvanceTrac system includes traction control and electronic stability control. See the Traction Control and Stability Control chapters of the Owner's Manual for more information. AdvanceTrac provides three modes of operation specially calibrated for your vehicle.
  • Page 18 Stability Control (If Equipped) Enhanced Torque Vectoring Control Enhanced torque vectoring control is comprised of two elements: • Torque vectoring control which applies brake torque on the inner wheel in a curve for better traction and less understeer • Cornering understeer control which controls the yaw response of the vehicle under braking and acceleration on high and low friction surfaces.
  • Page 19: Driving Hints

    Driving Hints care if using automated commercial car BREAKING-IN washes. Do not drive through car washes with the vehicle heavily loaded (multiple Your vehicle does not need an extensive passengers or luggage). Use only break–in. Try not to drive continuously at commercial car washes without the same speed for the first 1000 miles mechanical tracks or hand wash to avoid...
  • Page 20 Driving Hints Note: The overboost feature controls a variety of engine parameters to deliver additional torque. Overboost is built into the engine calibration on your ST vehicle and no action is required by the driver to engage. Fiesta (CCT) Canada/United States of America, enUSA...
  • Page 21: Roadside Emergencies

    When towing with a flatbed, 4x4 blocks may help prevent damage when loading or unloading your vehicle. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. Note: If the vehicle is towed by other means or incorrectly, vehicle damage may occur.
  • Page 22: Maintenance

    Maintenance UNDER HOOD OVERVIEW - 1.6L ECOBOOST E163014 Engine coolant reservoir Engine oil filler cap Engine oil dipstick Battery Brake and clutch fluid reservoir Engine compartment fuse box Windshield and rear window washer fluid reservoir Air cleaner Fiesta (CCT) Canada/United States of America, enUSA...
  • Page 23: Engine Oil Dipstick - 1.6L Ecoboost

    Maintenance ENGINE OIL DIPSTICK - 1.6L ECOBOOST E134114 Minimum Maximum Fiesta (CCT) Canada/United States of America, enUSA...
  • Page 24: Wheels And Tires

    Wheels and Tires • When installing wheels, always torque WHEELS lug nuts to specification with a torque wrench. Your ST vehicle is equipped with unique wheels matched to the tires. These wheels • Inspect your wheels for damage on a are more susceptible to damage due to regular basis.
  • Page 25: Using Winter Tires

    Always maintain your tire pressures winter use on ice or snow and cannot be according to the tire information used with snow chains. Ford does not placard on the driver door jamb, using recommend using the original equipment an accurate gauge.
  • Page 26: Tire Pressure Monitoring System

    Required wheel 205/40 R17 Original equipment ST wheel or equivalent 195/45 R16* Owner supplied. See your Ford dealer for suitable wheels from the Fiesta lineup. * Required size to prevent vehicle damage if snow chain use is required System reset tips:...
  • Page 27: Changing A Road Wheel

    Wheels and Tires 4. Turn the hazard flashers on then off Turn the ignition off. If you hear the three times. You must accomplish this horn sound twice, the reset procedure within 10 seconds. If you have entered was unsuccessful and you must the reset mode successfully, the horn repeat it.
  • Page 28 Wheels and Tires The following table lists the specifications should match those of the originally for the full size spare tire and wheel equipped tires as closely as possible. assembly. Tire speed and load ratings Spare tire Size 185/60 R15 Speed rating Load rating Usage...
  • Page 29: Technical Specifications

    Make sure that any Torque specifications are for nut and bolt fasteners that attach the rotor to the hub threads free of dirt and rust. Use only Ford are secured so they do not interfere with recommended replacement fasteners.
  • Page 30: Capacities And Specifications

    *Only use the specified replacement engine oil filter. The use of a non-specified oil filter can result in engine damage. TECHNICAL SPECIFICATIONS Item Capacity Ford part name or Ford part number / equivalent Ford specification Between MAX and Motorcraft DOT 4 LV...
  • Page 31 WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may cause brake system damage. Your engine has been designed to use engine oil that meets Ford specification or an equivalent engine oil of the recommended viscosity grade that displays the API Certification Mark for gasoline engines.
  • Page 32: Warranty Terms And Conditions

    Ford Fiesta models. This information is covered in its entirety in the warranty information. You can obtain warranty service for your ST vehicle or any ST vehicle at any Ford dealer nationwide. Ford Global Performance does not recommend modifying or racing ST, SVT...
  • Page 33 Index Introduction............3 About This Supplement.........3 At a Glance............5 Lug Nuts Engine Specifications..........7 See: Changing a Road Wheel......23 Suspension Specifications........7 Vehicle Specifications...........6 Maintenance.............18 Manual Transmission - 1.6L EcoBoost Base Warranty..........28 (132kW/180PS) - Sigma, 1.6L Breaking-In............15 EcoBoost ............11 Parking Your Vehicle..........12 Recommended Shift Speeds......11 Reverse...............11 Capacities and Specifications....26 Using the Clutch.............11...
  • Page 34 Index Transmission See: Transmission..........11 Under Hood Overview - 1.6L EcoBoost ............18 Using Stability Control - 1.6L EcoBoost .............13 Enhanced Torque Vectoring Control....14 Using Winter Tires...........21 Warning Lamps and Indicators - 1.6L EcoBoost ............9 Gauges................9 Warranty Terms and Conditions....28 Wheel Nuts See: Changing a Road Wheel......23 Wheels and Tires...........20 Technical Specifications........25...
