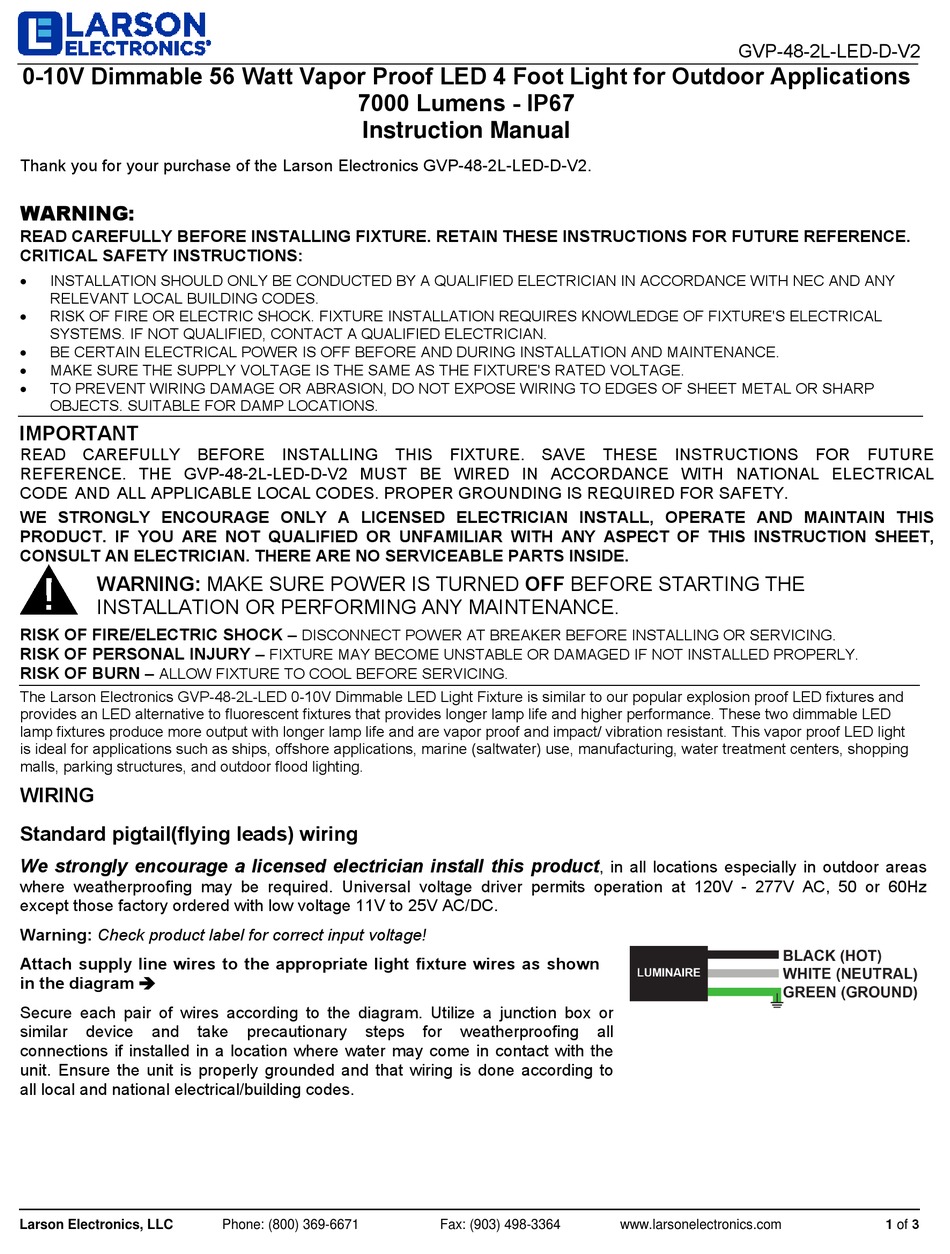

Larson Electronics GVP-48-2L-LED-D-V2 Instruction Manual

0-10V Dimmable 56 Watt Vapor Proof LED 4 Foot Light for Outdoor Applications
Thank you for your purchase of the Larson Electronics GVP-48-2L-LED-D-V2.
WARNING:
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CRITICAL SAFETY INSTRUCTIONS:
• INSTALLATION SHOULD ONLY BE CONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY
RELEVANT LOCAL BUILDING CODES.
• RISK OF FIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL
SYSTEMS. IF NOT QUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.
• BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.
MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.
•
• TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP
OBJECTS. SUITABLE FOR DAMP LOCATIONS.
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE GVP-48-2L-LED-D-V2 MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL
CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.

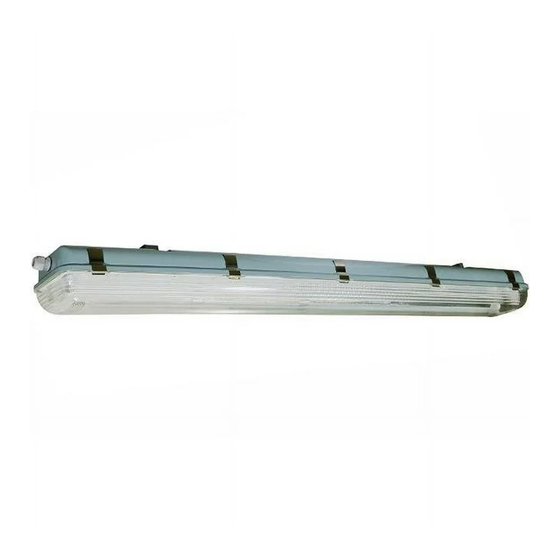

The Larson Electronics GVP-48-2L-LED 0-10V Dimmable LED Light Fixture is similar to our popular explosion proof LED fixtures and
provides an LED alternative to fluorescent fixtures that provides longer lamp life and higher performance. These two dimmable LED
lamp fixtures produce more output with longer lamp life and are vapor proof and impact/ vibration resistant. This vapor proof LED light
is ideal for applications such as ships, offshore applications, marine (saltwater) use, manufacturing, water treatment centers, shopping
malls, parking structures, and outdoor flood lighting.

WIRING

Standard pigtail(flying leads) wiring
We strongly encourage a licensed electrician install this product
where weatherproofing may be required. Universal voltage driver permits operation at 120V - 277V AC, 50 or 60Hz
except those factory ordered with low voltage 11V to 25V AC/DC.
Warning: Check product label for correct input voltage!
Attach supply line wires to the appropriate light fixture wires as shown
in the diagram 
Secure each pair of wires according to the diagram. Utilize a junction box or
similar device and
connections if installed in a location where water may come in contact with the
unit. Ensure the unit is properly grounded and that wiring is done according to
all local and national electrical/building codes.
Larson Electronics, LLC
7000 Lumens - IP67
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
take precautionary steps
Phone: (800) 369-6671
, in all locations especially in outdoor areas
for weatherproofing all
Fax: (903) 498-3364
GVP-48-2L-LED-D-V2
www.larsonelectronics.com
1 of 3
