Larson Electronics RCL700 Instructions And Operator’s Manual

Troubleshooting
If your RCL700 stops operating, please check for the following conditions:
1. Check the batteries in the wireless remote.
2. The inrush current for an incandescent lamp is typically ten to fifteen times the operating
current and an HID switching power supply inrush current can be even greater. This high
inrush current can cause a severe voltage drop if the power feed wires are long, under size or
the power supply is weak. This may cause the receiver circuit to enter a low voltage shutdown
state. It is recommended to only turn on the lights while the vehicle is running. The power to
the RCL700 needs to be cycled off and back on to reset the shutdown circuit.
3. The motor control circuit is overcurrent and over temperature protected in the event the light
is jammed against an imovable object. The power to the RCL700 will need to be cycled off
and back on to reset the overcurrent/over temperature circuit.
Larson Electronics, LLC. (RCL700 rev 07-27-2018)

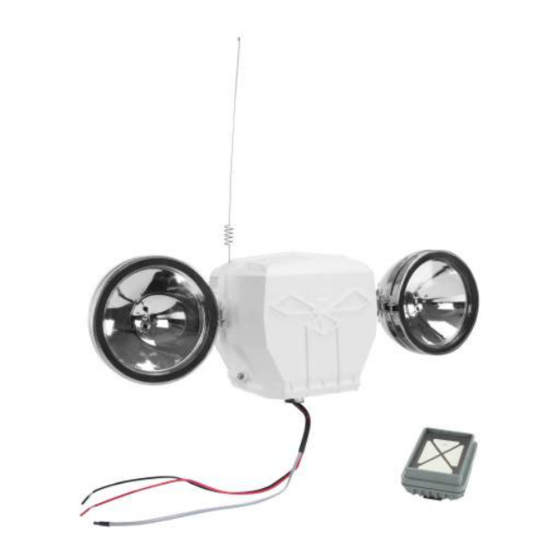

Remote Control Spotlight
Instructions and Operator's Manual
Contact Larson Electronics
For questions, sales or service please contact:
Phone: 800-369-6671
Fax: 903-498-3364
Email: sales@larsonelectronics.com
Web: www.larsonelectronics.com
Address: Larson Electronics, LLC.
9419 US-HWY 175
Kemp, Texas 75143
USA
