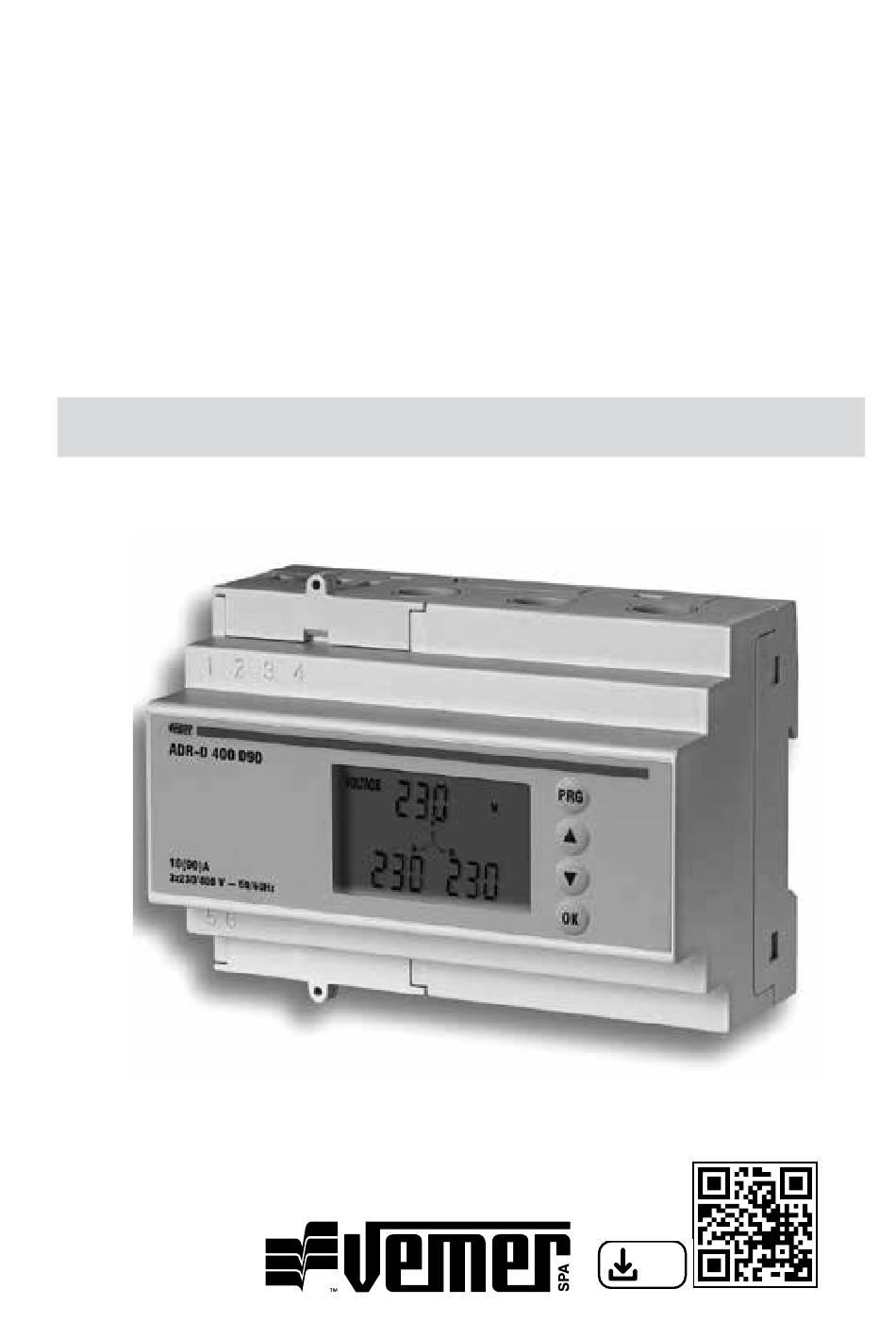

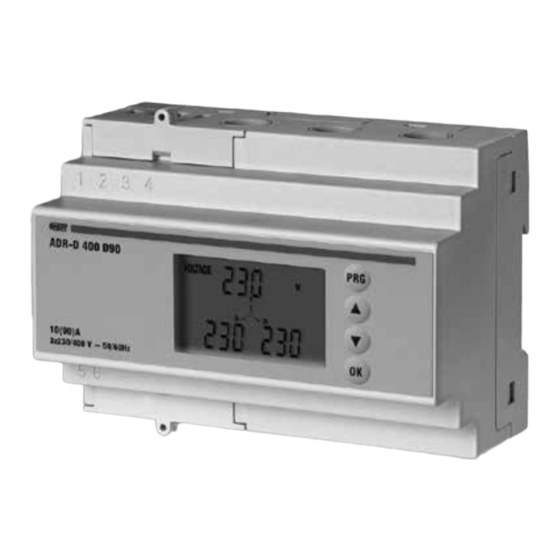

- Page 1 ANALIZZATORE DI RETE TRIFASE 90A ADR-D 400 D90 Manuale d’Uso User Manual THREE-PHASE NETWORK ANALYSER 90A...
- Page 3 19 Dimensions pag. 19 Installation pag. 20 Selecting programming parameters pag. 21 Reading of quantities pag. 24 Serial output RS 485 pag. 26 Error messages pag. 27 Reference standards pag. 28 - 15 - User Manual - ADR-D 400 D90...
-
Page 4: Safety Instructions
7) Do not power or connect the device if any part of it is damaged. NOTE: Network analyzer ADR-D 400 D90 is aimed for use in places with over- voltage category III and pollution degree, 2 as per EN 61010-1... -
Page 5: Technical Specifications
• Operating temperature: -10 °C ÷ 45 °C • Storage temperature: -10 °C ÷ 60 °C • Relative humidity: 10% ÷ 90% non condensing • Protection rating: IP20/IP51 on the front - 17 - User Manual - ADR-D 400 D90... - Page 6 • Power factor (cos ) − Accuracy: ±1% ± 1 digit − Resolution: 0,01 • Frequency − Accuracy: ±0,1 Hz ± 1 digit (from 47 Hz a 63 Hz) − Resolution: 0,1 Hz - 18 - User Manual - ADR-D 400 D90...
-
Page 7: Dimensions (Mm)
Through holes for direct current connection to L1, L2, L3 Key to be used to confirm and view system quantities Previous page Key Next page key Programming key DIMENSIONS (mm) FRONT VIEW SIDE VIEW 125.7 - 19 - User Manual - ADR-D 400 D90... -
Page 8: Installation
In case of a connection error, the display will indicate which phase or phases are misconnected (cfr. “ERROR MESSAGES – MISCONNECTION” ). - 20 - User Manual - ADR-D 400 D90... - Page 9 “NO” (backlighting off) or “TIME” (backlighting ON for 60s after any key is pressed) • Press the OK key to confirm the selection and move on to the next page (Zeroing Active Energy meter) - 21 - User Manual - ADR-D 400 D90...
- Page 10 • Press the PRG key to select the digit to be altered (units, tens, hundreds) • Press the key to select the value • Press the OK key to confirm the address and move on to the next page (RS-485 communication speed) - 22 - User Manual - ADR-D 400 D90...
- Page 11 • Press the OK key to confirm and exit programming (all the display segments will be viewed for 2 seconds. Then the main page will be displayed) - 23 - User Manual - ADR-D 400 D90...
- Page 12 To view the system quantities or the energy for every single phase (active or reactive), press the OK key. Main page (system power, voltage and current) Phase voltage System voltage Voltage between lines (chain) - 24 - User Manual - ADR-D 400 D90...
- Page 13 Phase reactive power System reactive power Phase power factor (*) System power factor (*) Depending on load type, “c” stands for capacitive power factor, whereas “L” stands for inductive phase shift - 25 - User Manual - ADR-D 400 D90...
- Page 14 Frequency SERIAL OUTPUT RS 485 The ADR-D 400 D90 has an isolated RS 485 serial output. • The data communication system is based on MODBUS protocol (RTU coding system) and can be connected to a Master system (PC/PLC...) on a common RS 485 line: −...
-
Page 15: Error Messages
V2 > 266V I1 and I3 > 95A The device resumes correct value readings when voltage and/or current get back into the admitted ranges (V ≤ 253 and I ≤ 90A respectively). - 27 - User Manual - ADR-D 400 D90... -
Page 16: Configuration Error
An efficient sorted waste collection for the environmentally friendly disposal of the used device, or its subsequent recycling, helps avoid the potential negative effects on the environment and people’s health, and encourages the re-use and/or recycling of the construction materials. - 28 - User Manual - ADR-D 400 D90... - Page 18 Vemer S.p.A. I - 32032 Feltre (BL) Via Camp Lonc, 16 07-2023 e-mail: info@vemer.it - web site: www.vemer.it...
