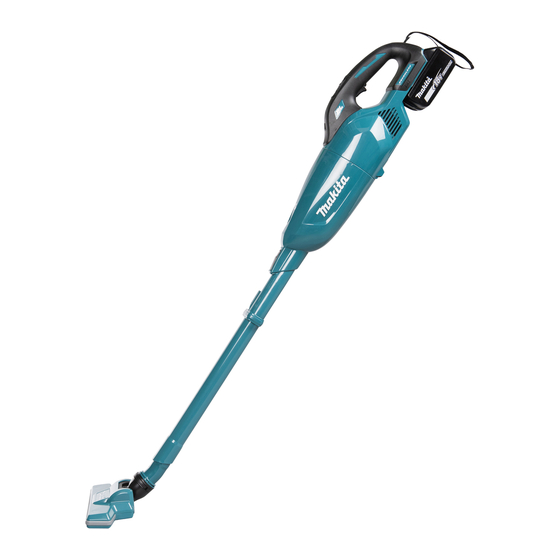

Cordless cleaner
Hide thumbs Also See for DCL283F:


Quick Links

Cordless Cleaner
Read before use.


Table of Contents

Summary of Contents for Makita DCL283F

  • Page 1 INSTRUCTION MANUAL Cordless Cleaner DCL283F Read before use.
  • Page 2: Specifications

    Do not short the battery cartridge. • See the chapter “MAINTENANCE” for the appropriate details of precautions during user maintenance. SPECIFICATIONS Model: DCL283F Capacity 730 mL Continuous use (with battery BL1830B) Approx. 10 min Overall length (with pipe, nozzle, and battery BL1830B)
  • Page 3: Safety Warnings

    19. Do not use a battery pack or appliance that Intended use is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour The tool is intended for collecting dry dust. resulting in fire, explosion or risk of injury. 20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause SAFETY WARNINGS explosion.
  • Page 4 A battery short can cause a large current also void the Makita warranty for the Makita tool and flow, overheating, possible burns and even a charger. breakdown. Do not store and use the tool and battery car-...
  • Page 5: Functional Description

    If no improvement can be found by restoring protection system, then contact your local Makita Service Center. To remove the battery cartridge, slide it from the tool Indicating the remaining battery while sliding the button on the front of the cartridge.
  • Page 6 When the slide switch is set to "I" side: Indicator lamps Remaining While the slide switch is set to "I" side, the switch trig- capacity ger is pulled automatically and the cleaner continues actuating. To stop the cleaner, set the slide switch to "O" Lighted Blinking side and release the switch trigger.
  • Page 7 NOTE: Do not install an optional filter (non-woven ASSEMBLY cloth) between the HEPA filter and prefilter. The suc- tion power may be reduced. CAUTION: Always be sure that the tool is NOTE: Always use the high performance filter that is switched off and the battery cartridge is removed framed with an originally-designed stay when overlay- ing it on the HEPA filter. before carrying out any work on the tool. Parts description Optional accessory High performance filter and stay and...
  • Page 8 Point suction inlet downwards, turn capsule in direction Reassembly of arrow in diagram, and disconnect capsule slowly and straight. Connect high performance filter. At this time, make sure to twist high performance filter so that securing lip is firmly locked into the cleaner unit. Fig.11 ► 1 . Capsule 2. Suction inlet Fig.14 NOTE: Dust may spill out when capsule is opened, so ► 1 . High performance filter be sure to set a garbage bag beneath capsule.
  • Page 9 For the HEPA filter NOTE: Always remove dust ahead of time, as suction power will be reduced if there is too much dust in When installing the HEPA filter, fit the groove of the cleaner. HEPA filter with the protrusion on the cleaner. Then, put the prefilter or the high performance filter on the HEPA Problem Example filter and twist it to secure. To remove, follow the instal- The securing lip of high performance filter is not firmly lation procedure in reverse. locked into groove of cleaner housing. Fig.17 ► 1 .
  • Page 10: Operation

    When using attachment without lock OPERATION function CAUTION: Do not move your face close to CAUTION: To connect attachment without the air vent when operating the cleaner. If foreign lock function, twist and insert it in direction of objects are blown into eyes, it may result in personal the arrow to secure the connection during use. injury.
  • Page 11 Nozzle + Extension wand (Straight pipe) Sash nozzle + Extension wand (Straight pipe) The extension wand fits in between the nozzle and the cleaner itself. This arrangement is convenient for clean- In tight quarters where the cleaner itself cannot ing a floor in a standing position. squeeze in, or in high places hard to reach, use this arrangement.
  • Page 12: Maintenance

    To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. After use CAUTION: Putting the cleaner against the...
  • Page 13 Sponge filter Wall mount for cordless cleaner When the sponge filter becomes dirty, clean it as Optional accessory follows. Remove filters that cover the stay. NOTE: The screw to mount the holder is not included. Prepare a screw which fits with the material to screw Pull out the sponge filter from between the pillars. into. Clean the sponge filter by tapping or washing. If Attach the wall mount for cordless cleaner to a hard you wash it, dry it out thoroughly before use. wooden wall, beam or column, where the wall mount Insert the sponge filter between the pillars and set for cordless cleaner can be firmly secured. Always be...
  • Page 14: Optional Accessories

    OPTIONAL ACCESSORIES Optional accessory CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
  • Page 15 NOTE: Check that the cyclone attachment, cleaner, NOTE: Check that the cyclone attachment, cleaner, and extension wand (straight pipe) are locked prop- and extension wand (straight pipe) are locked prop- erly before use. erly before restarting operation. NOTE: Empty the dust case of the cyclone attach- NOTE: If the suction force does not recover even ment and the capsule of the cleaner when dust has after disposing of the dust and cleaning the mesh...
  • Page 16 Fig.41 ► 1 . Mesh filter 2. Hook Fig.42 ► 1 . Mesh filter 2. Hook 3. Port Jan-Baptist Vinkstraat 2, Makita Europe N.V. 3070 Kortenberg, Belgium 3-11-8, Sumiyoshi-cho, Makita Corporation Anjo, Aichi 446-8502 Japan 885A24-227
