Prunus J-401 User Manual

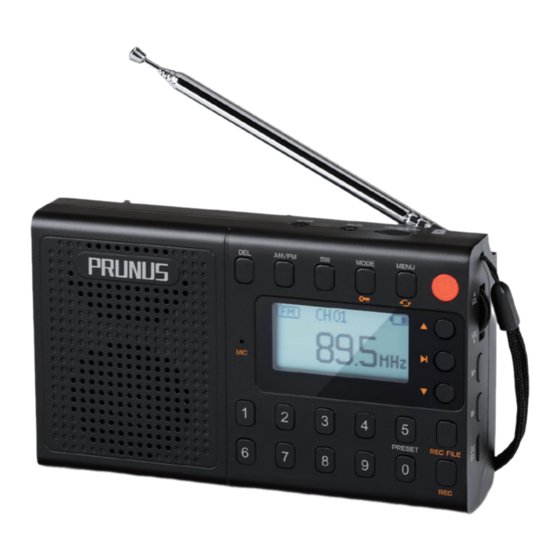

Am/fm/sw digital radio
Hide thumbs

Advertisement

Table of Contents

EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J-401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prunus J-401

Summary of Contents for Prunus J-401

  • Page 2 PRUNUS J-401 AM/FM/SW Digital Radio User Manual PREFACE Thank you for purchasing PRUNUS J-401 digital radio. In order to get the best from the radio please read this manual carefully before using it and take special notice of the section on precautions.

  • Page 3: Table Of Contents

    Ⅰ PRECAUTIONS Ⅱ PRODUCT INTRODUCTION 1. Product Specifications 2. Functional Components Ⅲ POWER SUPPLY 1. Battery Installation 2. Charging Method Ⅳ HOW TO USE 9-19 1. Radio Settings 2. Radio Reception 10-12 3. Save and Delete the Channel Manually 4. Two Ways of Music Playing 14-15 5.

  • Page 4: Precautions

    Ⅰ PRECAUTIONS 1. You’re supposed to long press the power switch to turn 　 　the radio on or off. However, given that during the setting, 　the sudden shutdown will cause the loss of the data you 　have set, so we have thoughtfully made a design that in 　 　radio system and MP3 playback setting, the radio cannot 　be turned off.

  • Page 5: Product Introduction

    Ⅱ PRODUCT INTRODUCTION 1. Product Specifications 1) Mode No: J-401 2) Memory Support of Recording&MP3 Playback: TF Card (Up to 32G) 3) Screen Resolution: 128 x 64dpi 4) Audio Format: MP3, WMA 5) Band: AM: 520 - 1710KHz; FM: 87 – 108MHz;...

  • Page 6: Functional Components

    ② Front： ① ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑮ ⑭ ⑬ Right： ⑯ ⑰ ⑱ ⑲ ⑳ ㉓ ㉒ ㉑ Top： ㉔ Back： J-401 AM FM SW Digital Radio FM:87-108MHz AM:520-1710KHz SW:4.75-21.45MHz MP3 Music Playing Three Recording Way ㉕...
  • Page 7 ① ON/OFF ② MENU ③ MODE/Lock Button ④ SW ⑤ AM/FM ⑥ DEL: Delete ⑦ Next ⑧ Play/Pause/Scan/Confirm ⑨ Previous ⑩ PRESET/Number Button 5 ⑪ REC FILE: Recording File ⑫ REC: Recording ⑬ Number Buttons 0-9 ⑭ MIC: Microphone ⑮ Speaker ⑯...

  • Page 8: Power Supply

    　Once fully charged, it’s recommended to continue charging for 1-2 hours to 　　　 　ensure the max power of the battery. d. If an adapter is important for you, please send message “PRUNUS Charger” to 　 　E-mail: wanwanus@outlook.com (reply in 1 working day) to get PRUNUS quality...

  • Page 9: How To Use

    Ⅳ HOW TO USE Long press <①ON/OFF> to turn the radio on. (For convenience， please set your language first.) 1. Radio Settings Step 1: Long press <②MENU> to setting interface. (During setup, long pressing <②MENU> can back to menu homepage.) Step 2: Press to select, and to confirm.

  • Page 10: Radio Reception

    2. Radio Reception Step 1: Pull out the telescopic antenna. Step 2: Short press <④SW> or <⑤AM/FM> to choose SW, AM or FM. 1) How to Search the Channels Automatically? A. Search with Button Long press to automatically search, store and number the channels.
  • Page 11 2) How to Search the Channels Manually? A. Input the radio channel directly. E.g. If the channel you want to listen to is 90.5MHz, then you could press the number keys 9 + 0 + 5 in order and short press to confirm, or wait for 5s, then the radio will automatically play the channel 90.5MHz.
  • Page 12 3) How to Get Better Reception? A. Adjust the telescopic antenna while listening to FM/SW, 　but reposition the radio while listening to AM. B. When you’ re indoors, reposition the radio, or approach it to the 　 　window and try to keep it away from the electronic devices, such as computer, TVs, refrigerators, mobile phones, etc.

  • Page 13: Save And Delete The Channel Manually

    3. Save and Delete the Channel Manually 1) How Can I Save the Channel Manually? Step1: Long press <⑩PRESET/Number Button 5> and “CH00” will 　 　 flash on the display. Step2: Input the number you like, such as 10. Step3: Short press to confirm.

  • Page 14: Two Ways Of Music Playing

    4. Two Ways of Music Playing 1) Played by TF Card 　　　 Step1: Insert the TF card loaded with MP3 or WMA files into <㉑ 　　　 TF-CARD>.If lyrics display is neccessary for you, then you should 　　　 insert the TF card loaded with both MP3/WMA files and LRC files. Step2: Short press <③MODE>...
  • Page 15 2) Played by AUX Step1: Insert one end of the AUX cable into “AUX” jack of the radio and 　 the other end into the earphone jack of your mobile phone or 　 computer. Step1: Open the music app/software on your phone to play the music. ㉒AUX Tips : You can also switch the AUX playing to AM/FM/SW by short pressing...

  • Page 16: Recording Function

    5. Recording Function 1) How Can I Make a Recording? A TF card is required for sound recording. So please insert the TF card into <⑳TF-CARD> first, and then start to make a recording. A. Recording an External Sound Step1: Short press <③MODE>. Step2: Long press <⑫REC>...
  • Page 17 C. Recording an AM/FM/SW Channel Step1: Short press <⑤AM/FM > or <④SW> to “AM”, “FM” or “SW”. Step2: Long press <⑫REC> to record the sound. Step3: Short press <⑫REC> to finish the recording. CH00 90.5 Tips : a. In the process of recording, short press to pause the recording.
  • Page 18 2) How Can I Get My Recording File? Step1: Short press < ⑪REC FILE >. Step2: Short press to choose the recording file you want to play. 　　　 Or input the serial number of the file directly and wait for 5s, 　 　　...

  • Page 19: Other Functions

    6. Other Functions 1) Silent Mode With the radio on, in any mode, short press and then a silent icon will flash on the display, which means the CH00 90.5 radio has been muted. Short pressing again will cancel the silent mode.

  • Page 20: After-Sale Service

    　“Ask a question” and log into Amazon to contact us. 　 We will provide you with the best service. 2. You can also send your messages to our customer 　　 　 service e-mail: prunus-technik@hotmail.com 3. America Local Customer Support Number: (805) 712-2661...
