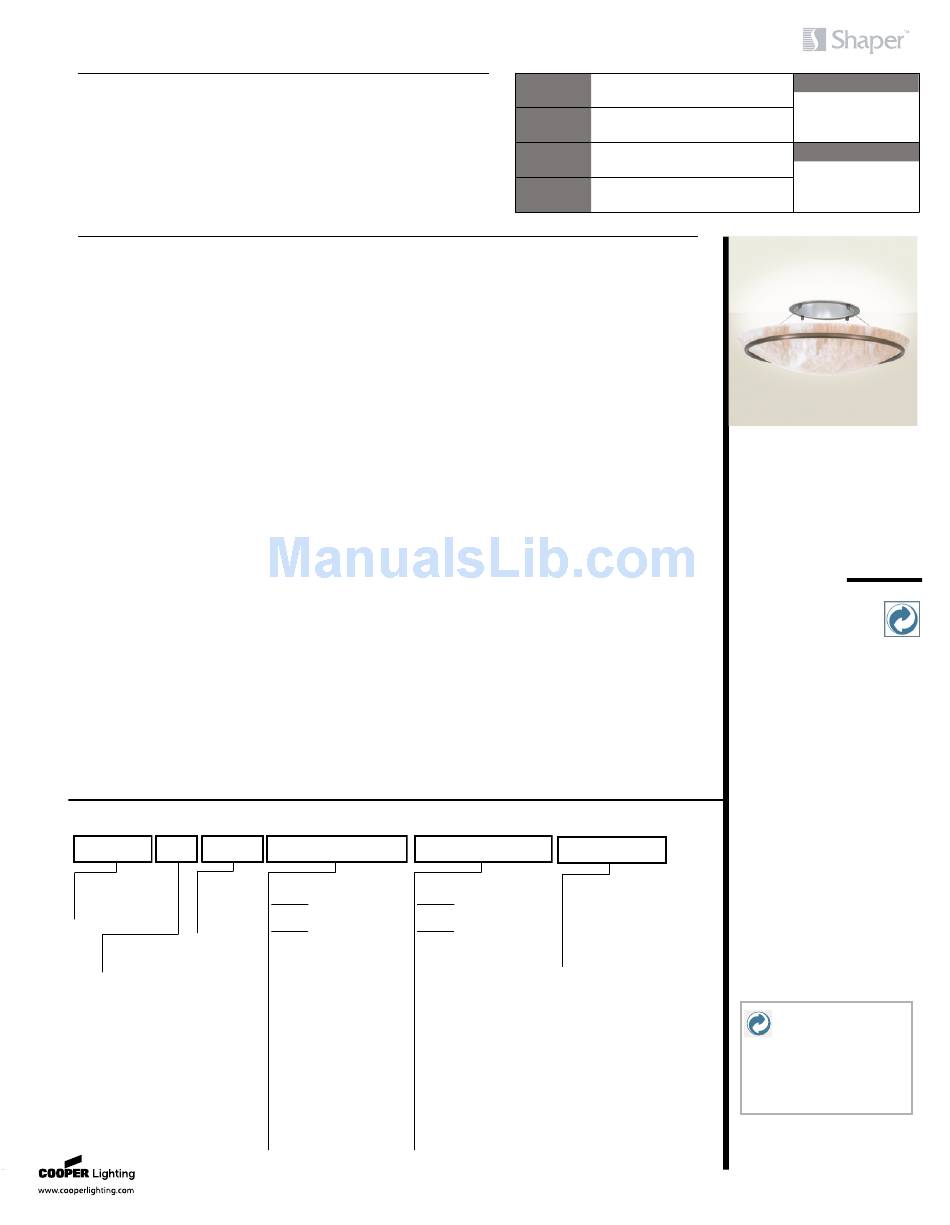

Cooper Lighting Shaper 498-RP-TR Series Specification

DESCRIPTION

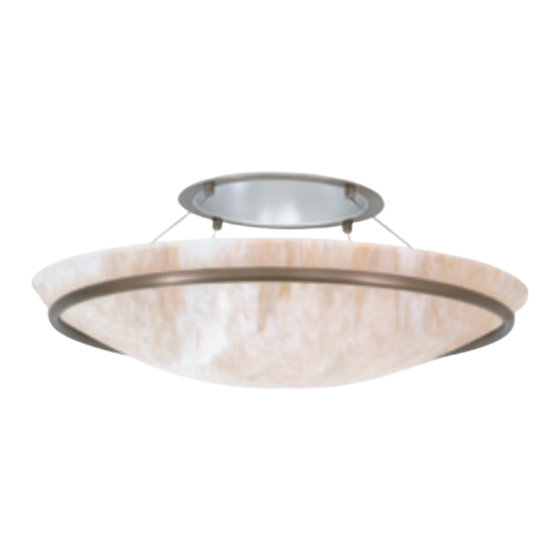

498-RP-TR features a 24" Luminous Hand Crafted Textured Glass Pendant
designed for low ceiling applications with C82428350 horizontal downlight
by Portfolio(TM).
SPECIFICATION FEATURES
Material
Pendant: 24" Dia. textured bowl,
hand-crafted, Kokomo art glass.
Hand fused to an opaque white
glass for structure and lamp
uniformity. Solid brass, cold-rolled
steel or aluminum cable finials or
trim ring. Solid aluminum
mounting ring and hardware with
cable and four aircraft cable
attachments.
Downlight: Portfolio(TM) one piece
precision die cast aluminum 1-1/2"
deep collar accommodates varying
dimensions of ceiling materials.
Precisely formed one piece, clear
Alzak®, non-imaging optical
reflector ensures 55° cut-off to
lamp and lamp image.
Finish
Finials/Trim
Standard: Matte White (MW)
Premium: Natural Aluminum (NA)
[Sustainable Design], Lacquered
Satin Aluminum (SAL), Satin
Chrome (SC), Lacquered Satin
Chrome (SCL), Polished Chrome
(PC), Satin Nickel (SN), Lacquered
Satin Nickel (SNL), Polished Nickel
(PN), Oxidized Brass (OBRS), Satin
Brass (SB), Polished Brass (PB),
Satin Copper (SCP), Polished
Copper (PCP), Oxidized Copper
(OCP), Gun Metal (GNM),
ORDERING INFORMATION
498-RP-TR-CFL/2-120V-SC-SC-WG
Sample Number:
Voltage
Series
120V
= 24"
498-RP-TR
Pendant
277V
347V
Lamp
CFL/2 (26/32/42W-Triple)
Finish (Con't.)
or Custom Colors (CC). Contact
factory for damp location.
Glass Colors: Textured Warm
White Glass (WG) or Textured
Carmel Swirl Glass (CG).
Optics
Refer to www.shaperlighting.com
for complete photometrics.
Ballast
One (1) integral, multi-voltage
(120V/277V), electronic CFL (347V
Canada) ballast for a 26W, 32W or
42W CFL lamps. Provides flicker
free and noise free operation and
starting.
Lamp/Socket
Two (2) 26W, 32W (GX24q-3) or
42W (GX24q-4) 4-pin triple CFL
lamps. Universal 4-pin CFL socket
injection molded plastic with
fatigue free stainless steel lamp
spring ensures positive lamp
retention. Lamps furnished by
others.
Installation
Decorative trim/finial/bowl
assembly is securely suspended
from the mounting ring by four
stainless steel cables (provided).
Listed for eight #12AWG (four in,
four out) 90°C conductors feed
Finish/Trim/Finial Trim/Hardware Finish
Standard Standard
MW Matte White = MW Matte White
Premium Premium
CC Custom Color = CC Custom Color =
NA Natural Aluminum = NA Natural Aluminum
PB Polished Brass = PB Polished Brass =
PC Polished Chrome = PC Polished Chrome =
PCP Polished Copper = PCP Polished Copper
=
PN Polished Nickel PN
=
OBRS Oxidized Brass OBRS Oxidized Brass
SAL Lacquered Aluminum SAL Lacquered Aluminum
=
SB Satin Brass = SB Satin Brass =
SC Satin Chrome = SC Satin Chrome =
SCL Lacquered Satin Chrome = SCL Lacquered Satin Chrome
SCP Satin Copper = SCP Satin Copper
SN Satin Nickel = SN Satin Nickel =
SNL Lacquered Satin Nickel = SNL Lacquered Satin Nickel
OCP = Oxidized Copper OCP = Oxidized Copper
GNM= Gun Metal GNM= Gun Metal
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Installation (Con't.)
through branch wiring. One 1/2"
and two 3/4" pry outs. Positioned
to allow straight conduit runs.
Access to junction box by
removing reflector. Accepts 1/2"
EMT, C Channel, T-bar fasteners,
and bar hangers. Adjusts 5"
vertically from above or below
ceiling. Positive reflector
mounting, without tools, pulls trim
tight to ceiling. No measuring,
cutting or adjustment of cables is
required to achieve standard
overall height and level mounting.
Contractor to provide appropriate
structural support for the fixture's
weight.
Options
Refer to the downlight spec sheet
for options, MH Lamping - Contact
factory.
Labels
U.L. and C.U.L. listed. Downlight is
standard damp label.
Modifications
Contact the factory regarding scale
options, unique finishes,
mounting, additional
materials/colors, or decorative
detailing.
Glass Color
WG = Textured
=
Warm White
Glass
CG = Textured
Carmel Swirl
=
Glass
=
=
Polished Nickel
=
=
=
=
=
shaperlighting.com
Type
Date
498-RP-TR
SERIES
Recessed Pendant Luminaire
Luminous
Hand-Crafted, Textured
Glass Bowl
SUSTAINABLE
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
Refer to the Icon Legend
Link on shaperlighting.com.
