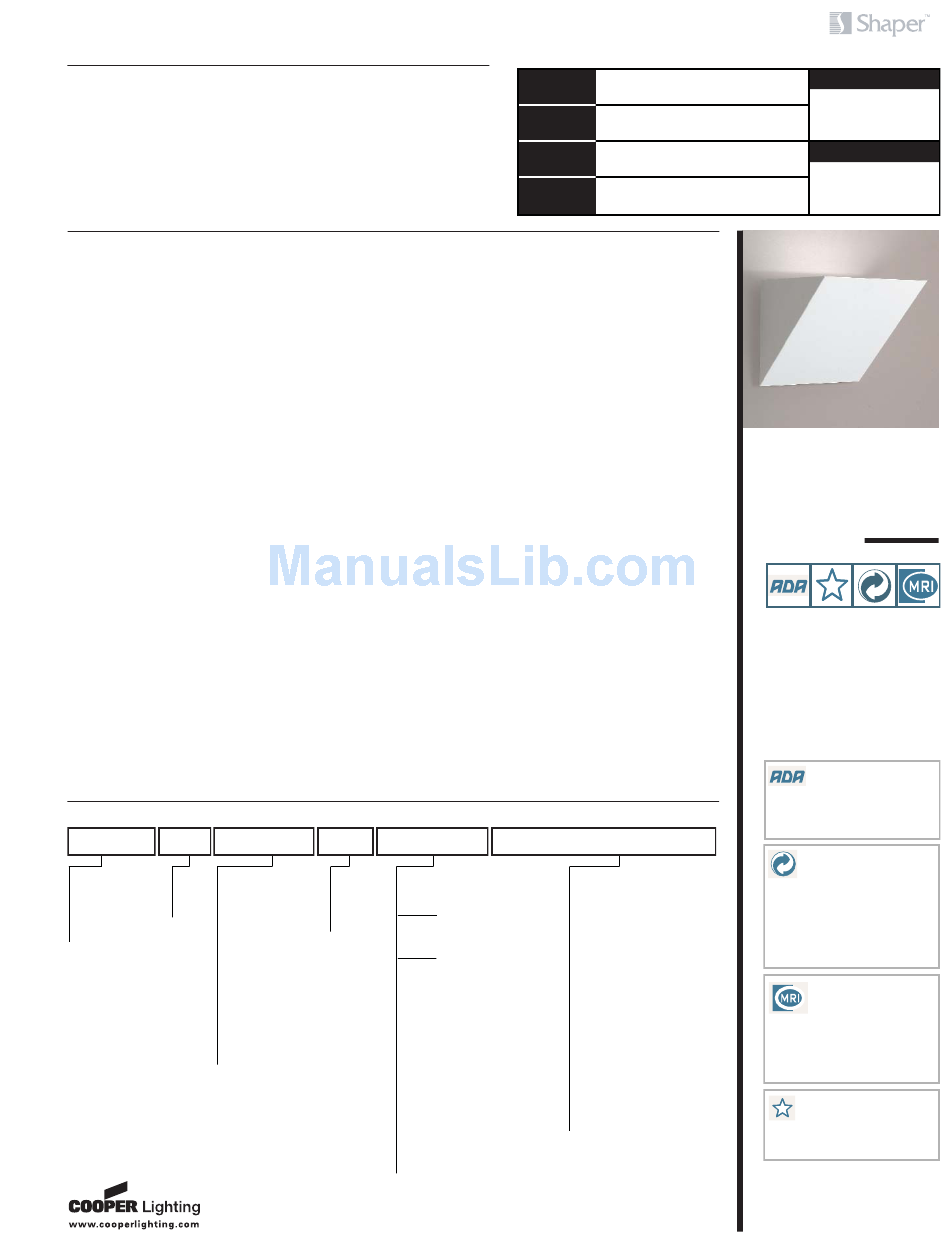

Cooper Lighting Shaper 687/4 Specification Sheet

D E S C R I P T I O N
687 features classic Geometric Wedge shape with indirect
illumination. The 687-4 features similar geometry and is ADA
compliant.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or plated cold-rolled
steel base metal. Optional
aluminum cube cell louver,
white.
F i n i s h
Standard: Matte White (MW) or
Matte Black (MB). Premium:
Satin Chrome (SC), Polished
Chrome (PC), Satin Brass (SB),
Polished Brass (PB), Satin
Aluminum (SAL), Oxidized
Bronze (OBZ), Satin Copper
(SCP), Polished Copper (PCP),
Satin Nickel (SN), Polished Nickel
(PN), Oxidized Brass (OBRS),
Lacquered Satin Chrome (SCL),
Lacquered Satin Nickel (SNL) or
Custom Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral Electronic HPF multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage. Metal
Halide Ballast are HPF core and
coil type, multi-volt 120/277V for
O R D E R I N G I N F O R M AT I O N
Sample Number: 687-12-MH/1/70-277V-PCP
Series Size Lamp
687 Geometric = 9" CFL/1/13
Wedge
12" CFL/1/26
687/4 Geometric =
CFL/1/32
Wedge
CFL/2
(26/32W-Triple)
CFL/2/26
INC/1/75
INC/2/75
Notes:
HAL/1/300
1
Available in 9".
MH/1/50
2
Available with 687/4 Series.
MH/1/70
3
Available with 687 Series.
MH/1/100
4
Available in 12".
5
CFL and MH only.
6
Available with CFL only.
7
MH only.
the specified wattage. Contact
factory for 347V.
L a m p / S o cke t
687 - 9": One (1) 26W or 32W
(GX24q-3) 4-pin triple CFL lamp
or one (1) 75W A-19 lamp.
687/4 - 9": One (1) 13W (2GX7)
4-pin low wattage CFL lamp, one
(1) 26W (G24q-3) 4-pin quad CFL
lamp or one (1) 75W A-19 lamp.
687 - 12": Two (2) 26W or 32W
(GX24q-3) 4-pin triple CFL lamps,
two (2) 75W A-19 lamps, one (1)
300W double-ended T-3 halogen
lamp or one (1) 50W, 70W or
100W ED-17 metal halide (open
burn) lamp.
687/4 - 12": Two (2) 26W (G24q-3)
quad CFL lamps or two (2) 75W
A-19 lamps. CFL socket injection
molded plastic. INC socket fired
ceramic rated for 660W-250V.
Lamps furnished by others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Quartz Restrike-12" 687 MH only
(QS), 1/2" Cube Cell Louver (CL),
Tempered Glass Lense (MH only)
Voltage Finish
1, 2
120V NA Natural Aluminum =
1, 3, 2 5
277V
Standard
1, 3 6
347V MB Matte Black =
MW Matte White =
4, 3
Premium
CC Custom Color =
4, 2
OBRS Oxidized Brass =
1, 3, 2
OBZ Hand Oxidized Bronze =
4, 3, 2
4, 3 PB Polished Brass =
4, 3
PC Polished Chrome =
4, 3
PCP Polished Copper =
4, 3
PN Polished Nickel =
SAL Lacquered Satin Aluminum =
SB Satin Brass =
SC Satin Chrome =
SCL Lacquered Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
(TGL), Punch Pattern - White
(WPP), Blue (BPP), Green (GPP)
Red (RPP) or Yellow (YPP),
Perforated Panel (PI), Modified
Emergency Battery (MEM) - 12"
only, Remote Emergency Battery
(REM), Damp Location (DL): All
Painted Finishes, Lacquered
Satin Chrome (SCL) and
Lacquered Satin Nickel (SNL)
finishes only. Energy Star Rating
- Contact factory.
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements. 687/4-9
and 687/4-12 are ADA compliant.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
BPP Blue Punch Pattern =
GPP Green Punch Pattern =
RPP Red Punch Pattern =
WPP White Punch Pattern =
YPP Yellow Punch Pattern =
CL Cube Cell Top Louver =
DL Damp Location =
MEM Modified Integral =
4, 3
Emergency Battery
PI Perforated Insert =
4, 3
QR Quartz Restrike =
REM Remote =
Emergency
Battery
TGL Sandblasted =
Tempered
Glass Lens 7
shaperlighting.com
Type
Date
687 SERIES
687/4 SERIES
I n t e r i o r W a l l L u m i n a i r e
C l a s s i c G e o m e t r i c W e d g e
AMERICAN DISABILITIES
ACT (ADA)
Shaper offers a large selection of ADA
interior and exterior wall luminaires.
ADA requires all fixtures below 68" to
have a maximum projection of 4".
SUSTAINABLE
DESIGN
Shaper has a long-standing history
of offering environmentally-friendly
fixtures. The copper and bronze alloys
used in our exterior luminaires feature
up to 98% recycled content, contribute
less undesirable air emissions compared
to painted aluminum and are easy to
recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
