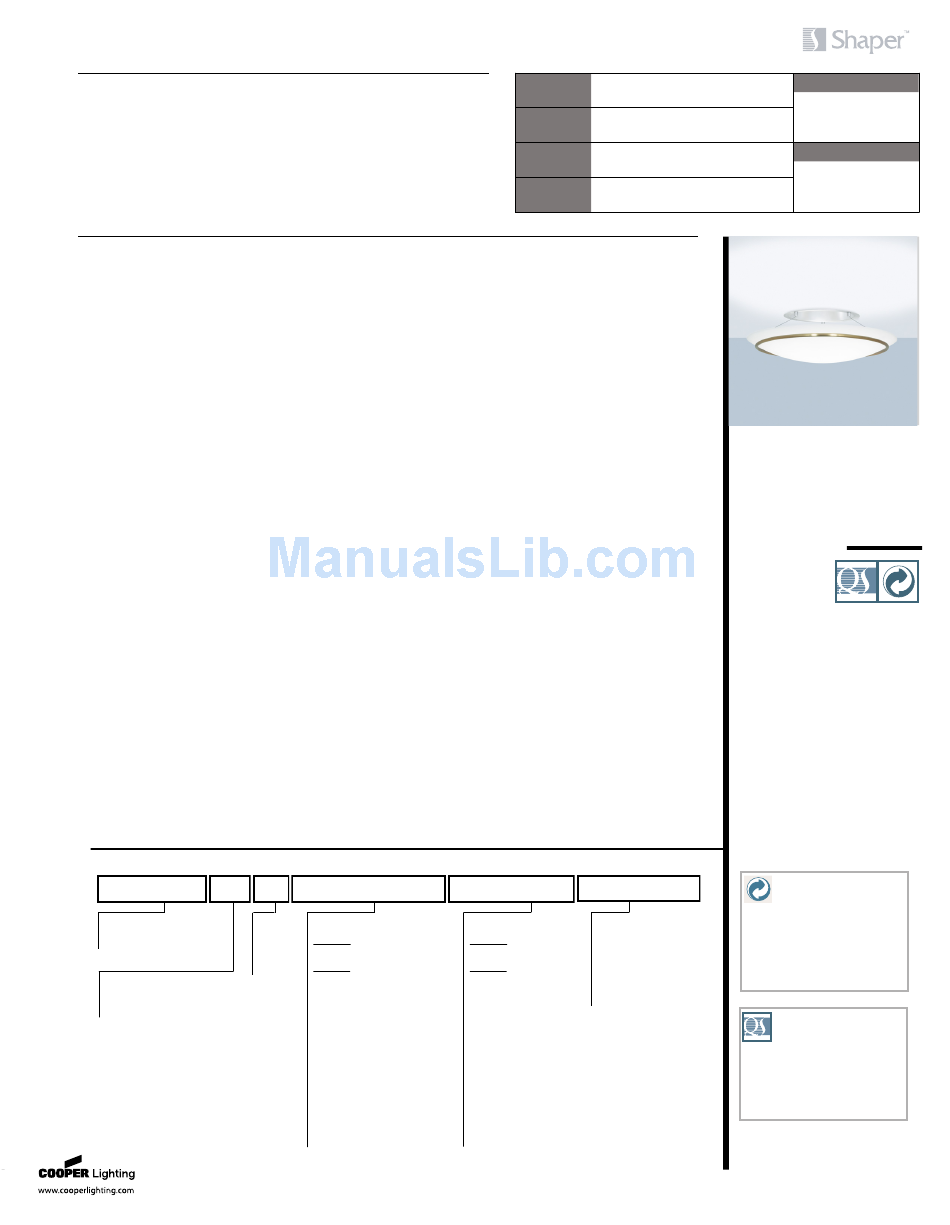

Cooper Lighting Shaper 499-RP-TR Series Specification

DESCRIPTION

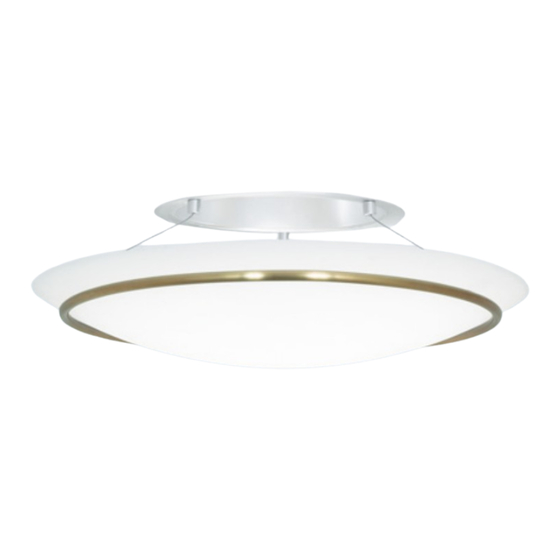

499-RP-TR feature a 24" pendant designed for low ceiling applications and
offers optics by Portfolio.
SPECIFICATION FEATURES
Material
Cold rolled steel or solid brass trim
ring with a matte white acrylic
bowl. Solid brass or aluminum
cable finials. Solid aluminum
mounting ring and hardware with
cable.
Downlight: One piece precision die
cast aluminum 1-1/2" deep collar
accommodates varying dimen-
sions of ceiling materials. Precisely
formed one piece, clear Alzak®,
non-imaging optical reflector
ensures 55° cut-off to lamp and
lamp image.
Finish
Standard: Matte White (MW)
Premium: Natural Aluminum (NA)
[Sustainable Design], Lacquered
Satin Aluminum (SAL), Satin
Chrome (SC), Lacquered Satin
Chrome (SCL), Polished Chrome
(PC), Satin Nickel (SN), Lacquered
Satin Nickel (SNL), Polished Nickel
(PN), Oxidized Brass (OBRS), Satin
Brass (SB), Polished Brass (PB),
Satin Copper (SCP), Polished
Copper (PCP), Oxidized Copper
(OCP), Gun Metal (GNM) or
Custom Color (CC). Specify finish
for the mounting ring and
hardware.
ORDERING INFORMATION
Sample Number: 499-RP-TR-CFL/2-277V-PCP
Series Voltage
= 24" Pendant 120V
499-RP-TR
w/ Trim Ring
277V
347V
Lamp
CFL/2
(26/32/42W-Triple)
Specifications and Dimensions subject to change without notice.
Optics
Refer to www.shaperlighting.com
for complete photometrics.
Ballast/Integral Emergency
Battery Pack
One (1) integral, multi-voltage
(120V/277V), electronic CFL (347V
Canada) ballast for a 26W, 32W or
42W CFL lamps. Provides flicker
free and noise free operation and
starting.
Lamp/Socket
Two (2) 26W, 32W (GX24q-3) or
42W (GX24q-4) 4-pin triple CFL
lamps. Universal 4-pin CFL socket
injection molded plastic with
fatigue free stainless steel lamp
spring ensures positive lamp
retention. Lamps furnished by
others.
Installation
Decorative trim/finial/bowl
assembly is securely suspended
from the mounting ring by three
stainless steel cables (provided).
Listed for eight #12AWG (four in,
four out) 90°C conductors feed
through branch wiring. One 1/2"
and two 3/4" pry outs. Positioned
to allow straight conduit runs.
Trim/Hardware Finish Ring/Hardware Finish
Standard
Standard
MW Matte White = MW Matte White
Premium
Premium
CC Custom Color = CC Custom Color
PB Polished Brass
PB Polished Brass =
PC Polished Chrome = PC Polished Chrome
= Polished Copper PCP
PCP
SB Satin Brass = SB Satin Brass
SC Satin Chrome
SC Satin Chrome =
SCL Lacquered Satin Chrome = SCL Lacquered Satin Chrome
SCP Satin Copper
SCP Satin Copper =
SN Satin Nickel = SN Satin Nickel
SNL Lacquered Satin Nickel
SNL Lacquered Satin Nickel =
= Oxidized Copper
OCP
GNM = Gun Metal
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Installation (Con't.)
Access to junction box by
removing reflector. Accepts 1/2"
EMT, C Channel, T-bar fasteners,
and bar hangers. Adjusts 5"
vertically from above or below
ceiling. Positive reflector
mounting, without tools, pulls trim
tight to ceiling. No measuring,
cutting or adjustment of cables is
required to achieve standard
overall height and level mounting.
Contractor to provide appropriate
structural support for the fixture's
weight.
Options
Hand-Painted Faux Alabaster Bowl
(FB), Hand Painted Faux Linen
Bowl (LNB), Refer to the downlight
spec sheet for options, MH
Lamping - Contact factory.
Labels
U.L. and C.U.L. listed. Downlight is
standard damp label.
Modifications
Contact the factory regarding scale
options, unique finishes,
mounting, additional materials/
colors, or decorative detailing.
Options
FB = Hand Painted
Faux Alabaster
=
Bowl
LNB = Hand Painted
=
Faux Linen
=
Bowl
=
= Polished Copper
=
=
=
=
=
=
= Oxidized Copper
OCP
= Gun Metal
