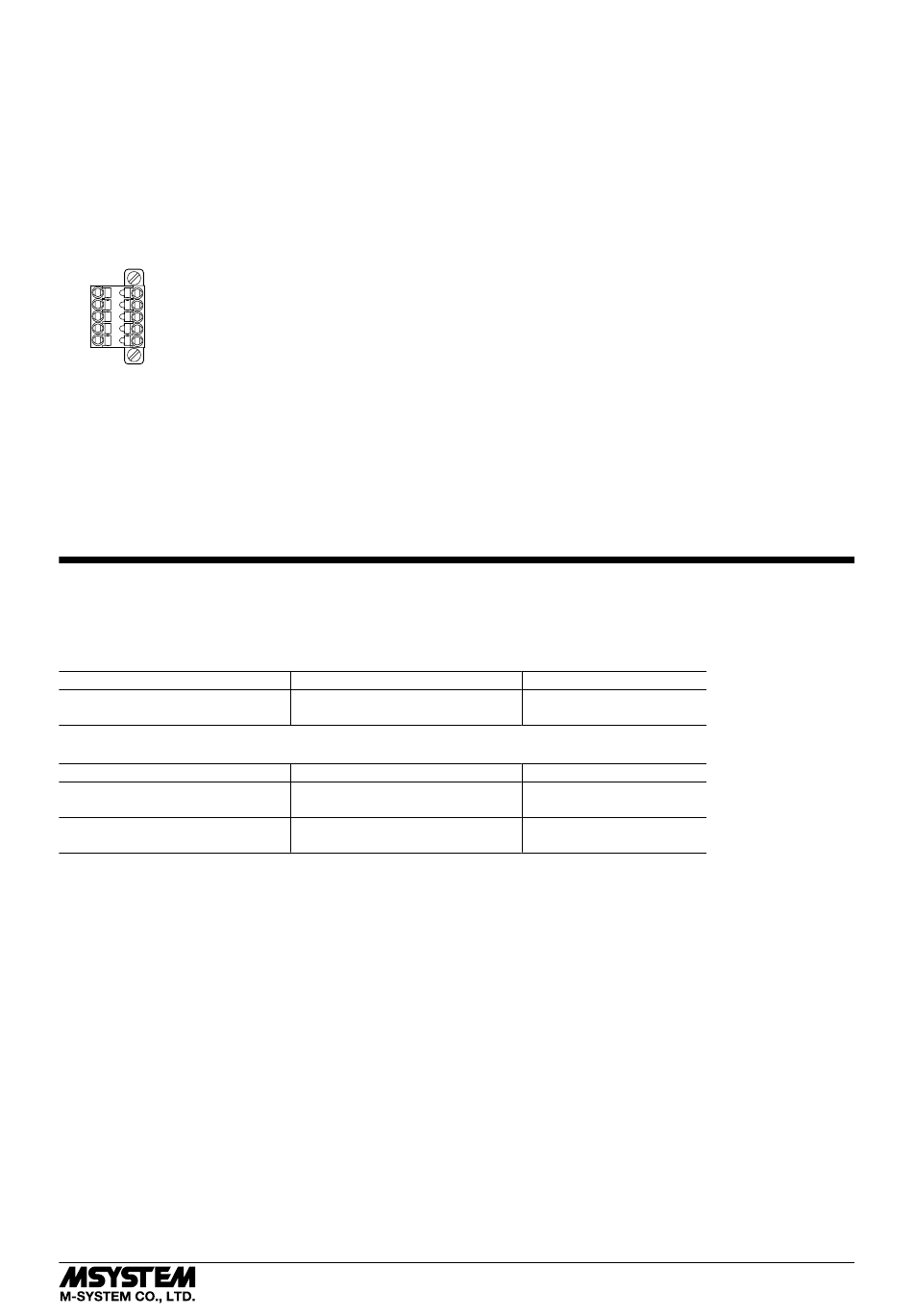

■ POWER SUPPLY, SENSOR EXCITATION
Cable connector: TFMC1,5 / 5–STF–3,5
(Phoenix Contact) (included in the package)
Applicable wire size: 0.2 − 1.5 mm
Recommended solderless terminal
• AI0,25−10YE 0.25 mm 2 (Phoenix Contact)
• AI0,34−10TQ 0.34 mm 2
• AI0,5−10WH 0.5 mm 2 (Phoenix Contact)
• AI0,75−10GY 0.75 mm 2
• A1−10 1.0 mm 2 (Phoenix Contact)
• A1,5−10 1.5 mm 2 (Phoenix Contact)
1
2
3
4
5
1. PWR+ Power Supply
2. PWR– Power Supply
3. FE Functional earth
4. SNSR.EXC+ Sensor excitation
5. SNSR.EXC– Sensor excitation
Note: The numbers marked on the connector have no relationship to the pin number of the unit.
Wire according to the instruction manual of the unit.
PC CONFIGURATOR
The following parameter items can be configured with the PC configurator software (model: R7CFG).
Refer to the users manual of the software for detailed operations.
■ CHANNEL INDIVIDUAL SETTING
PARAMETER
Unused setting (output only)
■ CHANNEL BATCH SETTING
PARAMETER
Read cycle setting
Output at communication error
; stripped length 10 mm
2
(Phoenix Contact)
(Phoenix Contact)
SETTING RANGE
CH enabled
CH disabled
SETTING RANGE
1ms, 5ms, 10ms, 20ms, 50ms, 70ms,
100ms, 200ms
Output hold
Output clear
