Sage the Bit More BTA720, STA720, BTA730, STA730 - Toaster 4 slots 1800 Wt Manual

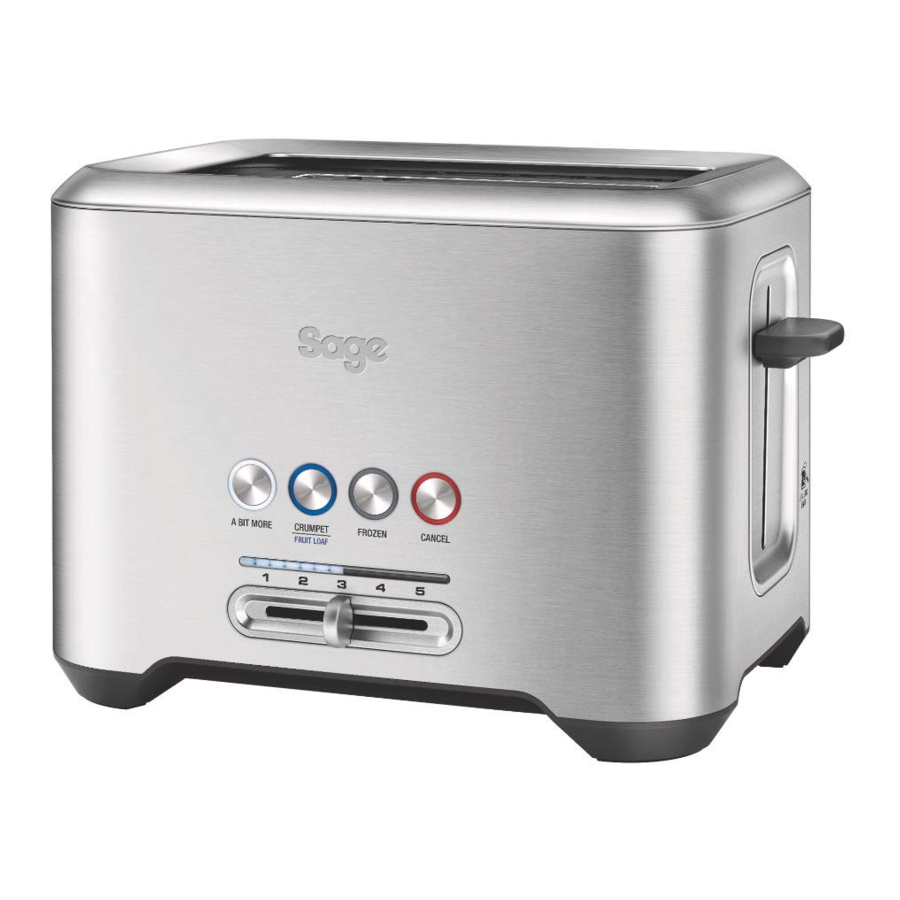

GETTING TO KNOW YOUR NEW APPLIANCE

1. A BIT MORE ™ button.
2. CRUMPET/FRUIT LOAF button.
3. FROZEN button.
4. CANCEL button.
5. Toasting slots
6. LED toasting progress indicator

7. Variable browning control slide
8. Full stainless steel body
9. Slide out crumb tray
10. Concealed cord storage
11. A Quick Look ™ / high lift lever.

Rating Information – BTA720
220–240V ~ 50Hz 840–1000W

Rating Information – BTA730
220–240V ~ 50Hz 1520–1800W

OPERATING YOUR NEW APPLIANCE

1. Insert the power plug into a 220-240V power outlet.
   NOTE
   When using the toaster for the first time, we suggest toasting on the maximum setting without bread. The toaster may emit a thin smoke or distinct odour on initial use. This is normal and not detrimental to the performance of the toaster.
2. Place bread, bagels, English muffins etc into each of the toasting slots.
3. There are 12 browning settings ranging from '1' (lightest) to '5' (darkest).
4. To start the toasting process, press down the lever until it locks into place.
5. Once the toasting cycle is complete the toast ready alert will sound.

Do not leave the toaster unattended when in use as toast may jam.

In the unlikely event that bread, bagels, English muffins or toaster pastries become jammed in the toasting slots, all the buttons and the LED toasting progress indicator will flash and the elements will turn off. Remove the power plug from the power outlet and allow the toaster to cool completely before carefully easing the bread out of the slots. Take care not to damage the heating elements. Do not use metal utensils.

A BIT MORE^™ BUTTON

If your toast comes up too light, one press of this button adds a little extra toasting time. This feature can be selected before, during or after the toasting cycle and can be used with the CRUMPET/FRUIT LOAF and FROZEN functions.

To use this feature during the toasting cycle:
Press the A BIT MORE^™ button. The toasting time will automatically increase.

To use this feature before or after the toasting cycle:
Press the A BIT MORE^™ button. Press down the lever until it locks into place. The LED toasting progress indicator will automatically align with the lowest browning setting.

CRUMPET/FRUIT LOAF BUTTON

To toast crumpets:

1. Place the crumpet into the toasting slots with the inside of the crumpet facing inwards as per the crumpet markings above the middle heating elements of the toaster.
2. Select the desired browning setting by adjusting the browning control slide on the front of the toaster.
3. To select the CRUMPET setting, press the CRUMPET button and press down the lever until it locks into place.
   NOTE
   It is normal for the outside heating elements to appear off or on a lower power during the Crumpet setting. This ensures the inside of your crumpet toasts without burning the outside.
4. After the cycle has finished, press the CRUMPET button to deselect the setting if toasting other types of bread.

To toast fruit loaf:

1. Place the fruit loaf into the toasting slots.
2. To select the FRUIT LOAF setting, press the CRUMPET/FRUIT LOAF button twice and the button will illuminate blue.
3. Select the desired setting by adjusting the BROWNING CONTROL slide on the front of the toaster.
4. The browning settings range from '1' (lightest) to '5' (darkest).
5. To start the toasting process, press down the A QUICK LOOK^™ lever until it locks into place.
6. Once the toasting cycle has finished remove the fruit loaf. The CRUMPET/ FRUIT LOAF button surround will remain illuminated in blue and should be pressed once to cancel if a subsequent toasting function other than fruit loaf is required.

FROZEN BUTTON

To toast frozen bread:

1. Place the bread into the toasting slots.
2. Select the desired browning setting by adjusting the browning control slide on the front of the toaster.
3. To select the FROZEN setting, press the FROZEN button. To start the toasting process, press down the lever until it locks into place. The toasting time will automatically increase.
4. After the cycle has finished, press the FROZEN button to deselect the setting.

A QUICK LOOK^™ LEVER

This feature raises and lowers the carriage so you can check the toasting progress without interrupting and/or cancelling the toasting cycle. During the toasting cycle, simply lift the lever to view the toasting progress.

HIGH LIFT LEVER

The lever can be lifted approximately 1cm above the starting position. This raises the carriage making it easier to remove smaller items such as English muffins.

ADJUSTING THE VOLUME OF THE TOAST READY ALERT

Press and hold down the CANCEL button for 2 seconds until the A BIT MORE^™, CRUMPET and FROZEN buttons illuminate. While these buttons are illuminated, adjust the volume as follows:

• Mute:
  Press the FROZEN button. The button surround light will flash three times.
• Low:
  Press the CRUMPET button. The toaster will beep three times with low volume confirmed.
• High:
  Press the A BIT MORE^™ button. The toaster will beep three times with high volume confirmed.

CARE, CLEANING & STORAGE

CARE AND CLEANING

Remove the power plug from the power outlet and allow the toaster to cool completely before cleaning.

To clean any crumbs from the toaster, remove the crumb tray, located on the left side of the toaster, opposite to the lever. Empty and replace the crumb tray before using the toaster again. Replace the crumb tray by sliding it inwards until it locks into position.

To remove any additional crumbs, turn the toaster upside down over a trash bin and shake crumbs free.

Wipe the outside of the toaster with a slightly dampened soft cloth then polish with a soft dry cloth to dry completely.

NOTE
Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts creating an electric shock hazard.

STORAGE

Remove the power plug from the power outlet and allow the toaster to cool completely before storing. Follow the directions for cleaning and store in an upright position on a flat surface on a bench top or in an accessible cupboard. Do not store anything on top of the toaster.

Do not use the toaster without the crumb tray in position. Do not allow crumbs to build up in the crumb tray. Failure to clean the crumb tray regularly may result in a fire hazard and damage the toaster.
