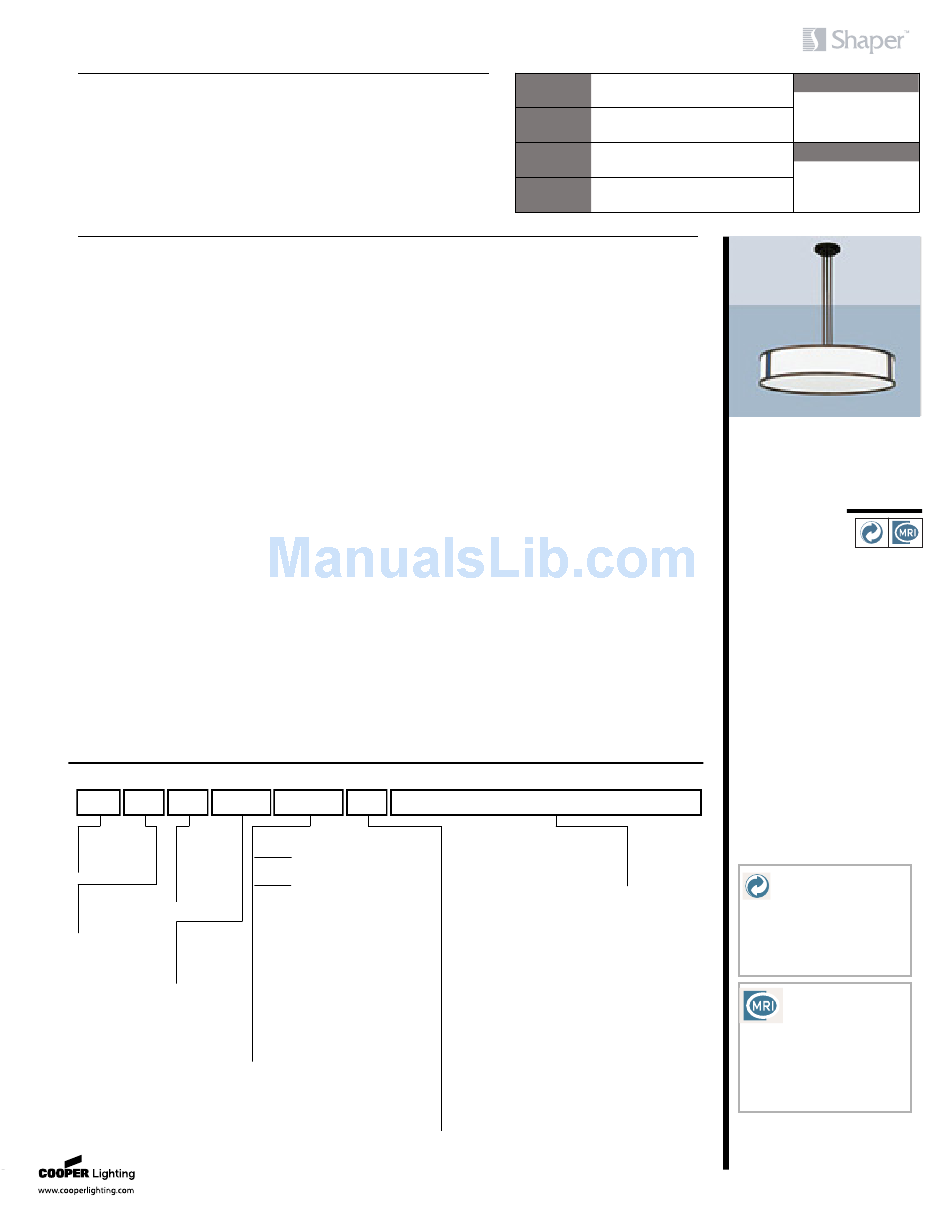

Cooper Lighting Shaper 474 Specification

DESCRIPTION
The 474 Drum Pendant features Bold Trim and is available in two diameters
with multiple mounting options.
SPECIFICATION FEATURES
Material/Mounting
Solid aluminum or solid brass with
matte acrylic panels.
Three Stem (Standard): Three 3/8"
stems with a standard height of
24" (OA), minimum 18" (OA).
Maximum overall hang height for
one piece stem assembly is
5' (OA). 5' to 25' a 5/8" Collector
Body (CB) will be provided.
Contact factory for lengths above
25'. Specify SCA for sloped ceilings
up to 45°.
Finish
Standard: Natural Aluminum (NA)
[Sustainable Design]. Premium:
Matte White (MW), Lacquered
Satin Aluminum (SAL), Lacquered
Polished Aluminum (PAL), Satin
Brass (SB), Polished Brass (PB),
Oxidized Brass (OBRS), Satin
Copper (SCP), Polished Copper
(PCP), Oxidized Copper (OCP),
Satin Nickel (SN), Polished Nickel
(PN), Lacquered Satin Nickel (SNL),
Gun Metal (GNM) or Custom Color
(CC).
ORDERING INFORMATION
Sample Number: 474-30-CFL/4/40-277V-PCP-24
Series Lamp
1
474 Drum w/ = CFL/4/27
Bold Trim
2
CFL/4/40
1
INC/3/75
2
INC/3/100
Size
24"
30"
Voltage
120V
3
277V
3
347V
Notes:
1
Available in 24".
2
Available in 30".
3
Available with CFL only.
4
Not available in 27W.
5
Consult the factory for
available options.
6
Supplied by others.
7
Specify up to 45°.
8
Interior applications only.
Optics
Refer to www.shaperlighting.com
for complete photometrics.
Ballast
Integral electronic HPF, multi-volt
120/277V (347V Canada), thermally
protected with end-of-life circuitry
to accommodate the specified
lamp wattage.
Lamp/Socket
24": Four (4) 27W (2G11) high
lumen CFL lamps or three (3) 75W
A-19 lamps.
30": Four (4) 40W (2G11) high
lumen CFL lamps or three (3) 100W
A-19 lamps.
CFL socket injection molded
plastic. INC socket fired ceramic
rated for 660W-250V. Lamps
furnished by others.
Installation
Supplied with either a circle strap
mounting canopy or bar strap that
mounts to a 4" J-box or plaster
ring. Integral safety cable provided.
Finish
Standard
NA Natural Aluminum =
Premium
CC Custom Color =
MW Matte White =
OBRS Oxidized Brass =
PAL Lacquered Polished Aluminum =
PB Polished Brass =
PCP Polished Copper =
PN Polished Nickel =
SAL Lacquered Satin Aluminum =
SB Satin Brass =
SCP Satin Copper =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Options
Hand Painted Faux Alabaster
Panels (FP), Hand Painted Faux
Linen Panels (LNP), Dimming
Ballast (except 27W) - Contact
factory for ballast options CFL
(DM), Sloped Ceiling Adaptor -
(Single, Triple Stem & Multi-Bowls
only) - Specify up to 45° (SCA),
Perforated Band (PFB), Decorative
Finial (DF), Cobalt Blue Inserts
(CBI), Decorative Finial with Ball
(DFB), Circular Trim Bar (CTB),
Remote Emergency Battery -
Supplied by others (REM), Integral
Emergency Battery (30") (IEM),
Damp Location (DL): All Painted
Finishes and Lacquered Satin
Nickel (SNL) finishes only. MRI
Applications (INC only) - Contact
Factory.
Labels
U.L. and C.U.L approved for indoor
and damp location. See options
for damp location finishing
requirements.
Modifications
Contact the factory regarding scale
options, unique finishes,
mounting, additional
materials/colors, or decorative
detailing.
Options
1S Single Stem =
TSS2D Triple Stem Suspended =
Double Drum
TSS3D Triple Stem Suspended =
Triple Drum
TSS4D Triple Stem Suspended =
Four Drum
CBI Cobalt Blue Inserts =
8
DL Damp Location =
4, 5
DM CFL Dimming Ballast =
2
IEM Integral Emergency Ballast =
6
REM Remote Emergency Battery =
SCA Sloped Ceiling Adapter = 7
CTB Circular Trim Bar =
DF Decorative Finial =
DFB Decorative Finial w/ Ball =
FP Hand Painted Faux Alabaster =
Panels
PFB Perforated Band =
LNP= Hand Painted Faux
Linen Panels
shaperlighting.com
474 SERIES
Suspension
Height
24"
SUSTAINABLE
or specify
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring
non-ferrous construction. Fluores-
cent fixtures cannot be used due to
the ferrous parts in ballasts and
lampholders. Modified incandescent
fixtures meet the requirements.
Refer to the Icon Legend
Link on shaperlighting.com.
08/19/2008 4:44:23 PM
Type
Date
Pendant Luminaire
Drum with Bold Trim
ADS042742
