Instructions – Parts List
Parts

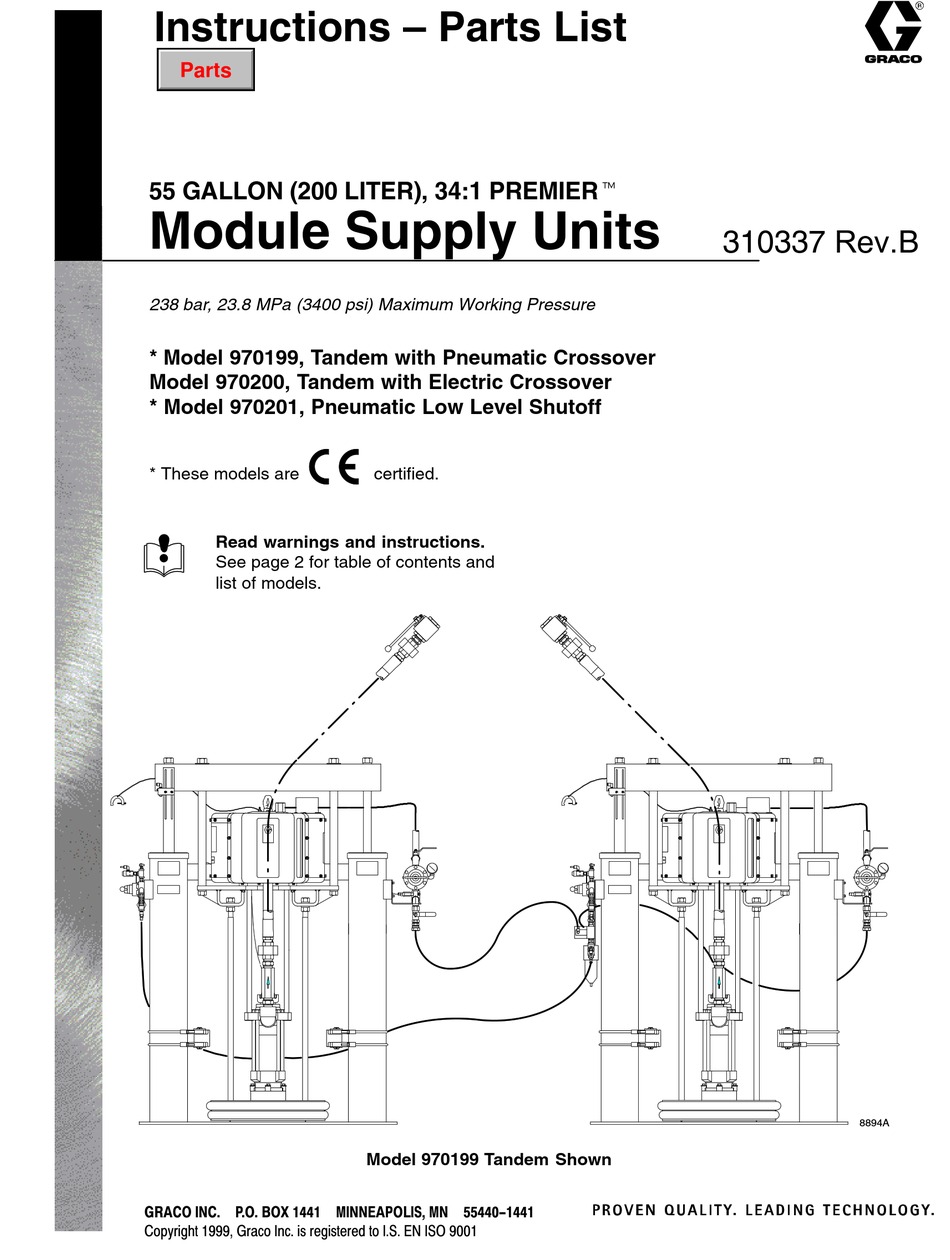

55 GALLON (200 LITER), 34:1 PREMIERt
Module Supply Units
238 bar, 23.8 MPa (3400 psi) Maximum Working Pressure
* Model 970199, Tandem with Pneumatic Crossover
Model 970200, Tandem with Electric Crossover
* Model 970201, Pneumatic Low Level Shutoff
* These models are
Read warnings and instructions.
See page 2 for table of contents and
list of models.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001
certified.
Model 970199 Tandem Shown
310337 Rev.B
8894A
