LACP Port Status
Shows LACP port status.
Field Attributes
• Port - The port number.
• Port Active - Shows if the port is a member of an active LACP group.
• Partner Port Number - A list of port numbers assigned to the link by the LACP
partner.
• Operational Port Key - The current operational value of the Key for the LACP
group.
Web – Click TRUNKS, LACP Status.

VLAN Settings

This page allows you to create and delete VLANs (Virtual LANs) and to change the
VLAN membership and behaviour of individual ports. VLANs are powerful, but can
be difficult to set up properly. Each row of the table corresponds to one port or trunk;
trunked ports cannot be configured individually.
Introduction to VLANs
VLANs are logical partitions of the physical LAN. You can use VLANs to increase
network performance or improve internal network security.

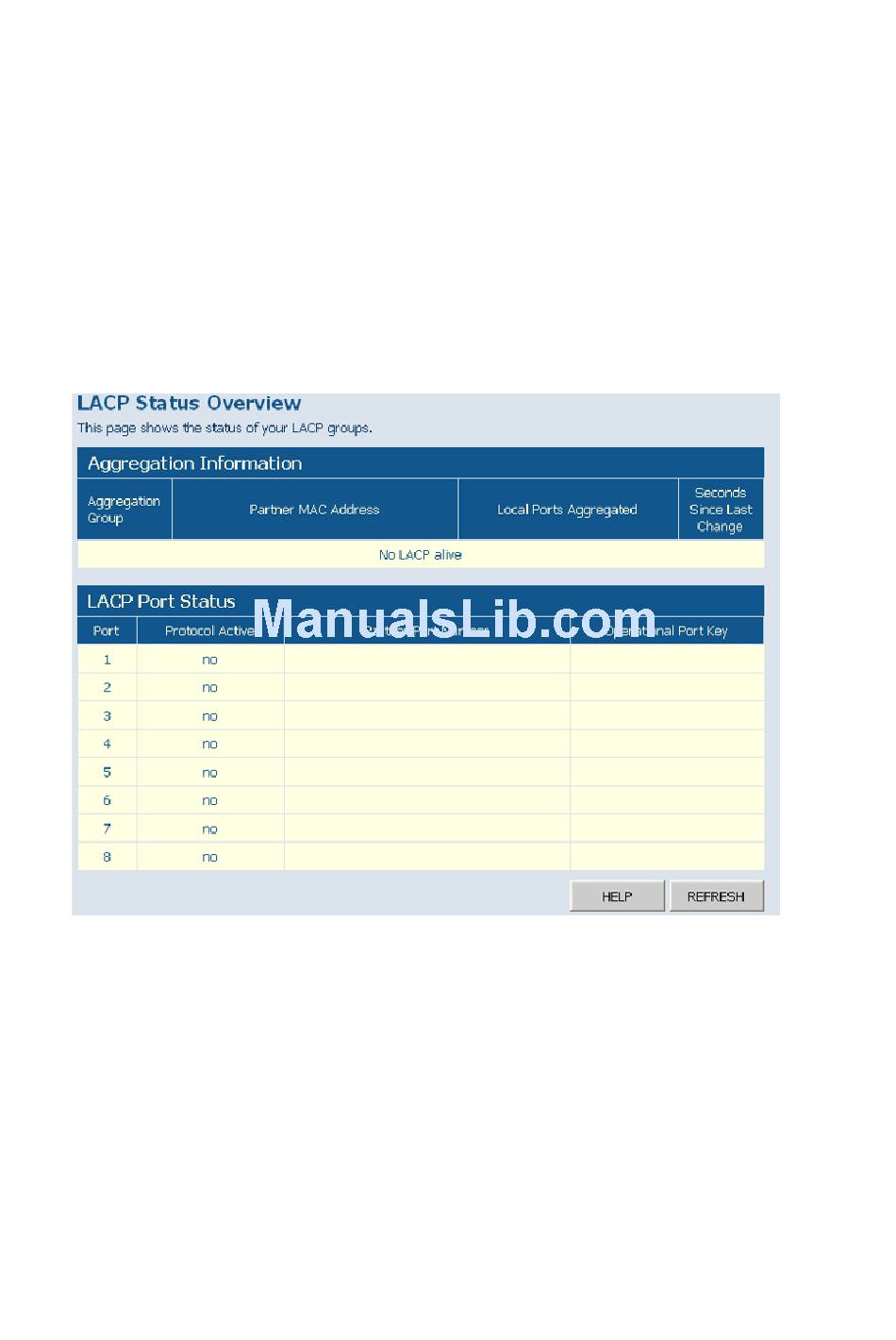

Figure 3-21 LACP Status Overview

Web Configuration
3-23
