CLI – This example shows the switch configured with primary VLAN 5 and
secondary VLAN 6. Port 3 has been configured as a promiscuous port and mapped
to VLAN 5, while ports 4 and 5 have been configured as a host ports and associated
with VLAN 6. This means that traffic for port 4 and 5 can only pass through port 3.
Console(config)#interface ethernet 1/3
Console(config-if)#switchport mode private-vlan promiscuous
Console(config-if)#switchport private-vlan mapping 5
Console(config-if)#exit
Console(config)#interface ethernet 1/4
Console(config-if)#switchport mode private-vlan host
Console(config-if)#switchport private-vlan host-association 6
Console(config-if)#exit
Console(config)#interface ethernet 1/5
Console(config-if)#switchport mode private-vlan host
Console(config-if)#switchport private-vlan host-association 6
Console(config-if)#

Configuring Protocol VLANs

You can configure VLAN behavior to support multiple protocols to allow traffic to
pass through different VLANS. When a packet is received at a port, its VLAN
membership is determined by the protocol type of the packet.

Configuring Protocol VLAN Basic Settings

Use the Protocol VLAN Configuration menu to create or remove protocol VLANs.
Command Attributes
• Protocol Group IP - Protocol Group ID assigned to the Protocol VLAN Group.
(Range: 1-2147483647)
• Frame Type - Ethernet frame type.
• Protocol Type - The options for Ethernet frame type includes IP, ARP, or RARP.
Web – Click VLAN, Protocol VLAN, Configuration.

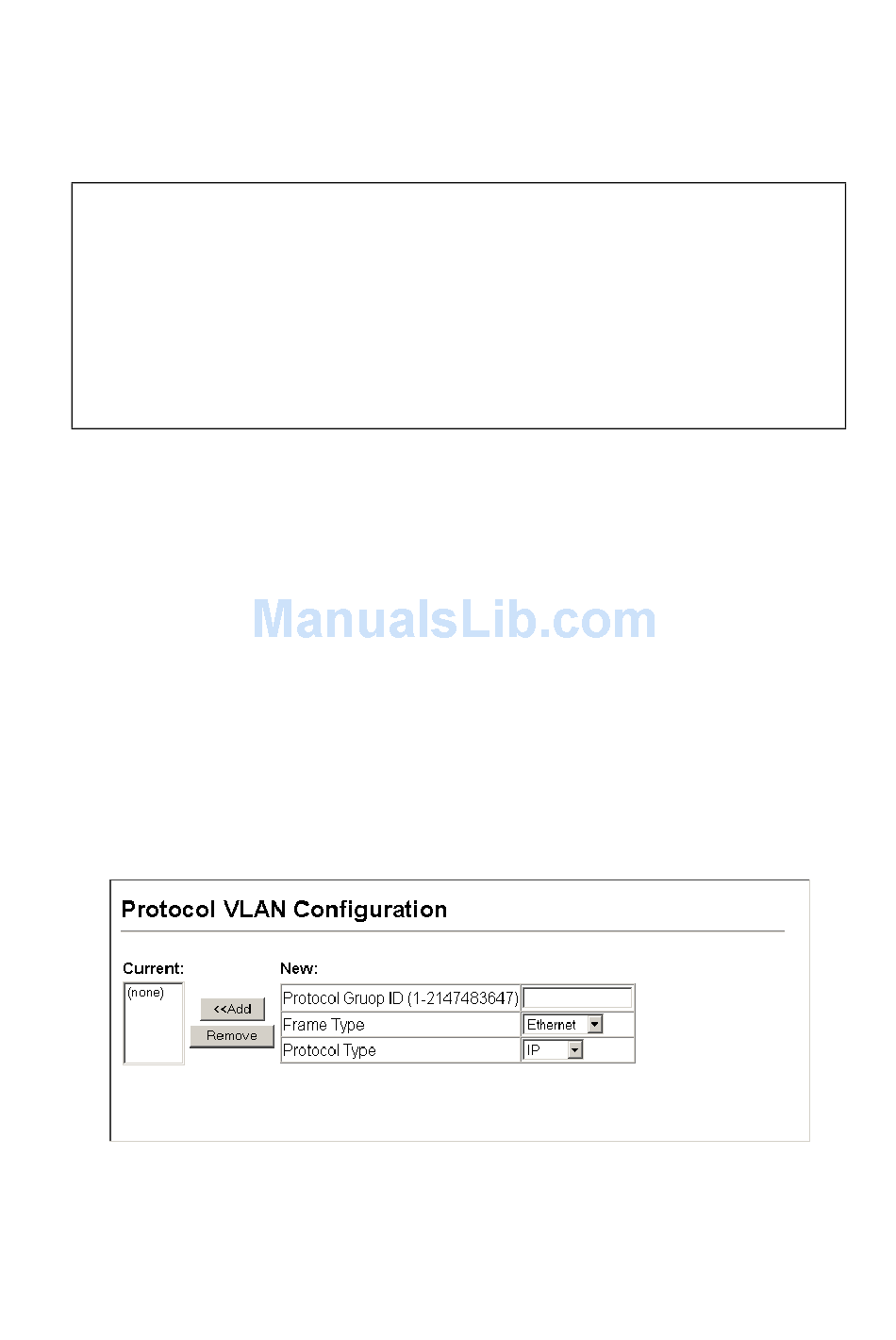

Figure 3-84. Protocol VLAN Configuration

VLAN Configuration
4-155
4-164
4-162
4-163
3-139
