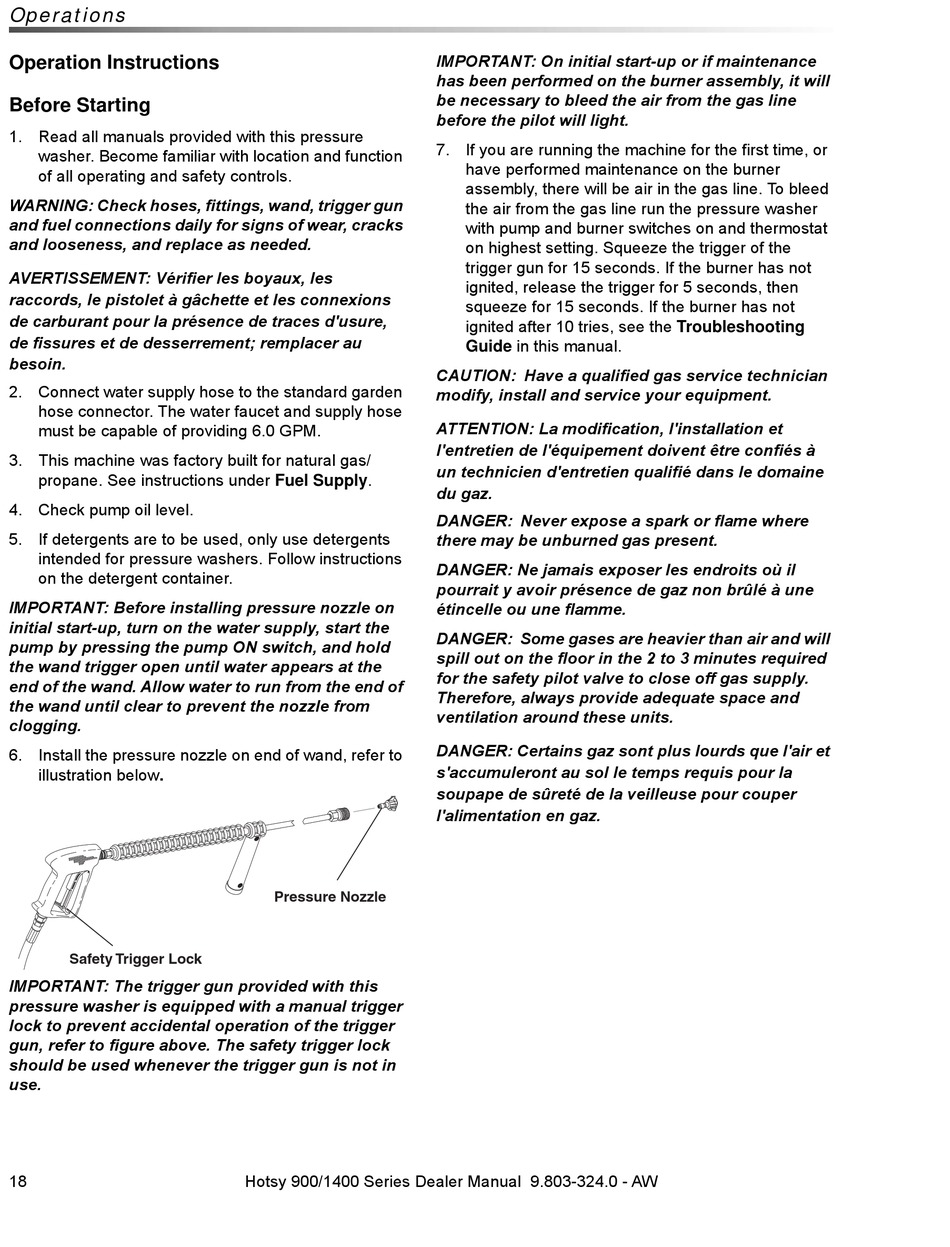

Operation Instructions

Before Starting
1. Read all manuals provided with this pressure
washer. Become familiar with location and function
of all operating and safety controls.
WARNING: Check hoses, fittings, wand, trigger gun
and fuel connections daily for signs of wear, cracks
and looseness, and replace as needed.
AVERTISSEMENT: Vérifier les boyaux, les
raccords, le pistolet à gâchette et les connexions
de carburant pour la présence de traces d'usure,
de fissures et de desserrement; remplacer au
besoin.
2. Connect water supply hose to the standard garden
hose connector. The water faucet and supply hose
must be capable of providing 6.0 GPM.
3. This machine was factory built for natural gas/
propane. See instructions under Fuel Supply.
4. Check pump oil level.
5. If detergents are to be used, only use detergents
intended for pressure washers. Follow instructions
on the detergent container.
IMPORTANT: Before installing pressure nozzle on
initial start-up, turn on the water supply, start the
pump by pressing the pump ON switch, and hold
the wand trigger open until water appears at the
end of the wand. Allow water to run from the end of
the wand until clear to prevent the nozzle from
clogging.
6. Install the pressure nozzle on end of wand, refer to
illustration below.
Safety Trigger Lock
IMPORTANT: The trigger gun provided with this
pressure washer is equipped with a manual trigger
lock to prevent accidental operation of the trigger
gun, refer to figure above. The safety trigger lock
should be used whenever the trigger gun is not in
use.
18
Pressure Nozzle
Hotsy 900/1400 Series Dealer Manual 9.803-324.0 - AW
IMPORTANT: On initial start-up or if maintenance
has been performed on the burner assembly, it will
be necessary to bleed the air from the gas line
before the pilot will light.
7. If you are running the machine for the first time, or
have performed maintenance on the burner
assembly, there will be air in the gas line. To bleed
the air from the gas line run the pressure washer
with pump and burner switches on and thermostat
on highest setting. Squeeze the trigger of the
trigger gun for 15 seconds. If the burner has not
ignited, release the trigger for 5 seconds, then
squeeze for 15 seconds. If the burner has not
ignited after 10 tries, see the Troubleshooting
Guide in this manual.
CAUTION: Have a qualified gas service technician
modify, install and service your equipment.
ATTENTION: La modification, l'installation et
l'entretien de l'équipement doivent être confiés à
un technicien d'entretien qualifié dans le domaine
du gaz.
DANGER: Never expose a spark or flame where
there may be unburned gas present.
DANGER: Ne jamais exposer les endroits où il
pourrait y avoir présence de gaz non brûlé à une
étincelle ou une flamme.
DANGER: Some gases are heavier than air and will
spill out on the floor in the 2 to 3 minutes required
for the safety pilot valve to close off gas supply.
Therefore, always provide adequate space and
ventilation around these units.
DANGER: Certains gaz sont plus lourds que l'air et
s'accumuleront au sol le temps requis pour la
soupape de sûreté de la veilleuse pour couper
l'alimentation en gaz.
