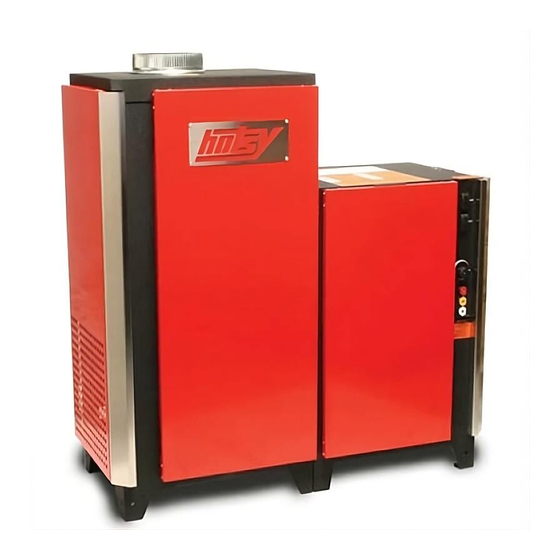

Pressure Washer
MODELS:
1452P
921N
1.109-702.0
1.109-691.0
1454N
926N
1.109-707.0
1.109-692.0
1452N
943P
1.109-703.0
1.109-695.0
1455P
943N
1.109-708.0
1.109-696.0
1455N
944P
1.109-709.0
1.109-697.0
1451N
944N
1.109-701.0
1.109-698.0
1456N
942P
1.109-710.0
1.109-693.0
1473N
942N
1.109-713.0
1.109-694.0
1474N
945P
1.109-714.0
1.109-699.0
1451P
921P
1.109-950.0
1.109-948.0
1475P
945N
1.109-952.0
1.109-700.0
1473P
926P
1.109-711.0
1.109-949.0
1474P
1453P
1.109-712.0
1.109-704.0
1456P
1453N
1.109-951.0
1.109-705.0
1475N
1454P
1.109-953.0
1.109-706.0
For the Hotsy Dealer nearest you,
consult our web page at
www.hotsy.com
9.803-324.0-AW
02/20/18
