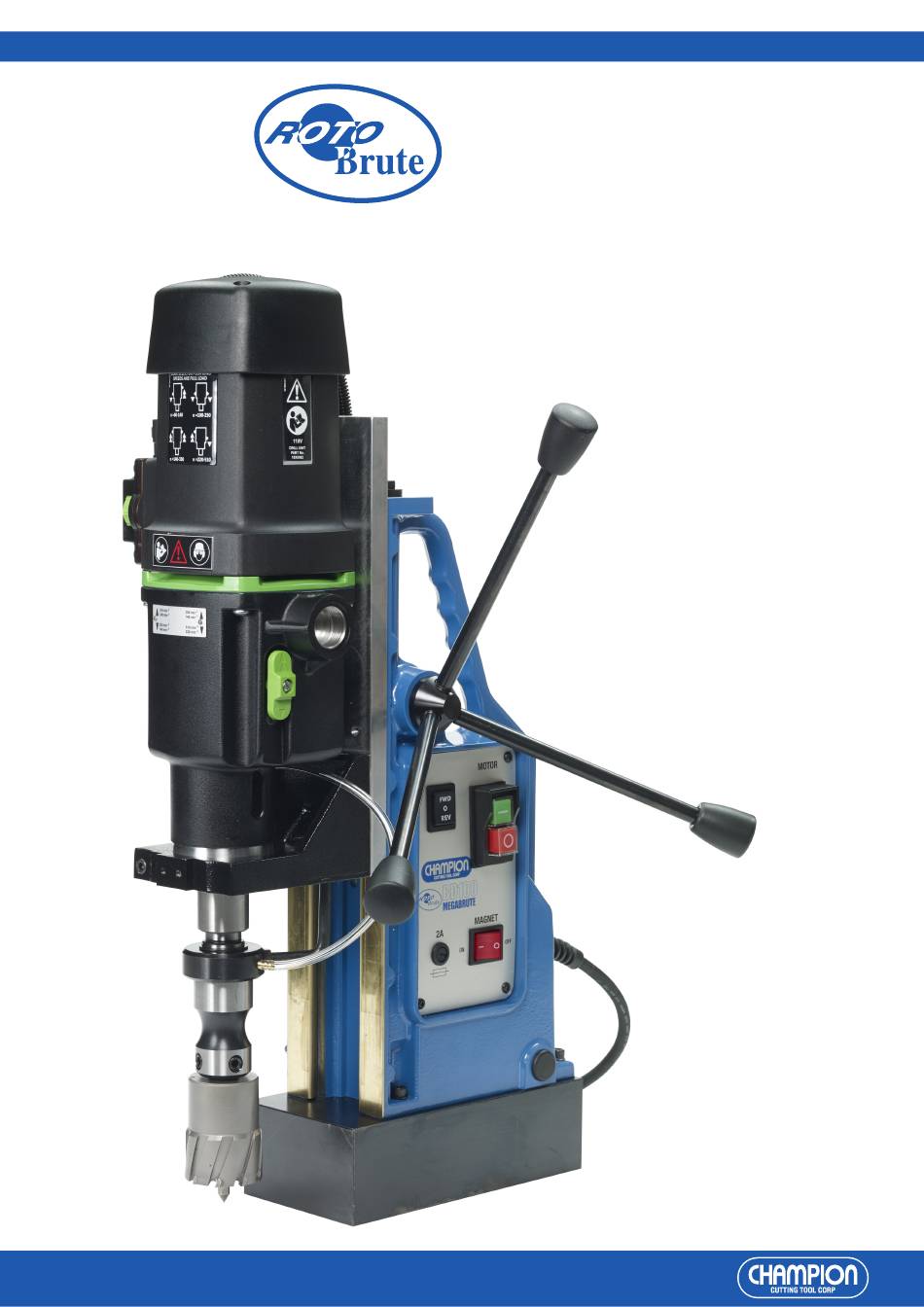

- Page 1 BD100 MEGABRUTE Magnetic Drill Press _______________ Operating Manual championcuttingtool.com...
-
Page 2: Intended Use
Annular Cutter Depth Of Cut Capacity Is 2”. 4" Depth Of Cut Can Be Achieved By Using 2 Piece Pilot Pin. *Additional Arbors and Drill/Chuck Adaptors available for purchase. Contact Champion directly for information. MAGNETIC DRILL PRESS SPECIFICATIONS POWER INPUT 1600 W (13.3A) -
Page 3: Personal Safety
PERSONAL SAFETY Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Dress properly. -
Page 4: Operational Safety Procedures
On completion of the cut, a slug will be ejected. DO NOT operate the machine as the ejected slug may cause injury. • When not in use ALWAYS store the machine in a safe and secure location. • ALWAYS ensure that approved CHAMPION authorized repair centers conduct repairs. BD100 Manual championcuttingtool.com... -
Page 5: Operational Instructions
OPERATIONAL INSTRUCTIONS • Keep the inside of the cutter clear of chips. It restricts the operating depth of the cutter. • Ensure that the coolant bottle contains sufficient cutting oil to complete the required operating duration. Refill as required. • Occasionally depress the pilot to ensure cutting fluid is being correctly metered. -
Page 6: Replacement Parts
For 110v supply: 3.5 meters of 3 core x1.5mm² REPLACEMENT PARTS Contact Champion directly for information regarding replacement parts. • It is highly suggested that all repairs to this magnetic drill press are competed by one of Champion's • authorized repair centers. BD100 Manual... -
Page 7: Maintenance
MAINTENANCE In order to ‘get the best life’ out of your Champion machine always keep it in good working order. Several items must always be checked on Champion machines. Always before starting any job make sure the machine is in good working order and that there are no damaged or loose parts. - Page 8 MEGABRUTE REMEDIES FOR HOLE MAKING PROBLEMS PROBLEM CAUSE REMEDY 1) Magnetic base will not Material being cut may be too thin for Attach an additional piece of metal efficient holding. under the magnet, or mechanically hold effectively clamp magnetic base to workpiece. Chips or dirt under magnet.
-
Page 9: Troubleshooting
MEGABRUTE TROUBLESHOOTING Magnet and motor do not function - The magnet switch is not connected to the power supply - Damaged or defective wiring - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor does not - Damaged or defective wiring - Carbon brushes are stuck or worn out - Defective magnet switch... -
Page 10: Warranty
Champion or its designated distributor within a period of (30) days from the purchase date. Failure to do so will void the warranty. If the stated is adhered to, Champion will repair or replace (at its option) without charge any faulty items returned.
