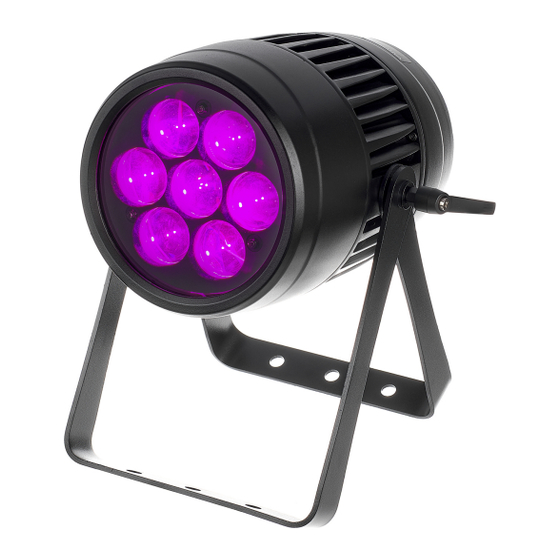

Varytec Typhoon True Kid 720Z RGBW User Manual

Led outdoor par
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Typhoon True Kid 720Z RGBW IP65
LED Outdoor PAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Typhoon True Kid 720Z RGBW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Varytec Typhoon True Kid 720Z RGBW

Summary of Contents for Varytec Typhoon True Kid 720Z RGBW

  • Page 1 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 02.05.2023, ID: 470178 (V2)

  • Page 3: Table Of Contents

    7.5 Functions in 4-channel DMX mode................... 30 7.6 Functions in 8-channel DMX mode................... 31 7.7 Functions in 17-channel DMX mode..................32 7.8 Functions in 19-channel DMX mode..................35 Technical specifications........................42 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 4 Table of contents Plug and connection assignment....................44 Troubleshooting............................45 Cleaning............................... 47 Protecting the environment......................48 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 5 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 8: Symbols And Signal Words

    NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 9 General information Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 10: Safety

    Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐ sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 11 15 minutes. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 12 Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sufficient dimensioning (wire cross section) of the power cables used for all devices connected in series. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 13: Features

    Degree of protection IP65 Temperature protection circuit for safe operation Safety glass screen Connectors for power supply and DMX control via splashproof lockable plugs and cou‐ plings Rugged die-cast aluminium housing Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 14 For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 15: Installation

    NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must not exceed the limits stated in the chapter Tech‐ nical Specifications of the User Manual. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 16 Possible damage due to moisture Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits. Close unused connectors with end caps intended for this purpose (www.thomann.de). Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 17 The safety cable must be attached to the safety eyelet. Please note that this device must not be connected to a dimmer. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 18: Starting Up

    Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 19 DMX output of the master unit to the DMX input of the first slave unit. Then connect the DMX output of the first slave unit to the DMX input of the second slave unit and so on. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 20: Connections And Controls

    Connections and controls Connections and controls Rear panel ö PUSH & Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 21 Connection supply voltage outgoing (Power Twist IP65) 6 Two-piece bracket for hanging or installation and for securing the safety cable 7 [POWER IN] Connection supply voltage incoming (Power Twist IP65) 8 [DMX IN] DMX input Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 22: Operating

    [DOWN] to select a value or a setting. Confirm the desired value or setting with [ENTER]. To close the main menu, press [MODE]. All previously made settings are retained even when you disconnect the device from the power grid. The following table shows the setting options. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 23 Key lock is activated after 5 seconds. To unlock the keys, press successively [DOWN] [UP] [DOWN] [UP]. ‘off’ Key lock is off ‘LCD Black’ ‘off’ Automatic display shutdown when not in use disabled Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 24 Amount red (0 % to 100 %) ‘000 Green’ … ‘255 Green’ Amount green (0 % to 100 %) ‘000 Blue’ … ‘255 Blue’ Amount blue (0 % to 100 %) Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 25 ‘Channels Selecting a DMX mode Mode’ ‘CHANNEL 02’ 2-channel DMX mode ‘CHANNEL 04’ 4-channel DMX mode ‘CHANNEL 08’ 08-channel DMX mode ‘CHANNEL 17’ 17-channel DMX mode ‘CHANNEL 19’ 19-channel DMX mode Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 26: Menu Overview

    LCD Black Dimmer All CAL WHITE WHITE-1 000 Red 255 Red Run Mode Address 000 Green 255 Green WHITE-11 Key Lock Slave 000 Blue 255 Blue 000 White 255 White Color Zoom Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 27: Functions In 2-Channel Dmx Mode

    7.4 Functions in 2-channel DMX mode Channel Value Function Colour selection 0…9 None 10…13 14…17 Green 18…21 Blue 22…25 Yellow 26…29 Cyan 30…33 Magenta 34…37 White 38…41 Orange 42…45 Pink 46…49 Purple 50…53 Aquamarine 54…57 Sky-blue Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 28 Yellow 2 82…85 Straw 86…89 Orange 2 90…93 Light pink 94…97 Dark pink 98…101 Magenta 2 102…105 Blue 2 106…109 Medium teal 110…113 Dark blue 114…117 Bright pink 118…121 Medium blue Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 29 138…141 Dark lavender 142…145 Chocolate 146…149 Simple blue 150…153 Bright Pink 154…157 Scarlet 158…161 Peach-coloured 162…165 Fire 166…169 English pink 170…173 Mauve 174…177 Beaming blue 178…181 Alice blue 182…185 Indigo rosé Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 30: Functions In 4-Channel Dmx Mode

    RGBW 0…255 Zoom (0 % to 100 %) 7.5 Functions in 4-channel DMX mode Channel Value Function 0…255 Saturation (0 % to 100 %) 0…255 Brightness (0 % to 100 %) Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 31: Functions In 8-Channel Dmx Mode

    Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) Strobe effect 0…8 Open, no stroboscope effect 9…255 Stroboscope effect, increasing speed Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 32: Functions In 17-Channel Dmx Mode

    Intensity green fine (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity blue fine (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 33 Open, no stroboscope effect 9…255 Stroboscope effect, increasing speed 0…255 Zoom (0 % to 100 %) 0…255 Motor speed (0 % to 100 %) Automatic shows 0…7 Standard 8…10 Programme 1 11…20 Programme 2 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 34 61…70 Programme 7 71…80 Programme 8 81…90 Programme 9 91…100 Programme 10 101…109 Programme 11 110…255 None 0…255 Auto programme running speed 0…200 No function 201…220 Motor Reset 221…255 No function Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 35: Functions In 19-Channel Dmx Mode

    Intensity white (0 % to 100 %) 0…255 Intensity white fine (0 % to 100 %) Dimmer curves with afterglow effect 0…49 Standard 50…99 Dimmer mode 1 (slight afterglow) 100…149 Dimmer mode 2 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 36 9…255 Stroboscope effect, increasing speed 0…255 Zoom (0 % to 100 %) 0…255 Motor speed (0 % to 100 %) Device ID 0…9 all IDs 10…19 20…29 30…39 40…49 50…59 60…69 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 37 Operating Channel Value Function 70…79 80…89 90…99 100…109 ID10 110…119 ID11 120…129 ID12 130…139 ID13 140…149 ID14 150…159 ID15 160…169 ID16 170…179 ID17 180…189 ID18 190…199 ID19 200…209 ID20 ID21 ID22 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 38 Operating Channel Value Function ID23 ID24 ID25 ID26 ID27 ID28 ID29 ID30 ID31 ID32 ID33 ID34 ID35 ID36 ID37 ID38 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 39 Operating Channel Value Function ID39 ID40 ID41 ID42 ID43 ID44 ID45 ID46 ID47 ID48 ID49 ID50 ID51 ID52 ID53 ID54 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 40 Operating Channel Value Function ID55 ID56 ID57 ID58 ID59 ID60 ID61 ID62 ID63 ID64 ID65 ID66 Automatic shows 0…7 Standard 8…10 Programme 1 11…20 Programme 2 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 41 61…70 Programme 7 71…80 Programme 8 81…90 Programme 9 91…100 Programme 10 101…109 Programme 11 110…255 None 0…255 Auto programme running speed 0…200 No function 201…220 Motor Reset 221…255 No function Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 42: Technical Specifications

    Power supply Lockable output socket Power Twist TR1 IP65 DMX control XLR chassis socket, 5-pin Power consumption 150 W Supply voltage 100 - 240 V 50/60 Hz Degree of protection IP65 Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 43 Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Design Outdoor housing LED type x-in-1 Base housing Fanless Remote control not possible Wireless DMX Housing colour black Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 44: Plug And Connection Assignment

    Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) unused / second connection (DMX–) unused / second connection (DMX+) Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 45: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 46 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 47: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...

  • Page 48: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 49 Notes Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 50 Notes Typhoon True Kid 720Z RGBW IP65 LED Outdoor PAR...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
