Manual
LED Quad Par XS 7x15W
RGBW 4in1 IP65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED PAR XS 7X15W RGBW IP65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Varytec LED PAR XS 7X15W RGBW IP65

Summary of Contents for Varytec LED PAR XS 7X15W RGBW IP65

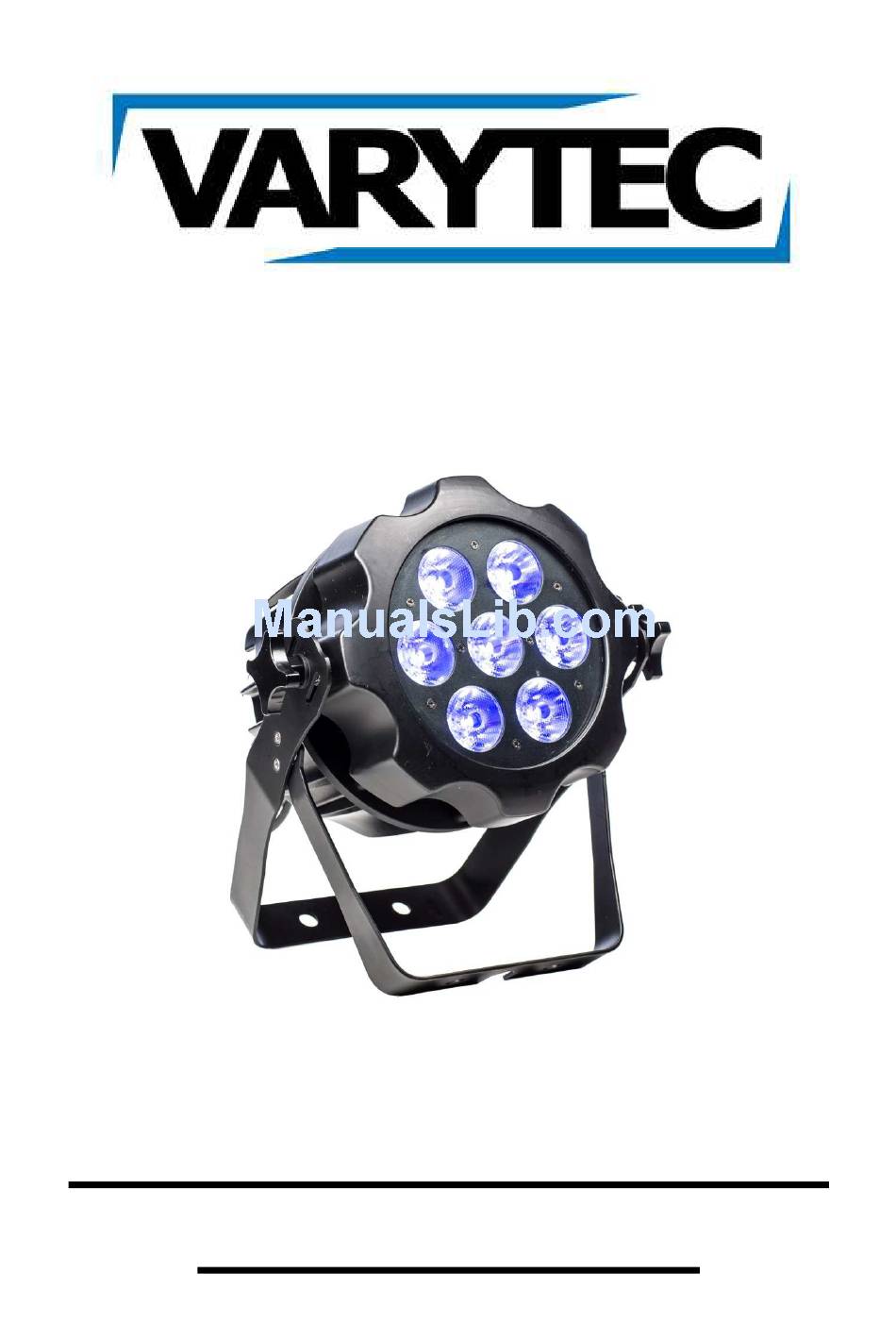

  • Page 1 Manual LED Quad Par XS 7x15W RGBW 4in1 IP65...

  • Page 2: Table Of Contents

    Table of contents Safety instructions ..........................3 1.1. For safe and efficient operation ....................3 Designated use ..........................4 2.1. Overhead installation ....................... 5 Introduction ............................7 Connections ............................. 7 4.1. Electrical connections ......................7 4.2. DMX connections ........................7 4.3.

  • Page 3: Safety Instructions

    1. Safety instructions • This device is suitable for indoor and outdoor use. device is suitable for indoor and outdoor use. • All modifications to the device will void the warranty. All modifications to the device will void the warranty. •...

  • Page 4: Designated Use

    2. Designated use This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230V 50/60 Hz AC voltage and for indoor and outdoor use. Regular breaks during operation increase the lifetime of your device. Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.

  • Page 5: Overhead Installation

    2.1. Overhead installation Overhead installation Danger of life! Danger of life! You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and EN60598-2-17 17 Installations are to carry out by skilled personnel only.
  • Page 6 The maximum drop exceed must not exceed 20cm. A safety rope once exposed to failing load or damaged may not be used furthermore. Adjust the desired inclination angle via the mounting bracket and tighten the screw. 6 / 16...

  • Page 7: Introduction

    3. Introduction Thank you for buying the LED QUAD Par XS 7x15W RGBW 4in1 IP65. It is a powerful device. For a successful installation and operation, please read this manual carefully. 4. Connections 4.1. Electrical connections If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the mains with the enclosed power cable and plug.

  • Page 8: Control

    5. Control Press MENU, with UP/DOWN you can choose the required point of menu. Confirm with ENTER. You can make your settings also with UP/DOWN and conform them with ENTER. 5.1. Structure of the menu Menu Submenu 1 Submenu 2 Submenu 3 Function d001 –...
  • Page 9 B000 – B255 (De-)Activates the keylock. To unlock you have to enter a password (ENTER On / Off – UP – DOWN – UP – DOWN – ENTER). R000 – R255 Dimmer red 0 – 100%. G000 – G255 Dimmer green 0 – 100%. B000 –...

  • Page 10: Dmx Chart

    6. DMX chart 6.1. DMX mode STAG (11 channels) Channel Value from Value to Function Dimmer Dimmer red 0 – 100% Speed slow – fast channel 8 for value 110 – 255 Dimmer green 0 – 100% Fade time slow – fast channel 8 for value 110 – 255 Dimmer blue 0 –...
  • Page 11 RGBW White 1 White 2 White 3 White 4 White 5 White 6 White 7 White 8 White 9 White 10 White 11 Speed slow – fast channel 6 No function Strobe slow – fast No function Automatic program 1 Automatic program 2 Automatic program 3 Automatic program 4...

  • Page 12: Dmx Mode Arc.1 (3 Channels)

    40 – 49 ID 4 ID 25 ID 48 50 – 59 ID 5 ID 26 ID 49 60 – 69 ID 6 ID 27 ID 50 70 – 79 ID 7 ID 28 ID 51 80 – 89 ID 8 ID 29 ID 52 90 –...

  • Page 13: Dmx Mode Ar2.D (5 Channel)

    6.5. DMX mode Ar2.d (5 channel) Channel Value from Value to Function Dimmer 0 – 100% Dimmer red 0 – 100% Dimmer green 0 -100% Dimmer blue 0 - 100% Dimmer white 0 – 100% 6.6. DMX mode Ar2.S (6 channels) Channel Value from Value to...

  • Page 14: Technical Data

    7. Technical data Power supply Voltage 100 – 240 V AC / 50-60 Hz Power consumption max. 120 W Light source LM type LED 4in1 Color spectrum RGBW Power 105 W Number / Power 7 x 15 W Optics Beam angle 8°...
  • Page 15 15 / 16...
  • Page 16 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 16 / 16...
